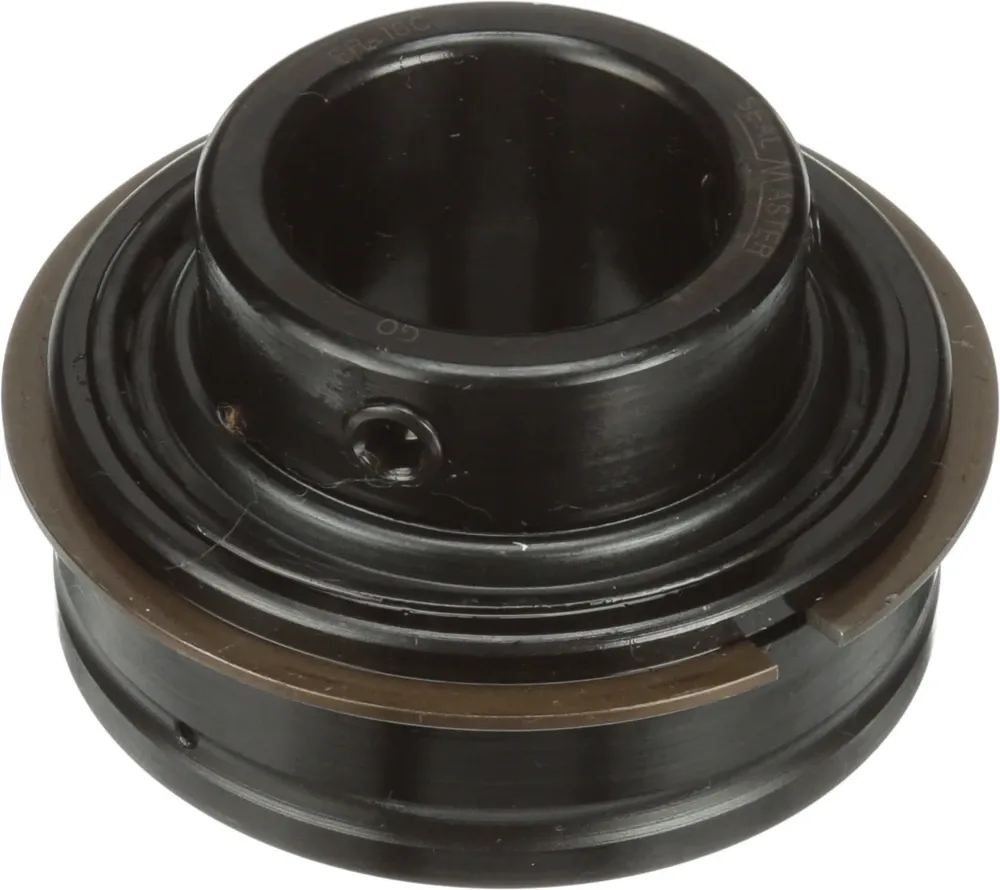

SEALMASTER ER-46C Ball Insert Bearing, Cylindrical Bore, 2-7/8 Inch Inside Dia.
Item: BE7DKZModel: ER-46C
7 In Stock
Ships within 2 days via
€790.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Shape | Straight |
| Cage Material | Brass |
| Centerline To Front Face | 1 3/4" |
| Duty Series | Standard |
| Dynamic Load Capacity | 14839 lbs. |
| Dynamic Radial Load Capacity | 14839 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 5.56" |
| Housing Type | Insert Only |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 3 1/16" |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Inside Dia. | 2 7/8" |
| Inside Ring Outside Dia. | 3.641" |
| Internal Clearance | Standard |
| Length | 5 1/2" |
| Locking Device | Single Set Screw |
| Locking Type | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 250°F |
| Max. Speed | 2100 RPM |
| Measure Units | Imperial |
| Misalignment Capability | None |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1 1/2" |
| Outer Ring Land Profile | Standard |
| Outside Race Outside Dia. | 5.1181" |
| Overall Width | 3.063" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radius | 2/25" |
| Retainer Type | Brass |
| Rolling Element | Ball |
| Seal Flinger | No |
| Seal Type | Single Lip Contact |
| Shaft Size | 2 7/8" |
| Static Radial Load Capacity | 11224 lbs. |
| Width | 3.13" |
Shipping Info:
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 14.12 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 7.78 |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Dynamic Radial Load Capacity | Outside Race Outside Dia. | Duty Series | Htc | Inner Race Length | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER-212TM | - | Standard Felt Seal | 11789 lbs. | - | - | - | - | - | €234.29 | |
 |
ER-16TC | 1" | Single Lip Contact Seal | 2801 lbs. | 2.047" | Standard Series | 8482.10.5048 | 1.438" | 1.438" | €88.92 | |
 |
ER-34 | 2 1/8" | Felt Labyrinth Seal | 9752 lbs. | 3.937" | Standard Series | 8482.10.5052 | 2.188" | 2.188" | €544.00 | |
 |
ER-32R | 2" | Felt Labyrinth Seal | 9752 lbs. | 3.543" | Standard Series | 8482.10.5052 | 2.031" | 2.031" | €394.62 | |
 |
ER-12C | 3/4" | Single Lip Contact Seal | 2611 lbs. | 1.85" | Standard Series | 8482.10.5048 | 1.219" | 1.219" | €54.47 | |
 |
ER-20C | 1 1/4" | Single Lip Contact Seal | 5782 lbs. | 2.836" | Standard Series | 8482.10.5052 | 1.688" | 1.688" | €84.59 | |
 |
ER-16T DRT | - | - | - | - | - | - | - | - | €147.00 |
