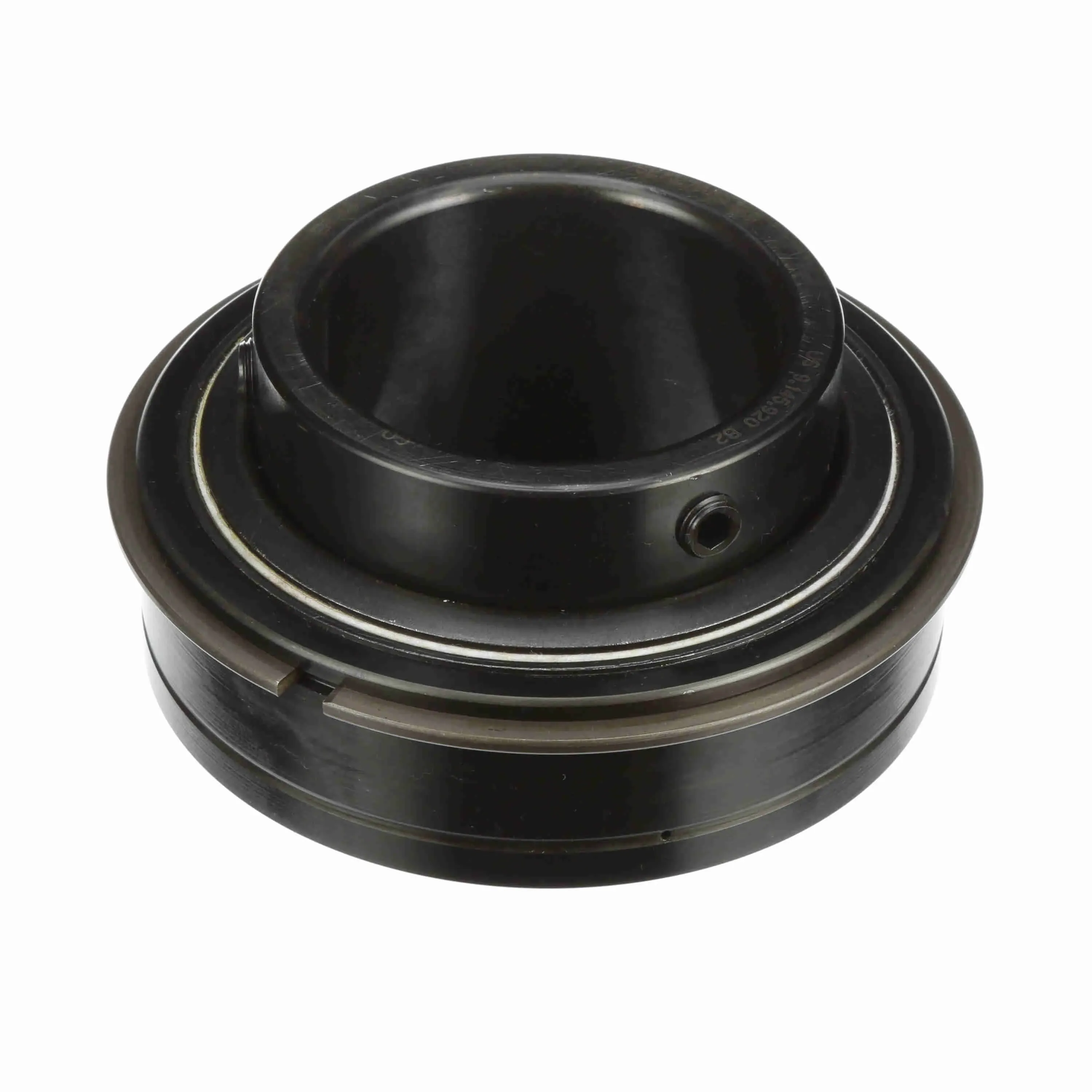

SEALMASTER ER-46 701090 Insert Bearing, 2 7/8 Inch Bore, 5 7/64 Inch OD, 1.5 Inch Outer Ring Wide

Item: BE6KCMModel: ER-46Cross Ref: 44A685 / 701090

7 In Stock

Ships within 2 days via

~~€1,290.06~~

10.00% off

€1,161.05 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Abec Rating	1
Ability To Relubricate	Yes
Ball Material	Alloy Steel
Ball Material Grade	52100
Bearing Industry Number	ER-46
Bearing Insert Finish	Black Oxide
Bearing Insert Shape	Cylindrical
Bearing Insert Type	Radial/Deep Groove Ball
Bore Dia.	2 7/8"
Bore Diameter	2 7/8"
Bore Diameter Tolerance	-0.001" to 0"
Bore Shape	Straight
Cage Material	Brass
Centerline To Front Face	1 3/4"
Closure	Double Sealed
Duty Series	Standard
Duty/series	Standard Series
Dynamic Load Capacity	14839 lbs.
Dynamic Radial Load Capacity	14839 lbf.
End Cap	No
Expansion	No
Features	120° Spacing Setscrew Lock With Diamond Faceted Setscrews, 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only
Finish	Black Oxide
For Environment	Highly Dusty And Dirty
Grade	Grade 52100
Grease Type	Lithium Complex, Ep, Nlgi#2
Height	5.56"
Htc	8482.10.5056
I.d.	2 7/8"
Includes	Retaining Ring, Set Screws
Inner Race Heat Treat Method	Zone Hardened
Inner Race Profile	Wide Inner Ring
Inner Ring Outside Dia.	3.641"
Inner Ring Outside Diameter	3.641"
Inner Ring Width	3.06"
Inner-race Heat-treat Method	Zone Hardened
Insert Material	Steel
Insert Material Finish	Black Oxide
Insert Material Grade	52100
Internal Clearance	Standard
Length	5 1/2"
Load Direction	Radial
Locking Device	Single Set Screw
Lubricant Material	Nlgi #2 Equivalent
Lubrication Openings	Grease Fitting
Lubrication Type	Lithium Complex NLGI 2 Grease
Max. Speed	2450 RPM
Maximum Temperature	220°F
Minimum Temperature	-20°F
Misalignment Type	Static Only
Outer Race Od	5.118"
Outer Race Outside Dia.	5.1181"
Outer Race Profile	Cylindrical
Outer Race Width	1 1/2"
Outer Ring Land Profile	Standard
Outer Ring Width	1.5"
Outside Diameter	5 7/64"
Overall Width	3.063"
Platform	Gold Line Ball Bearing
Radius	2/25"
Ring End To Center Width	1 3/4"
Ring Material	Alloy Steel
Ring Material Grade	Grade 52100
Rolling Element Material	Alloy Steel
Rolling Element Material Grade	Grade 52100
Rolling Element Rows	1
Seal Flinger	Yes
Seal Material	Felt
Set Screw Thread Length	0.438"
Set Screw Thread Size	7/16"-20
Set Screw Thread Type	UNF
Shaft Locking Type	Set Screws
Shaft Size	2 7/8"
Standards	Iso Certified 100-220
Static Radial Load Capacity	11224 lbf.
Width	3.13"

Shipping Info:

Ship weight (kg)	2.97
Ship height (cm)	7.95
Ship length (cm)	13.97
Ship width (cm)	14.12
Country of Origin	US

Product Variants

Model	Bore Dia.	Outer Ring Width	Outside Dia.	Dynamic Radial Load Capacity	Max. Speed	Overall Width	Seal Type	Cage Material	Price
ER-212TM	-	-	-	-	-	-	-	-	€234.29
ER-16TC	1"	-	-	2801 lbs.	6350 RPM	1.438"	Single Lip Contact Seal	Polyphenylene Sulfide	€88.92
ER-34	2 1/8"	1.188"	-	9752 lbs.	3250 RPM	2.188"	Felt Labyrinth Seal	Polyphenylene Sulfide	€544.00
ER-32R	2"	1.125"	-	9752 lbs.	3550 RPM	2.031"	Felt Labyrinth Seal	Polyphenylene Sulfide	€394.62
ER-12C	3/4"	-	-	2611 lbs.	6450 RPM	1.219"	Single Lip Contact Seal	Polyphenylene Sulfide	€54.47
ER-20C	1 1/4"	-	-	5782 lbs.	4650 RPM	1.688"	Single Lip Contact Seal	Polyphenylene Sulfide	€84.59
ER-16T DRT	-	-	-	-	-	-	-	-	€126.00
