SEALMASTER ER-39T SEALMASTER ER-39T | BD7WMU

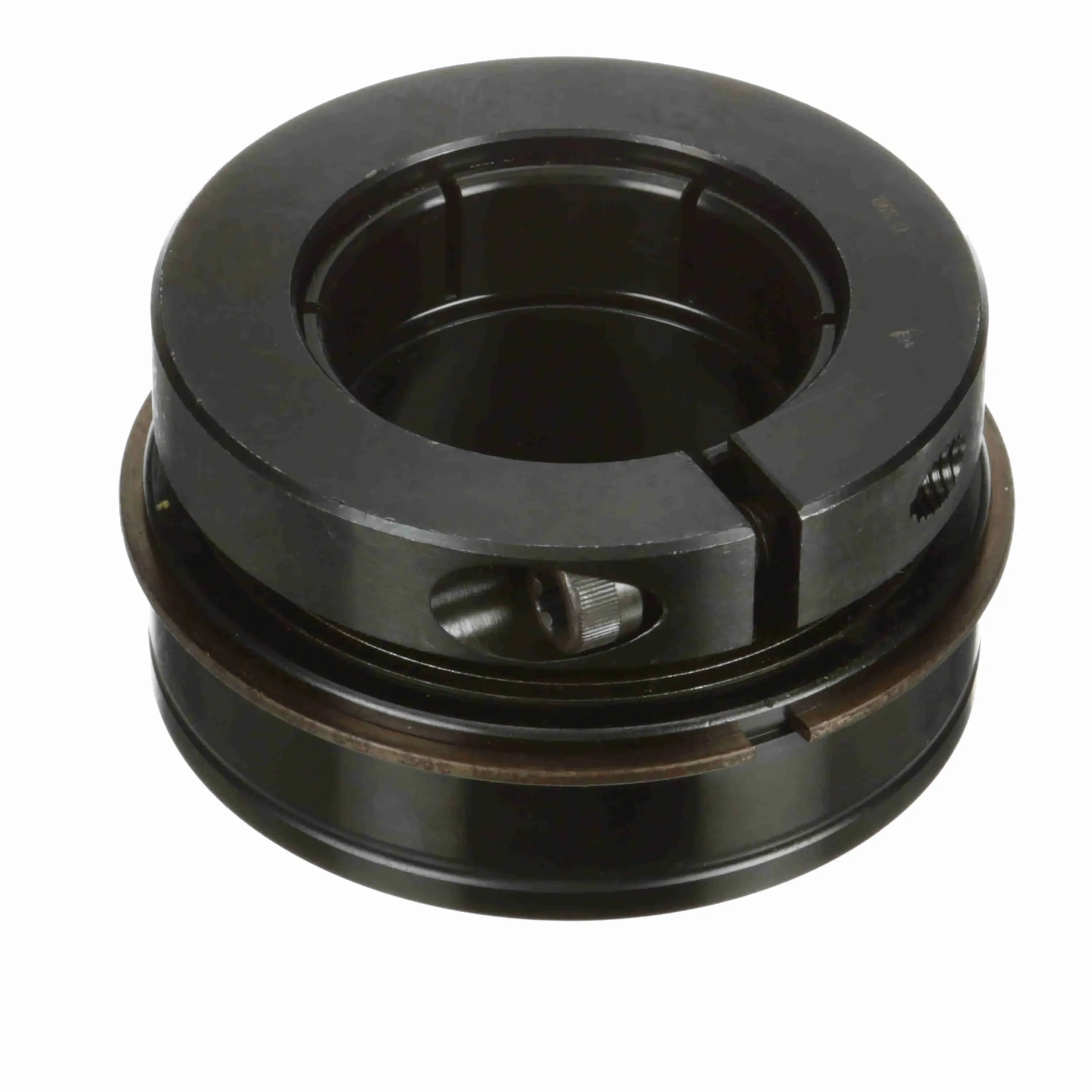

SEALMASTER ER-39T 705585 Ball Insert Bearing, Cylindrical Bore, 2-7/16 Inch Inside Dia.

Item: BD7WMUModel: ER-39TCross Ref: 705585
Check Availability
In Stock

Get it by Thursday, Feb 26

€265.89 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To Relubricate Yes
Bearing Insert Finish Black Oxide
Bore Dia. 2 7/16"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Centerline To Front Face 1 5/8"
Collar Outer Diameter 2.984"
Duty/series Standard Series
Dynamic Radial Load Capacity 11789 lbs.
End Cap No
Expansion No
Housing Type Insert Er Style
Htc 8482.10.5056
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 2 5/8"
Inner Race Profile Wide Inner Ring
Inner Ring Outside Diameter 2.984"
Insert Material Steel
Insert Material Finish Black Oxide
Insert Material Grade 52100
Internal Clearance Standard
Locking Type Concentric
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 4100 RPM
Measure Units Inch
Misalignment Type Static Only
Outer Race Od 4.331"
Outer Race Profile Cylindrical
Outer Race Width 1 1/4"
Outer Ring Land Profile Tapered Lands
Overall Width 2 5/8"
Platform Gold Line Ball Bearing
Precision Rating Abec 1
Radial Static Load Capacity 8150 lbs.
Radius 2/25"
Retainer Type Land Riding Retainer
Rolling Element Ball Bearing
Seal Type Felt Labyrinth Seal

Shipping Info:

Ship weight (kg) 2.28
Ship height (cm)12.07
Ship length (cm)6.68
Ship width (cm)12.22
Country of OriginMX

Product Variants

ProductModelBore Dia.Outer Ring WidthOutside Dia.Dynamic Radial Load CapacityMax. SpeedOverall WidthSeal TypeCage MaterialPrice
SEALMASTER ER-16 Insert Bearing, ER-16, 1 Inch Size Bore, 2 3/64 Inch Size OD | CU2KWF 44A660 ER-161"3/4"2.047"2801 lbf.6350 RPM1 3/8"Felt Labyrinth SealPolyphenylene Sulfide€110.82
SEALMASTER ER-23 Insert Bearing, ER-23, 1 7/16 Inch Size Bore, 2 53/64 Inch Size OD | CU2KWG 44A667 ER-231 7/16"0.938"2.828"5782 lbf.4650 RPM1.688"Felt Labyrinth SealPolyphenylene Sulfide€163.02
SEALMASTER ER-24 Insert Bearing, ER-24, 1 1/2 Inch Size Bore, 3 9/64 Inch Size OD | CU2KWH 44A668 ER-241 1/2"1.094"3.141"5307 lbf.4150 RPM1.938"Felt Labyrinth SealPolyphenylene Sulfide€183.78
SEALMASTER ER-25 Insert Bearing, ER-25, 1 9/16 Inch Size Bore, 3 9/64 Inch Size OD | CU2KWJ 44A669 ER-251 9/16"1.094"3.141"7340 lbs.4150 RPM1.938"--€355.30
SEALMASTER ER-40 Insert Bearing, ER-40, 2 1/2 Inch Size Bore, 4 29/32 Inch Size OD | CU2KWK 44A683 ER-402 1/2"1 3/8"4.906"13971 lbs.2500 RPM2 3/4"-Brass€807.63
SEALMASTER ER-48 Insert Bearing, ER-48, 3 Inch Size Bore, 5 1/2 Inch Size OD | CU2KWL 44A687 ER-483"1.688"5 1/2"17412 lbs.2250 RPM3 1/4"-Brass€1,329.77
SEALMASTER ER-52 Insert Bearing, ER-52, 3 1/4 Inch Size Bore, 5 57/64 Inch Size OD | CU2KWM 44A689 ER-523 1/4"1.938"-18681 lbs.2125 RPM3 3/8"-Brass€1,605.29
