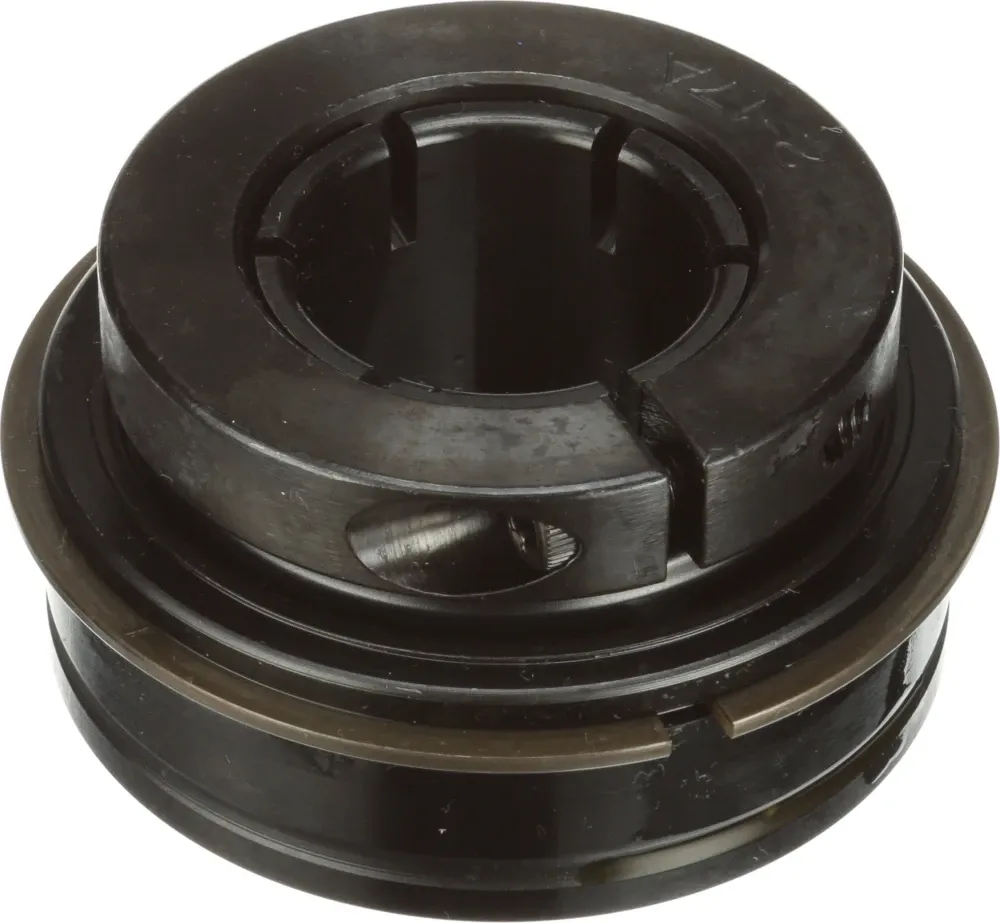

SEALMASTER ER-36TC Insert Bearing, 2.25 Inch Dia, Skwezloc Locking, Black Oxide, Single Lip Contact
Get it by Friday, Feb 27
€432.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Duty Series | Standard |
| Dynamic Load Capacity | 11789 lbs. |
| Finish | Black Oxide |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Housing Type | Insert Only |
| Inner Race Length | 2 5/8" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert Material | Steel |
| Locking Device | Skwezloc Concentric |
| Max. Operating Temperature | 250°F |
| Outer Race Outside Dia. | 4.3307" |
| Outer Race Width | 1 1/4" |
| Retainer Type | Brass |
| Rolling Element | Ball |
| Seal Flinger | No |
| Seal Type | Single Lip Contact |
| Shaft Size | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 2.03 |
| Ship height (cm) | 12.22 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 6.68 |
Product Variants
| Product | Model | Bore Dia. | Outer Ring Width | Outside Dia. | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Seal Type | Cage Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER-16 | 1" | 3/4" | 2.047" | 2801 lbf. | 6350 RPM | 1 3/8" | Felt Labyrinth Seal | Polyphenylene Sulfide | €110.82 | |
 |
ER-23 | 1 7/16" | 0.938" | 2.828" | 5782 lbf. | 4650 RPM | 1.688" | Felt Labyrinth Seal | Polyphenylene Sulfide | €163.02 | |
 |
ER-24 | 1 1/2" | 1.094" | 3.141" | 5307 lbf. | 4150 RPM | 1.938" | Felt Labyrinth Seal | Polyphenylene Sulfide | €183.78 | |
 |
ER-25 | 1 9/16" | 1.094" | 3.141" | 7340 lbs. | 4150 RPM | 1.938" | - | - | €355.30 | |
 |
ER-40 | 2 1/2" | 1 3/8" | 4.906" | 13971 lbs. | 2500 RPM | 2 3/4" | - | Brass | €807.63 | |
 |
ER-48 | 3" | 1.688" | 5 1/2" | 17412 lbs. | 2250 RPM | 3 1/4" | - | Brass | €1,329.77 | |
 |
ER-52 | 3 1/4" | 1.938" | - | 18681 lbs. | 2125 RPM | 3 3/8" | - | Brass | €1,605.29 |
