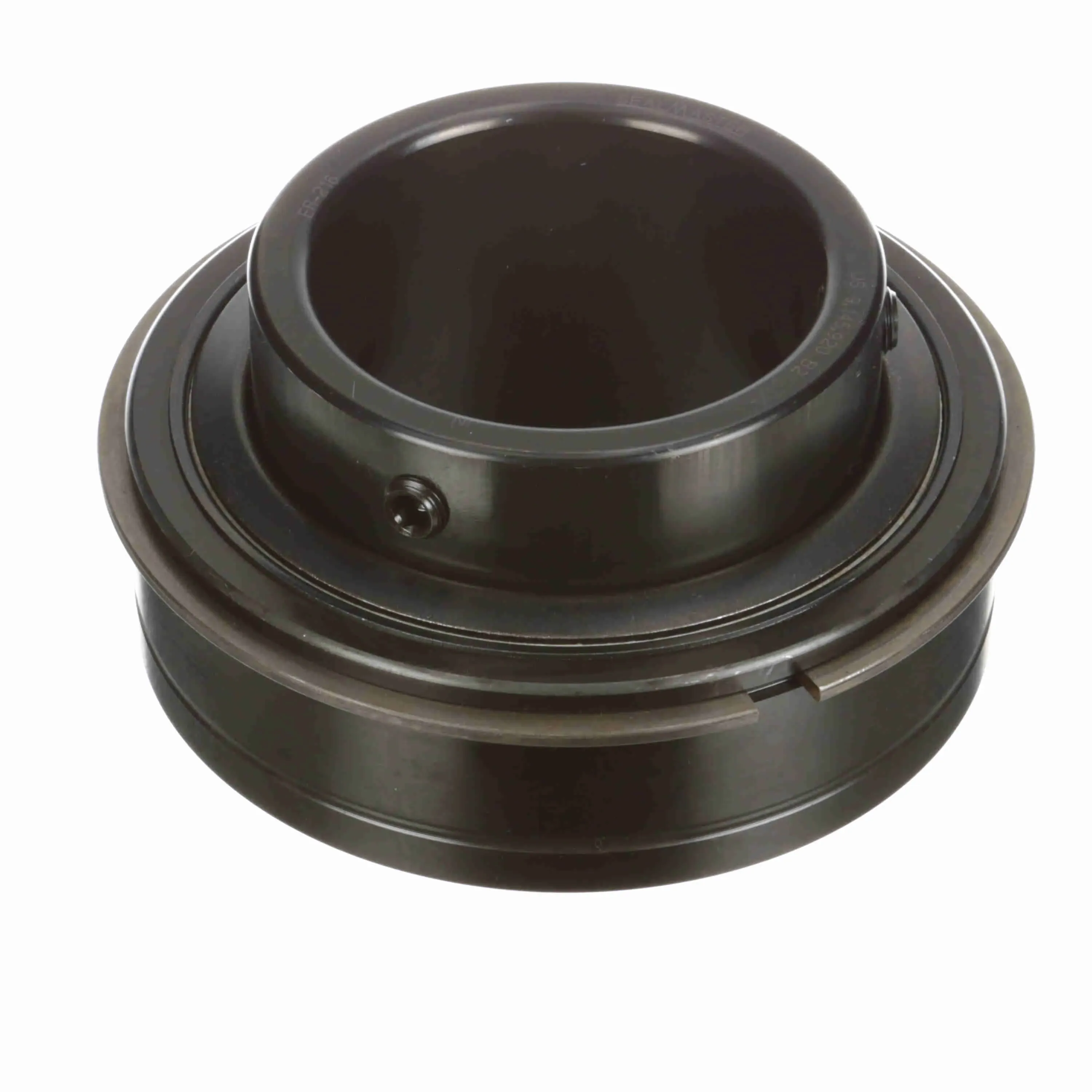

SEALMASTER ER-216 713618 Ball Insert Bearing, Cylindrical Bore, 80 mm Inside Dia., Standard Duty
Get it by Wednesday, Feb 25
€984.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 80 mm |
| Bore Shape | Straight |
| Cage Material | Brass |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Load Capacity | 17412 lbs. |
| Dynamic Radial Load Capacity | 17412 lbs. |
| End Cap | No |
| Expansion | No |
| Finish | Black Oxide |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 3.63" |
| Htc | 8482.10.5056 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Profile | Wide Inner Ring |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Length | 5 3/4" |
| Locking Device | Single Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2250 RPM |
| Measure Units | Metric |
| Misalignment Type | Static Only |
| Outer Race Od | 5.5118" |
| Outer Race Outside Dia. | 140 mm |
| Outer Race Profile | Cylindrical |
| Outer Ring Land Profile | Tapered Lands |
| Overall Width | 82.6 mm |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 13174 lbs. |
| Radius | 3/25" |
| Seal Flinger | Yes |
| Set Screw Thread Size | 7/16"-20 |
| Set Screw Thread Type | UNF |
| Shaft Size | 80 mm |
| Width | 5.63" |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 9.22 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Outer Ring Width | Outside Dia. | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Seal Type | Cage Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER-16 | 1" | 3/4" | 2.047" | 2801 lbf. | 6350 RPM | 1 3/8" | Felt Labyrinth Seal | Polyphenylene Sulfide | €110.82 | |
 |
ER-23 | 1 7/16" | 0.938" | 2.828" | 5782 lbf. | 4650 RPM | 1.688" | Felt Labyrinth Seal | Polyphenylene Sulfide | €163.02 | |
 |
ER-24 | 1 1/2" | 1.094" | 3.141" | 5307 lbf. | 4150 RPM | 1.938" | Felt Labyrinth Seal | Polyphenylene Sulfide | €183.78 | |
 |
ER-25 | 1 9/16" | 1.094" | 3.141" | 7340 lbs. | 4150 RPM | 1.938" | - | - | €355.30 | |
 |
ER-40 | 2 1/2" | 1 3/8" | 4.906" | 13971 lbs. | 2500 RPM | 2 3/4" | - | Brass | €807.63 | |
 |
ER-48 | 3" | 1.688" | 5 1/2" | 17412 lbs. | 2250 RPM | 3 1/4" | - | Brass | €1,329.77 | |
 |
ER-52 | 3 1/4" | 1.938" | - | 18681 lbs. | 2125 RPM | 3 3/8" | - | Brass | €1,605.29 |
