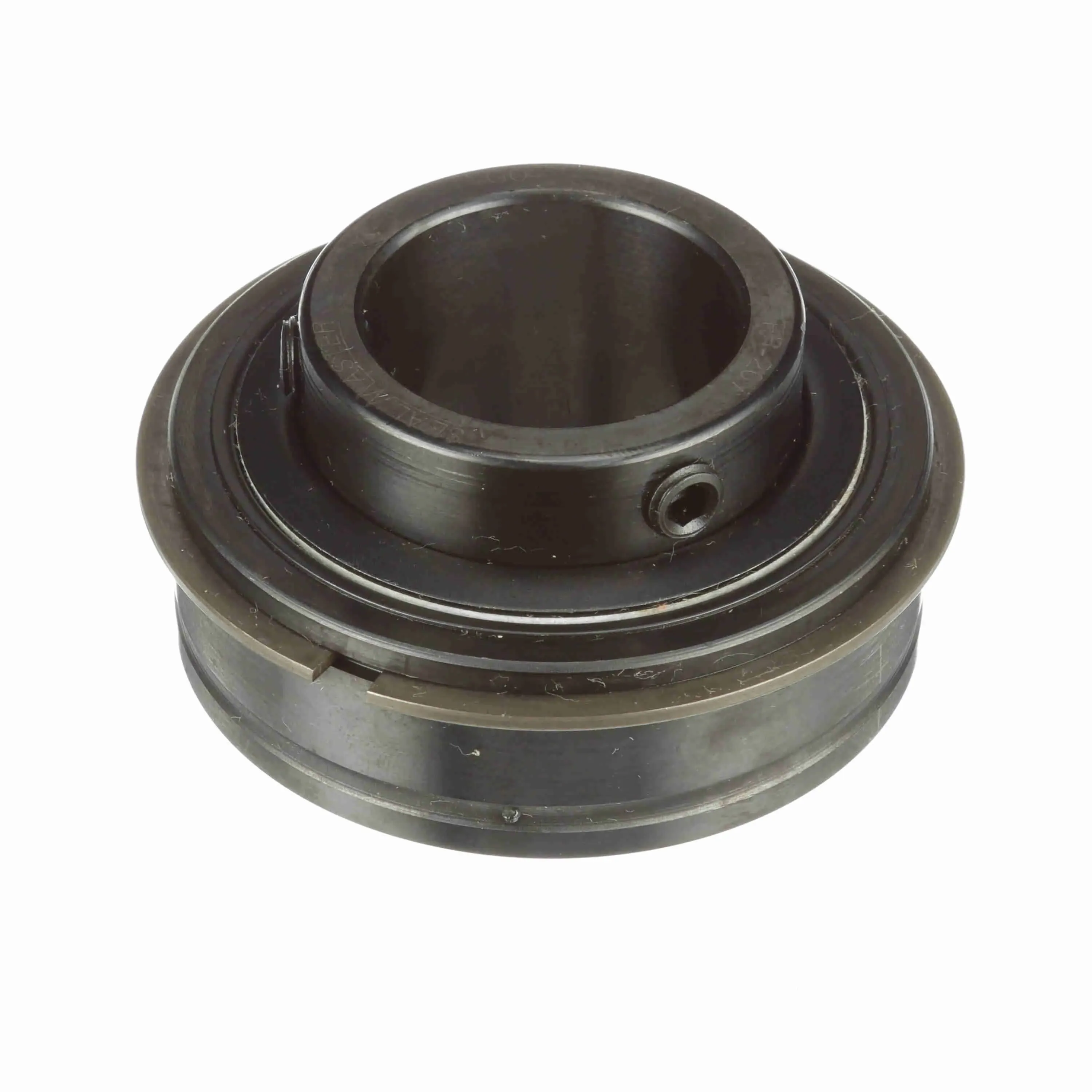

SEALMASTER ER-207 701064 Insert Bearing, 35mm Bore, Wide Inner Ring, 24mm Outer Race Width, 72mm Out Dia, Set Screw
Item: BD7FDBModel: ER-207Cross Ref: 701064
7 In Stock
Ships within 2 days via
€200.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 35 mm |
| Bore Shape | Straight |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Load Capacity | 5782 lbs. |
| Dynamic Radial Load Capacity | 5782 lbs. |
| End Cap | No |
| Expansion | No |
| Finish | Black Oxide |
| Grade | Grade 52100 |
| Grease Fitting Thread Length | 0.31" |
| Grease Fitting Thread Size | 5/16"-24 |
| Grease Fitting Thread Type | UNF |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 3.13" |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Profile | Wide Inner Ring |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Length | 1 3/4" |
| Locking Device | Single Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 4650 RPM |
| Measure Units | Metric |
| Misalignment Type | Static Only |
| Outer Race Od | 2.8364" |
| Outer Race Outside Dia. | 72 mm |
| Outer Race Profile | Cylindrical |
| Outer Ring Land Profile | Tapered Lands |
| Overall Width | 42.9 mm |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 3493 lbs. |
| Radius | 1/25" |
| Seal Flinger | Yes |
| Set Screw Thread Length | 0.31" |
| Set Screw Thread Size | 5/16"-24 |
| Set Screw Thread Type | UNF |
| Shaft Size | 35 mm |
| Width | 3.13" |
Shipping Info:
| Ship weight (kg) | 0.57 |
| Ship height (cm) | 7.95 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 7.95 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Outer Ring Width | Outside Dia. | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Seal Type | Cage Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER-212TM | - | - | - | - | - | - | - | - | €234.29 | |
 |
ER-16TC | 1" | - | - | 2801 lbs. | 6350 RPM | 1.438" | Single Lip Contact Seal | Polyphenylene Sulfide | €88.92 | |
 |
ER-34 | 2 1/8" | 1.188" | - | 9752 lbs. | 3250 RPM | 2.188" | Felt Labyrinth Seal | Polyphenylene Sulfide | €544.00 | |
 |
ER-32R | 2" | 1.125" | - | 9752 lbs. | 3550 RPM | 2.031" | Felt Labyrinth Seal | Polyphenylene Sulfide | €394.62 | |
 |
ER-12C | 3/4" | - | - | 2611 lbs. | 6450 RPM | 1.219" | Single Lip Contact Seal | Polyphenylene Sulfide | €54.47 | |
 |
ER-20C | 1 1/4" | - | - | 5782 lbs. | 4650 RPM | 1.688" | Single Lip Contact Seal | Polyphenylene Sulfide | €84.59 | |
 |
ER-16T DRT | - | - | - | - | - | - | - | - | €126.00 |
