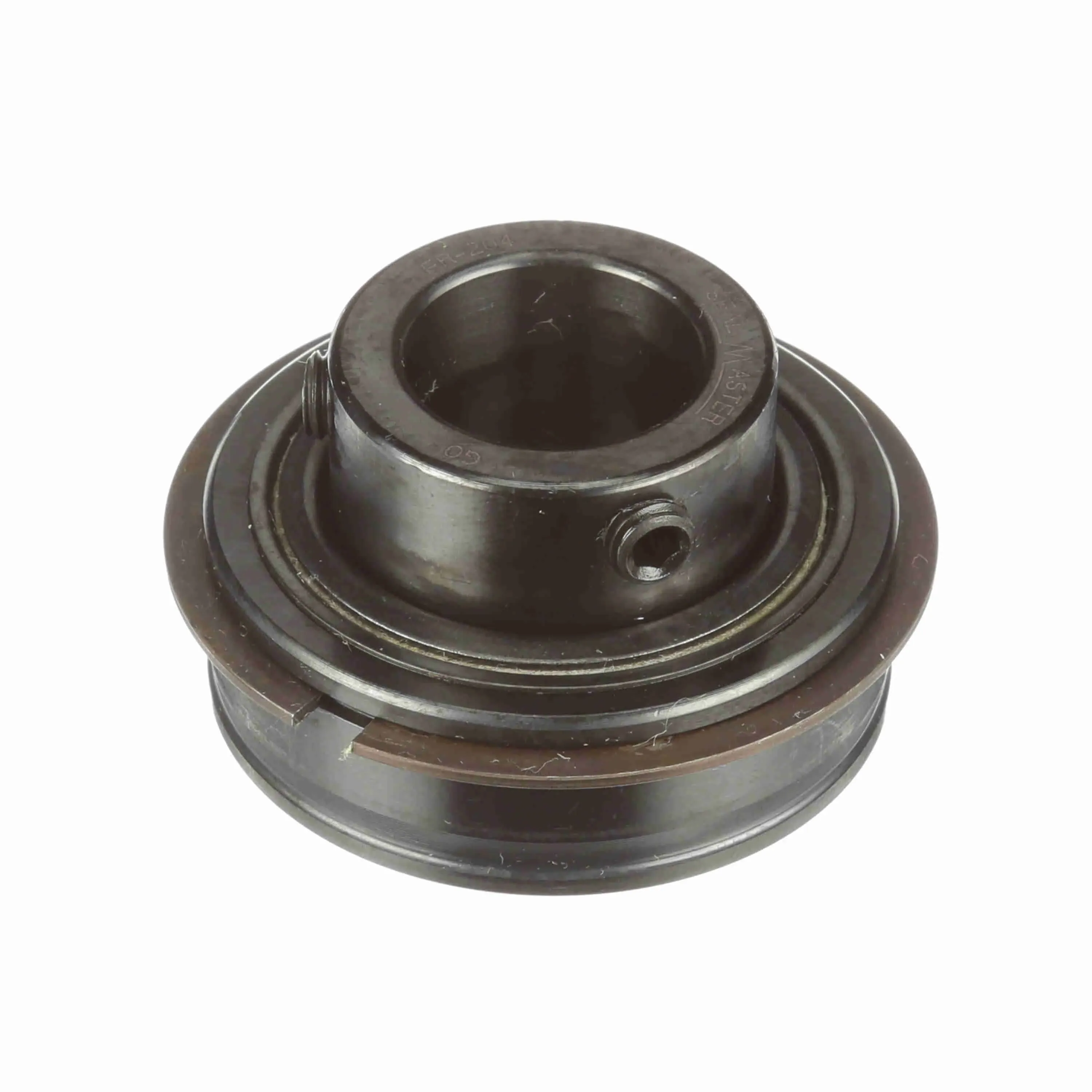

SEALMASTER ER-204 701054 Insert Bearing, 20mm Bore, Wide Inner Ring, 16mm Outer Race Width, 47mm Out Dia, Set Screw
Item: BD8QNPModel: ER-204Cross Ref: 701054
7 In Stock
Ships within 2 days via
€126.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 20 mm |
| Bore Shape | Straight |
| Duty Series | Standard , Standard Series |
| Dynamic Load Capacity | 2611 lbs. |
| Dynamic Radial Load Capacity | 2611 lbs. |
| End Cap | No |
| Expansion | No |
| Finish | Black Oxide |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 2.38" |
| Htc | 8482.10.5048 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Length | 2.38" |
| Locking Device | Single Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 7300 RPM |
| Measure Units | Metric |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Race Profile | Cylindrical |
| Outer Ring Land Profile | Tapered Lands |
| Outside Race Outside Dia. | 1.8504" , 47 mm |
| Overall Width | 31 mm |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 1444 lbs. |
| Radius | 1/25" |
| Seal Flinger | Yes |
| Set Screw Thread Size | 1/4"-28 |
| Shaft Size | 20 mm |
| Width | 1 11/25" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 3.66 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 6.05 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Dynamic Radial Load Capacity | Outside Race Outside Dia. | Duty Series | Htc | Inner Race Length | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER-212TM | - | Standard Felt Seal | 11789 lbs. | - | - | - | - | - | €234.29 | |
 |
ER-16TC | 1" | Single Lip Contact Seal | 2801 lbs. | 2.047" | Standard Series | 8482.10.5048 | 1.438" | 1.438" | €88.92 | |
 |
ER-34 | 2 1/8" | Felt Labyrinth Seal | 9752 lbs. | 3.937" | Standard Series | 8482.10.5052 | 2.188" | 2.188" | €544.00 | |
 |
ER-32R | 2" | Felt Labyrinth Seal | 9752 lbs. | 3.543" | Standard Series | 8482.10.5052 | 2.031" | 2.031" | €394.62 | |
 |
ER-12C | 3/4" | Single Lip Contact Seal | 2611 lbs. | 1.85" | Standard Series | 8482.10.5048 | 1.219" | 1.219" | €54.47 | |
 |
ER-20C | 1 1/4" | Single Lip Contact Seal | 5782 lbs. | 2.836" | Standard Series | 8482.10.5052 | 1.688" | 1.688" | €84.59 | |
 |
ER-16T DRT | - | - | - | - | - | - | - | - | €147.00 |
