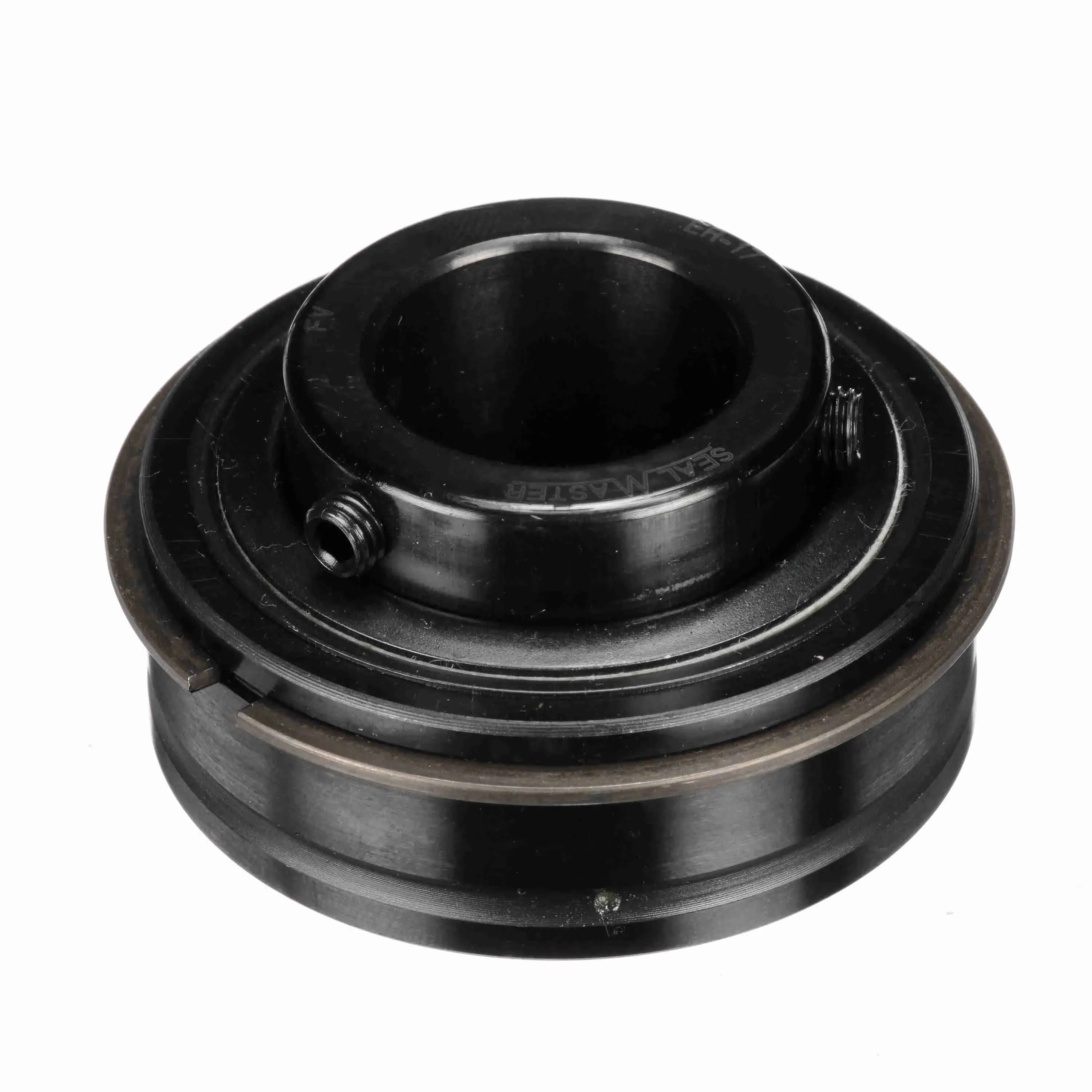

SEALMASTER ER-17 701059 Insert Bearing, 1 1/16 Inch Bore, 2 7/16 Inch OD, 0.875 Inch Outer Ring Wide
Item: BD6UVFModel: ER-17Cross Ref: 44A661 / 701059
7 In Stock
Ships within 2 days via
5.00% off
€234.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Abec Rating | 1 |
| Ability To Relubricate | Yes |
| Ball Material | Alloy, Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | ER-17 |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Shape | Cylindrical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. Tolerance | -0.0005" to 0" |
| Bore Shape | Straight |
| Centerline To Front Face | 7/8" |
| Closure | Double Sealed |
| Duty Series | Standard , Standard Series |
| Dynamic Load Capacity | 4381 lbs. |
| Dynamic Radial Load Capacity | 4381 lbf. |
| End Cap | No |
| Expansion | No |
| Features | 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only |
| Finish | Black Oxide |
| For Environment | Highly Dusty And Dirty |
| Grade | Grade 52100 |
| Grease Fitting Thread Length | 0.31" |
| Grease Fitting Thread Size | 3/8"-24 |
| Grease Fitting Thread Type | UNF |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 2 3/4" |
| Htc | 8482.10.5052 |
| Included | Retaining Ring, Set Screws |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1 1/2" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Width | 1 1/2" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Inside Dia. | 1 1/16" |
| Inside Ring Outside Dia. | 1.594" |
| Internal Clearance | Standard |
| Length | 2 3/4" |
| Load Direction | Radial |
| Locking Device | Single Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 5450 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 7/8" |
| Outer Ring Land Profile | Tapered Lands |
| Outer Ring Width | 0.875" |
| Outside Dia. | 2 7/16" |
| Outside Race Outside Dia. | 2.4409" , 2.441" |
| Overall Width | 1 1/2" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 2567 lbf. |
| Radius | 1/25" |
| Ring End To Center Width | 7/8" |
| Ring Material | Alloy, Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Set Screw Thread Length | 0.313" |
| Set Screw Thread Size | 1/4"-28 |
| Set Screw Thread Type | UNF |
| Shaft Locking Type | Set Screw |
| Shaft Size | 1 1/16" |
| Static Radial Load Capacity | 2567 lbf. |
| Width | 1 14/25" |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 3.96 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Dynamic Radial Load Capacity | Outside Race Outside Dia. | Duty Series | Htc | Inner Race Length | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER-212TM | - | Standard Felt Seal | 11789 lbs. | - | - | - | - | - | €234.29 | |
 |
ER-16TC | 1" | Single Lip Contact Seal | 2801 lbs. | 2.047" | Standard Series | 8482.10.5048 | 1.438" | 1.438" | €88.92 | |
 |
ER-34 | 2 1/8" | Felt Labyrinth Seal | 9752 lbs. | 3.937" | Standard Series | 8482.10.5052 | 2.188" | 2.188" | €544.00 | |
 |
ER-32R | 2" | Felt Labyrinth Seal | 9752 lbs. | 3.543" | Standard Series | 8482.10.5052 | 2.031" | 2.031" | €394.62 | |
 |
ER-12C | 3/4" | Single Lip Contact Seal | 2611 lbs. | 1.85" | Standard Series | 8482.10.5048 | 1.219" | 1.219" | €54.47 | |
 |
ER-20C | 1 1/4" | Single Lip Contact Seal | 5782 lbs. | 2.836" | Standard Series | 8482.10.5052 | 1.688" | 1.688" | €84.59 | |
 |
ER-16T DRT | - | - | - | - | - | - | - | - | €147.00 |
