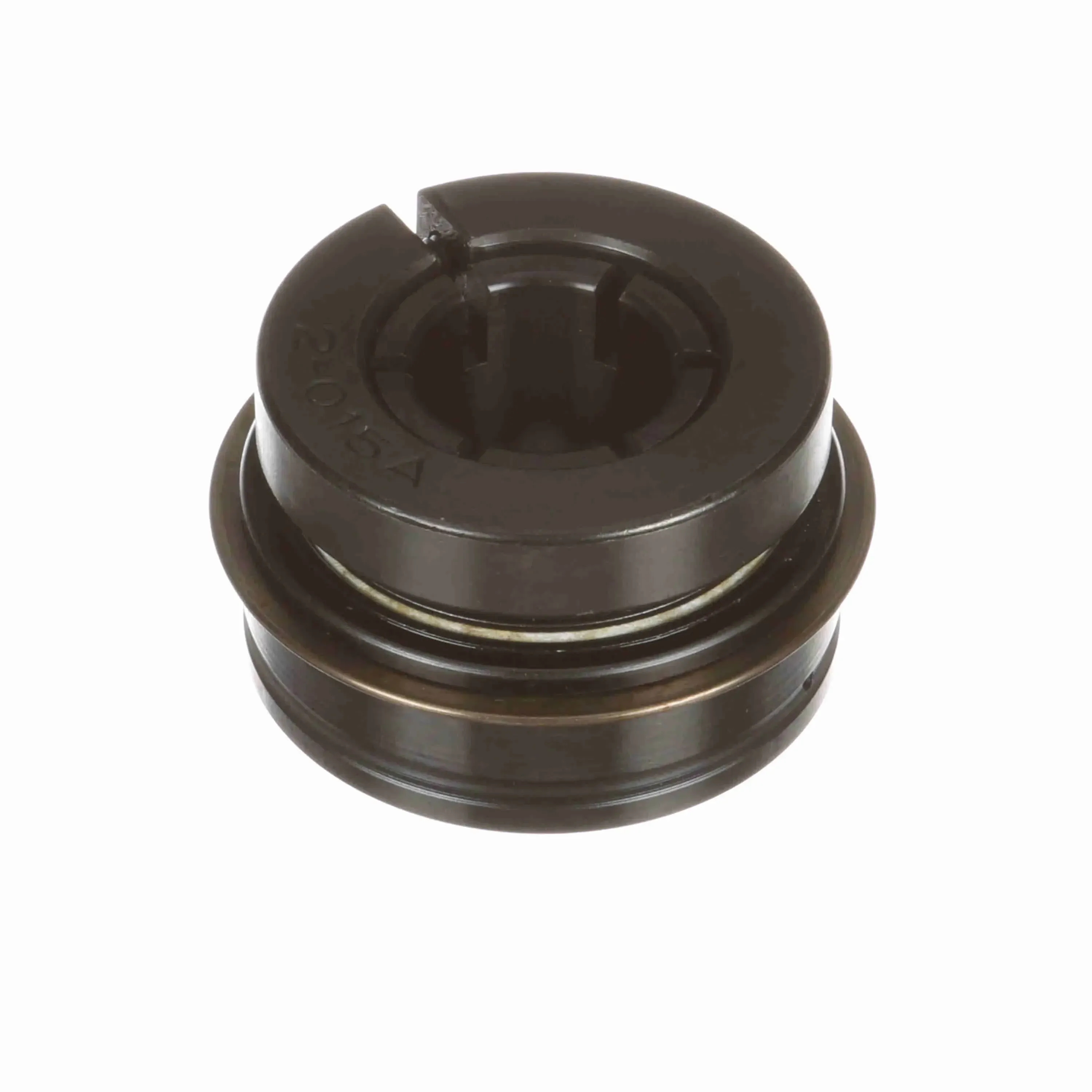

SEALMASTER ER-14T 709730 Insert Bearing, 7/8 Inch Bore, 3/4 Inch Outer Race Width, 2-3/64 Inch Out Dia
Get it by Tuesday, Dec 23
€101.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 7/8" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 0.971" |
| Collar Outer Diameter | 1.984" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 2801 lbs. |
| End Cap | No |
| Expansion | No |
| Housing Type | Insert Er Style |
| Htc | 8482.10.5048 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.481" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 1.984" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Concentric |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 9000 RPM |
| Measure Units | Inch |
| Misalignment Type | Static Only |
| Outer Race Od | 2.047" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 3/4" |
| Outer Ring Land Profile | Tapered Lands |
| Overall Width | 1.481" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 1651 lbs. |
| Radius | 1/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 3.66 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 6.05 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Outer Ring Width | Outside Dia. | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Seal Type | Cage Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER-212TM | - | - | - | - | - | - | - | - | €234.29 | |
 |
ER-16TC | 1" | - | - | 2801 lbs. | 6350 RPM | 1.438" | Single Lip Contact Seal | Polyphenylene Sulfide | €88.92 | |
 |
ER-34 | 2 1/8" | 1.188" | - | 9752 lbs. | 3250 RPM | 2.188" | Felt Labyrinth Seal | Polyphenylene Sulfide | €544.00 | |
 |
ER-32R | 2" | 1.125" | - | 9752 lbs. | 3550 RPM | 2.031" | Felt Labyrinth Seal | Polyphenylene Sulfide | €394.62 | |
 |
ER-12C | 3/4" | - | - | 2611 lbs. | 6450 RPM | 1.219" | Single Lip Contact Seal | Polyphenylene Sulfide | €54.47 | |
 |
ER-20C | 1 1/4" | - | - | 5782 lbs. | 4650 RPM | 1.688" | Single Lip Contact Seal | Polyphenylene Sulfide | €84.59 | |
 |
ER-16T DRT | - | - | - | - | - | - | - | - | €126.00 |
