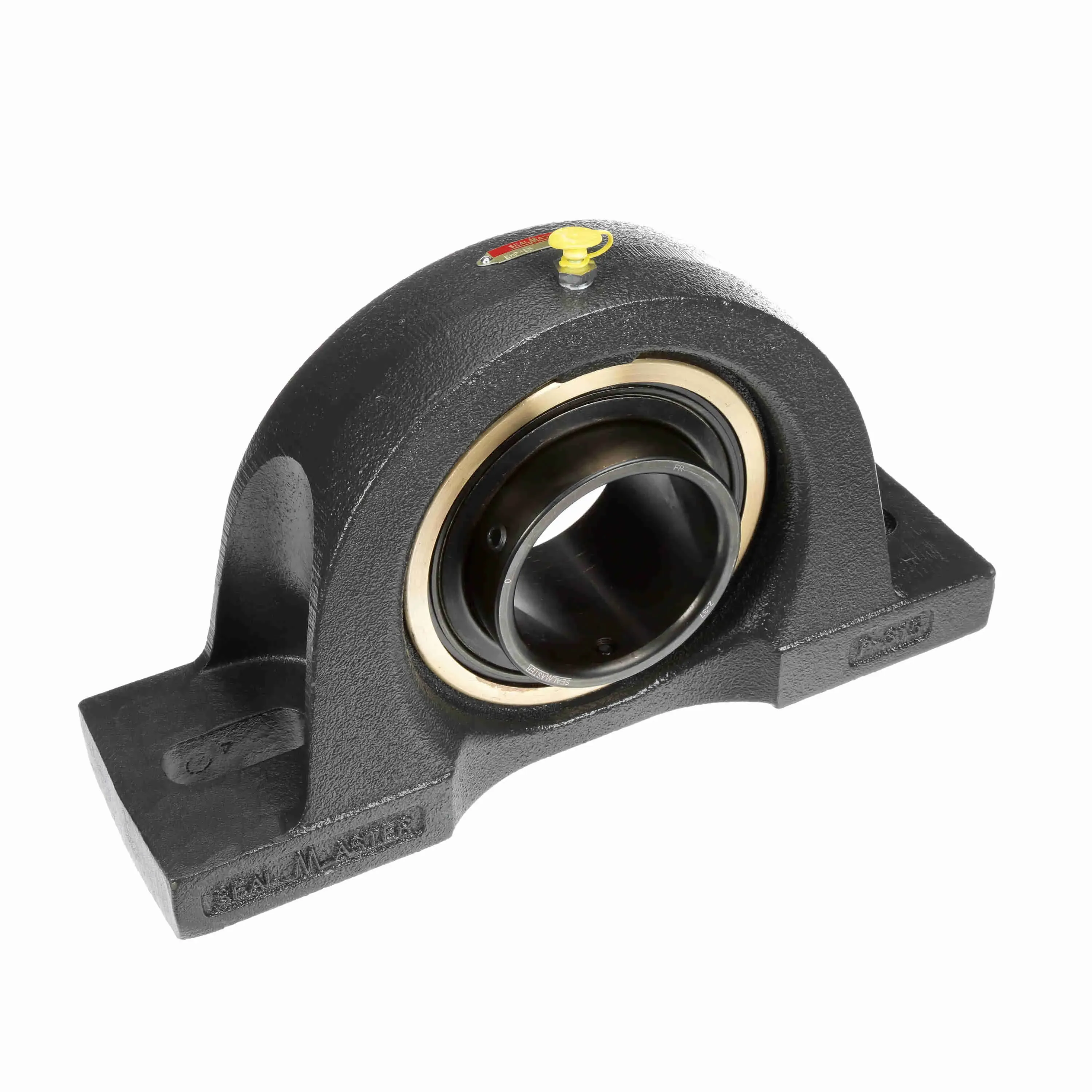

SEALMASTER EMPD-55 712127 Pillow Block Ball Bearing Unit, 2-Bolt Base, 3-7/16 Inch Bore
Get it by Tuesday, Sep 1
€7,619.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 15" |
| Base To Center Height | 4" |
| Base Width | 4.38" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 7/8" |
| Bore Dia. | 3 7/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 2.031" |
| Duty Series | Medium |
| Dynamic Load Capacity | 21566 lbs. |
| End Cap | No |
| Expansion Capability | 7/25" |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 1.31" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 4.88" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | AR-2-37D |
| Inside Ring Outside Dia. | 4.391" |
| Length | 17 1/4" |
| Length Through Bore | 4.438" |
| Locking Device | Double Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 12.63" |
| Max. Speed | 3000 RPM |
| Min. Bolt Spacing | 9.63" |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 8 1/4" |
| Overall Length | 15" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Shaft Locking Type | Double Set Screw |
| Shaft Size | 3 7/16" |
| Size Code | 2-38 |
| Static Load Rating | 16301 lbs. |
| Width | 9.88" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 43.82 |
| Ship width (cm) | 12.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Overall Height | Dynamic Load Capacity | Bolt Size | Base Width | Base To Center Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

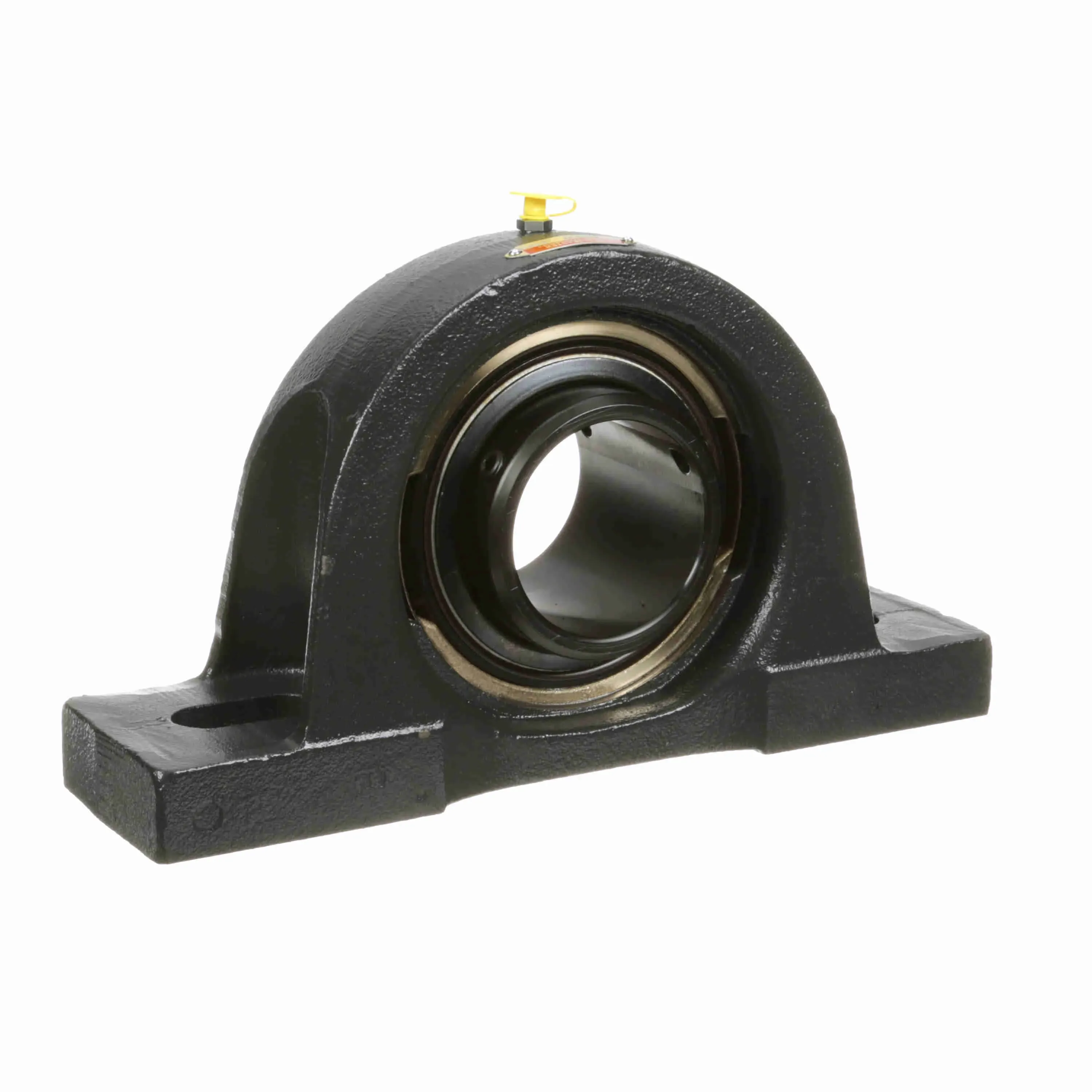

EMPD-47 | 2 15/16" | Felt Labyrinth Seal | 7 1/4" | 14839 lbs. | 7/8" | 3 1/2" | 3 1/2" | 3 1/2" | €1,789.62 | |
 |
EMPD-35 | - | Standard Felt Seal | - | - | - | - | - | - | €1,494.04 | |
 |

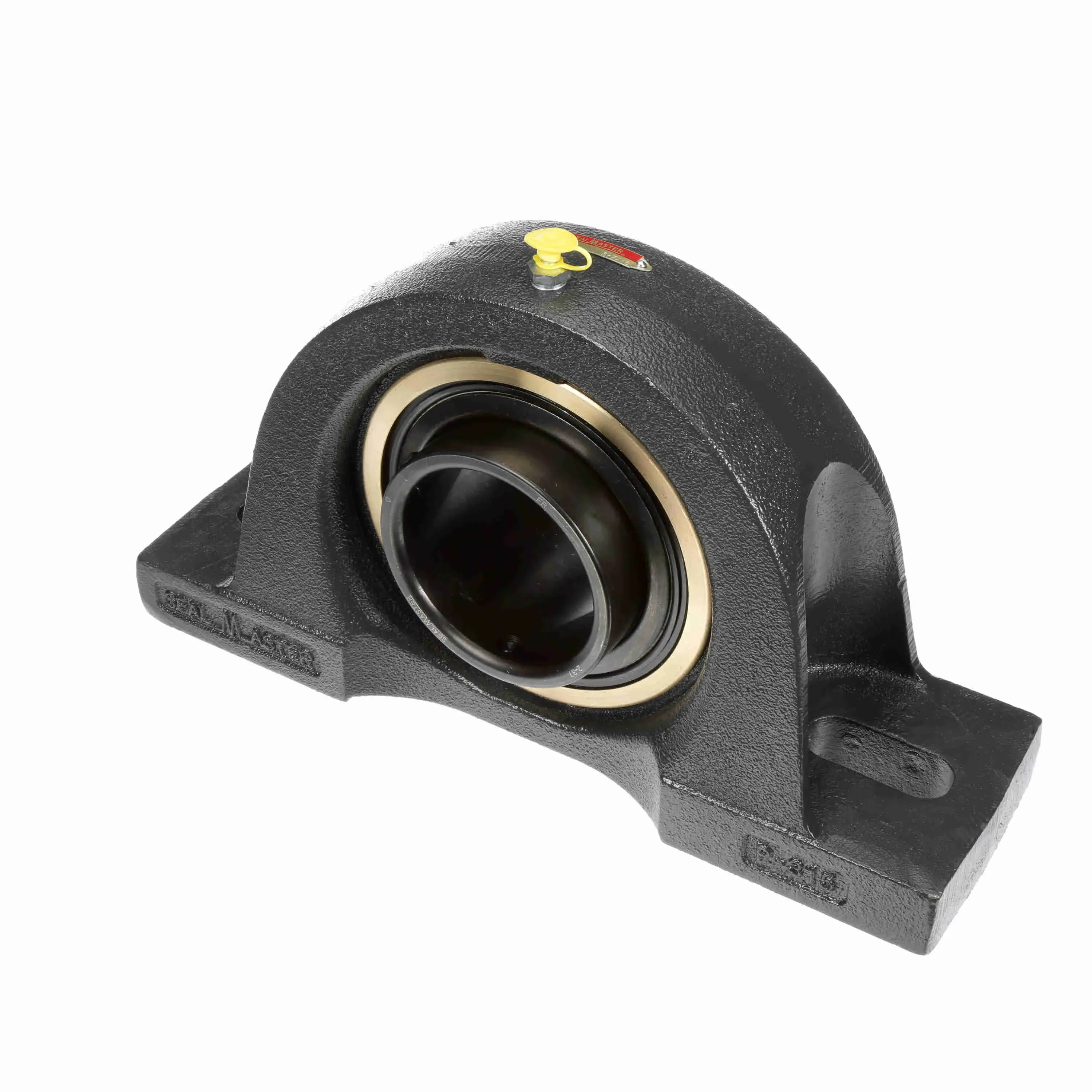

EMPD-39 | 2 7/16" | Felt Labyrinth Seal | 6 1/4" | 11789 lbs. | 3/4" | 3 1/4" | 3" | 3 1/4" | €974.85 | |
 |

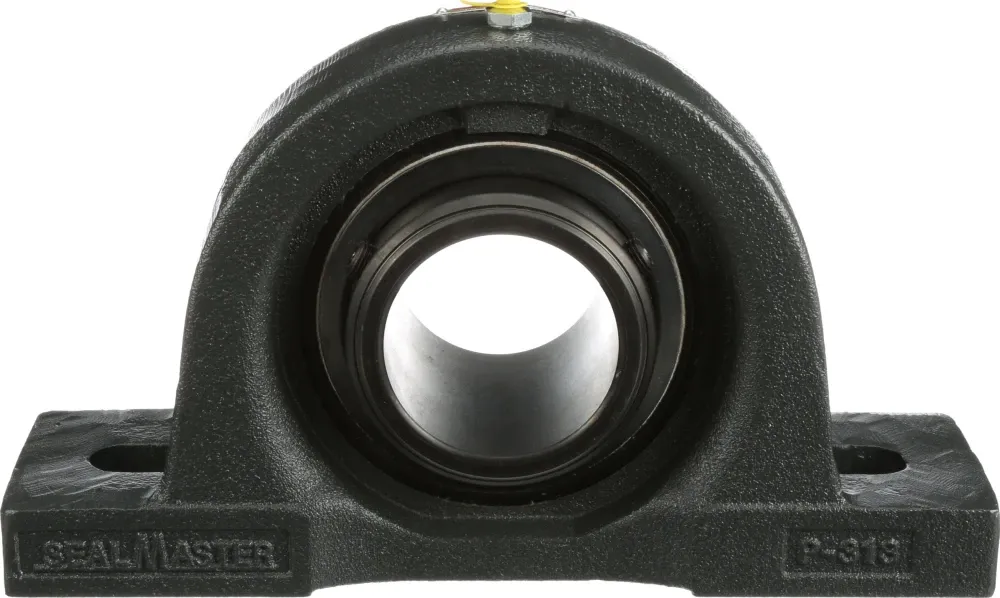

EMPD-39 CXU | - | - | - | - | - | - | - | - | €1,130.55 | |
 |
EMPD-39 HTA | 2 7/16" | - | - | - | - | - | - | - | €1,696.85 |
