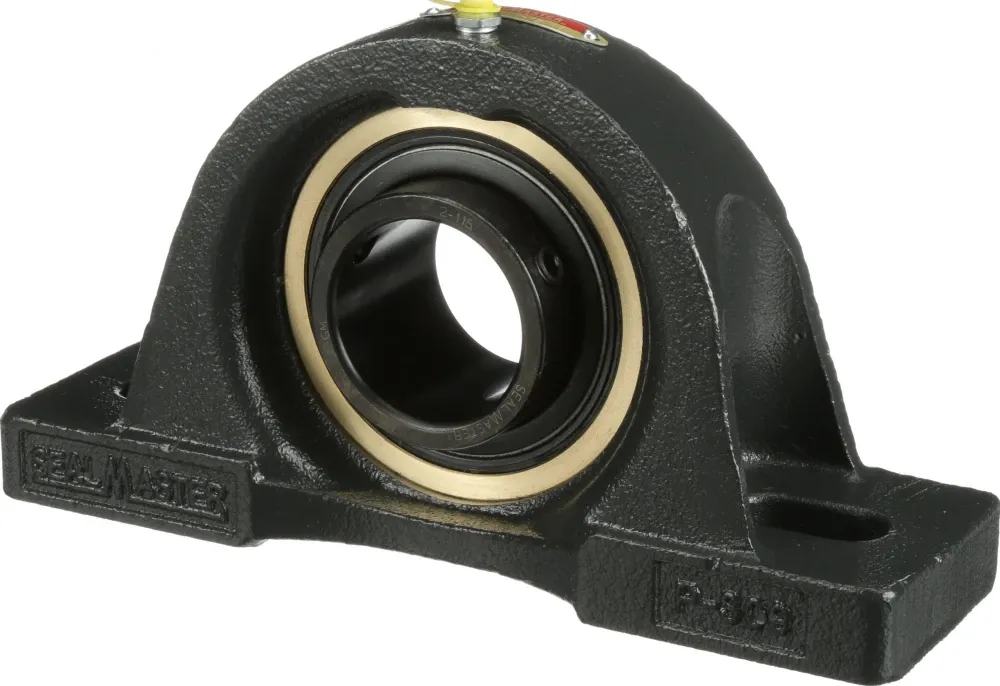

SEALMASTER EMP-43C Pillow Block Ball Bearing Unit, 2-Bolt Base, 2-11/16 Inch Bore
Get it by Tuesday, Feb 24
€1,330.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 13" |
| Base To Center Height | 3 1/2" |
| Base Width | 3 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Type | Medium Duty |
| Bolt Size | 7/8" |
| Bolt Spacing Max | 10.13" |
| Bolt Spacing Min | 7.88" |
| Bore Dia. | 2 11/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/4" |
| Duty Series | Medium |
| Dynamic Load Capacity | 14839 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Expansion |
| Fixed Vs. Expansion Size | 0.19" |
| Foot Height | 1.13" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 4" |
| Housing Base | Solid |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Type | Pillow Block |
| Inner Ring Outside Dia. | 3.641" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | AR-2-211C |
| Length | 14 1/4" |
| Length Through Bore | 2.748" |
| Locking Device | Setscrew |
| Locking Type | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 250°F |
| Maximum Speed | 2225 RPM |
| Misalignment Capability | ±2° Misalignment Static Only |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 7" |
| Overall Length | 13" |
| Overall Width | 3 1/2" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Flinger | No |
| Seal Type | Contact Seal |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Size | 2 11/16" |
| Size Code | 2-215 |
| Static Radial Load Capacity | 11224 lbs. |
| Vibration Frequency Fundamental Train | 0.007 Hz |
| Vibration Frequency Inner Ring Defect | 0.107 Hz |
| Vibration Frequency Outer Ring Defect | 0.076 Hz |
| Vibration Frequency Roller Spin | 0.048 Hz |
| Width | 8.06" |
Shipping Info:
| Ship weight (kg) | 13.1 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 7.78 |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Shaft Locking Type | Seal Type | Insert | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EMP-15 | Pillow Block, Two Bolt | 15/16" | 5 1/2" | 2" | 3 11/25" | Set Screw | Felt Labyrinth Seal | AR-2-015 | €459.52 | |
 |
EMP-16 | Pillow Block, Two Bolt | 1" | 5 1/2" | 2" | 3 11/25" | Set Screw | Felt Labyrinth Seal | AR-2-1 | €321.53 | |
|
EMP-16 CXU | Pillow Block, Two Bolt | 1" | 5 1/2" | 2" | 3 11/25" | Set Screw | Felt Labyrinth Seal | AR-2-1 | €344.04 | |
 |
EMP-16 HT | - | - | - | - | - | - | Standard Felt Seal | - | €1,000.97 | |
|
EMP-16C | Pillow Block, Two Bolt | 1" | 5 1/2" | 2" | 3 11/25" | Set Screw | Single Lip Contact Seal | AR-2-1C | €321.53 | |
 |
EMP-16T | Pillow Block, Two Bolt | 1" | 5 1/2" | 2" | 3 11/25" | Concentric | Felt Labyrinth Seal | AR-2-1T | €327.73 | |
 |
EMP-16T HI | - | - | - | - | - | - | Standard Felt Seal | - | €1,700.85 |
