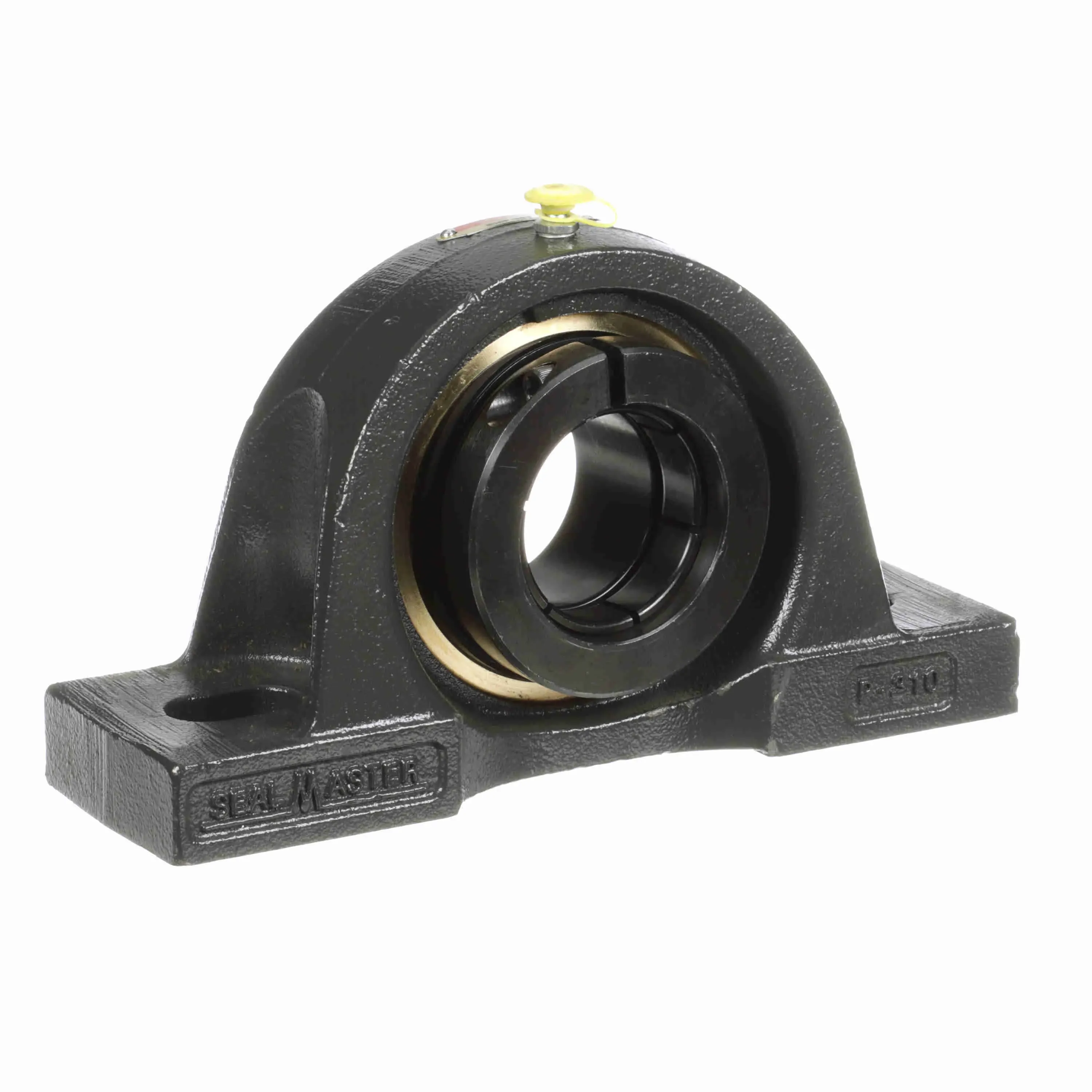

SEALMASTER EMP-35T 705666 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing
Get it by Friday, Jul 3
€1,144.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 10 1/4" |
| Base To Center Height | 2 3/4" |
| Base Width | 3.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.63" |
| Duty Series | Medium |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 1.06" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 3.19" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | AR-2-23T |
| Inside Ring Outside Dia. | 2.719" |
| Length | 11.13" |
| Length Through Bore | 2.63" |
| Locking Collar Outside Dia. | 4.06" |
| Locking Device | Skwezloc Concentric |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 7.94" |
| Max. Speed | 4500 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 5.63" |
| Overall Length | 10 1/4" |
| Overall Width | 3.13" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Shaft Locking Type | Concentric |
| Shaft Size | 2 3/16" |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
| Width | 6.31" |
Shipping Info:
| Ship weight (kg) | 7.4 |
| Ship height (cm) | 16.03 |
| Ship length (cm) | 28.27 |
| Ship width (cm) | 8.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Shaft Locking Type | Seal Type | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EMP-35 HTA | Pillow Block, Two Bolt | 2 3/16" | 10 1/4" | 3.13" | 5.63" | Set Screw | High Temp Labyrinth | 400°F | €875.91 | |
 |
EMP-27TC | - | - | - | - | - | - | Contact Seal | 250°F | €765.07 | |
 |
EMP-35T HTA | Pillow Block, Two Bolt | 2 3/16" | 10 1/4" | 3.13" | 5.63" | Concentric | High Temp Labyrinth | 400°F | €930.07 | |
 |
EMP-35 HTC | - | - | - | - | - | - | Standard Felt Seal | 250°F | €3,496.77 | |
 |
EMP-51 | Pillow Block, Two Bolt | 3 3/16" | 15" | 4" | 8" | Set Screw | - | - | €2,365.77 | |
 |
EMP-24C | Pillow Block, Two Bolt | 1 1/2" | 8 3/4" | 2.63" | 4 14/25" | Set Screw | Single Lip Contact Seal | 220°F | €573.27 | |
|
EMP-31 CXU | Pillow Block, Two Bolt | 1 15/16" | 5.38" | 2 22/25" | 5.09" | Set Screw | Felt Labyrinth Seal | 220°F | €703.47 |
