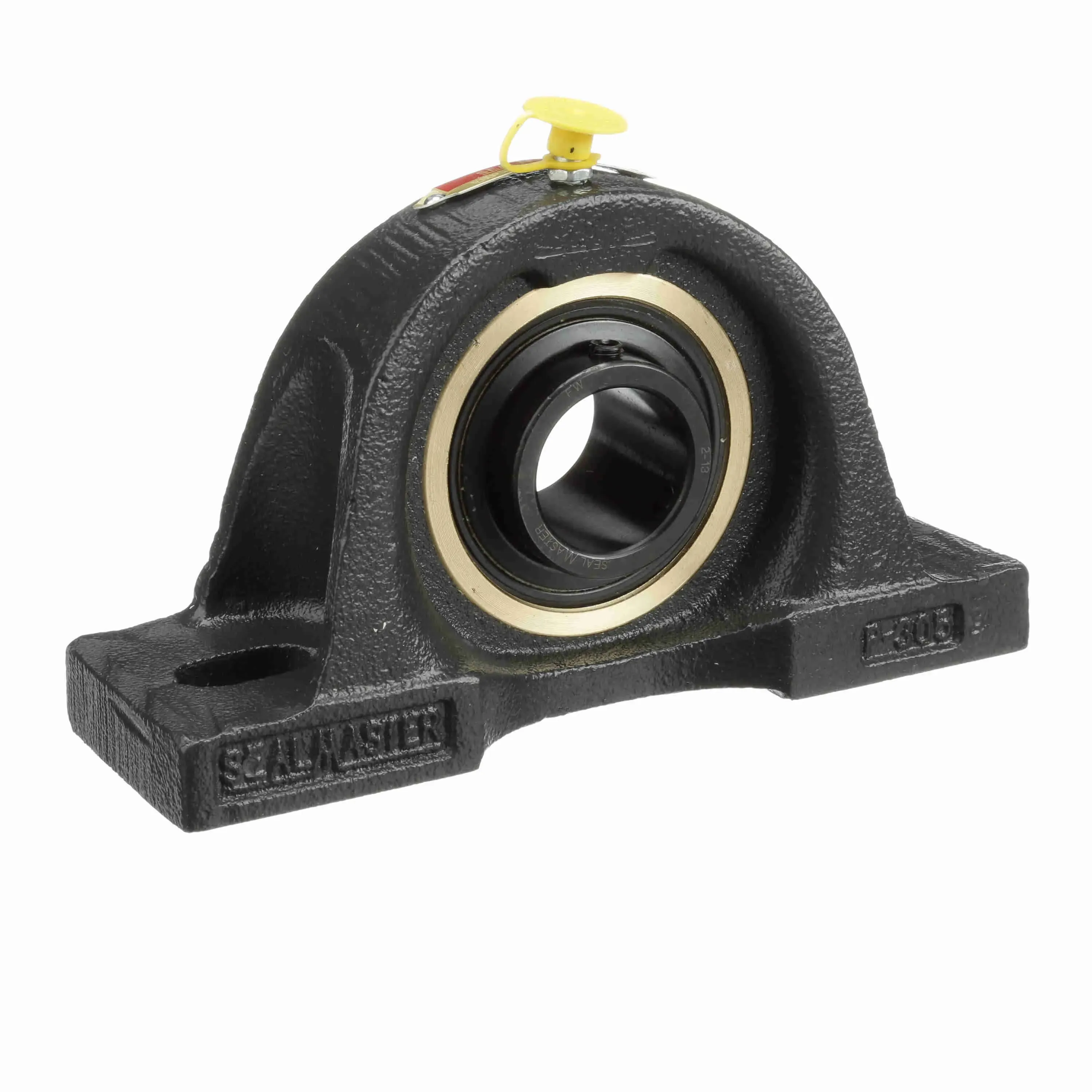

SEALMASTER EMP-19 701891 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing
Get it by Tuesday, Sep 1
€412.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 6 22/25" |
| Base To Center Height | 1 7/8" |
| Base Width | 2 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5" |
| Bore Dia. | 1 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 7/8" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 0.69" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | AR-2-13 |
| Inside Ring Outside Dia. | 1.594" |
| Length Through Bore | 1.497" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 5 1/2" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5450 RPM |
| Min. Bolt Spacing | 4 1/2" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3.81" |
| Overall Length | 5.38" |
| Overall Width | 2 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 5.87 |
| Ship length (cm) | 11.76 |
| Ship width (cm) | 19.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Height | Dynamic Load Capacity | Overall Width | Bolt Size | Base Width | Base To Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EMP-35 HTA | High Temp Labyrinth | 2 3/16" | 5.63" | 9752 lbs. | 3.13" | 3/4" | 3.13" | 2 3/4" | €875.91 | |
 |
EMP-27TC | Contact Seal | - | - | - | - | - | - | - | €765.07 | |
 |
EMP-35T HTA | High Temp Labyrinth | 2 3/16" | 5.63" | 9752 lbs. | 3.13" | 3/4" | 3.13" | 2 3/4" | €930.07 | |
 |
EMP-35 HTC | Standard Felt Seal | - | - | - | - | - | - | - | €3,496.77 | |
 |
EMP-51 | - | 3 3/16" | 8" | 17412 lbs. | 4" | 7/8" | 4" | 4" | €2,365.77 | |
 |
EMP-24C | Single Lip Contact Seal | 1 1/2" | 4 14/25" | 7340 lbs. | 2.63" | 5/8" | 2.63" | 2 5/16" | €573.27 | |
|
EMP-31 CXU | Felt Labyrinth Seal | 1 15/16" | 5.09" | 7889 lbs. | 2 22/25" | 5/8" | 2 22/25" | 2 1/2" | €703.47 |
