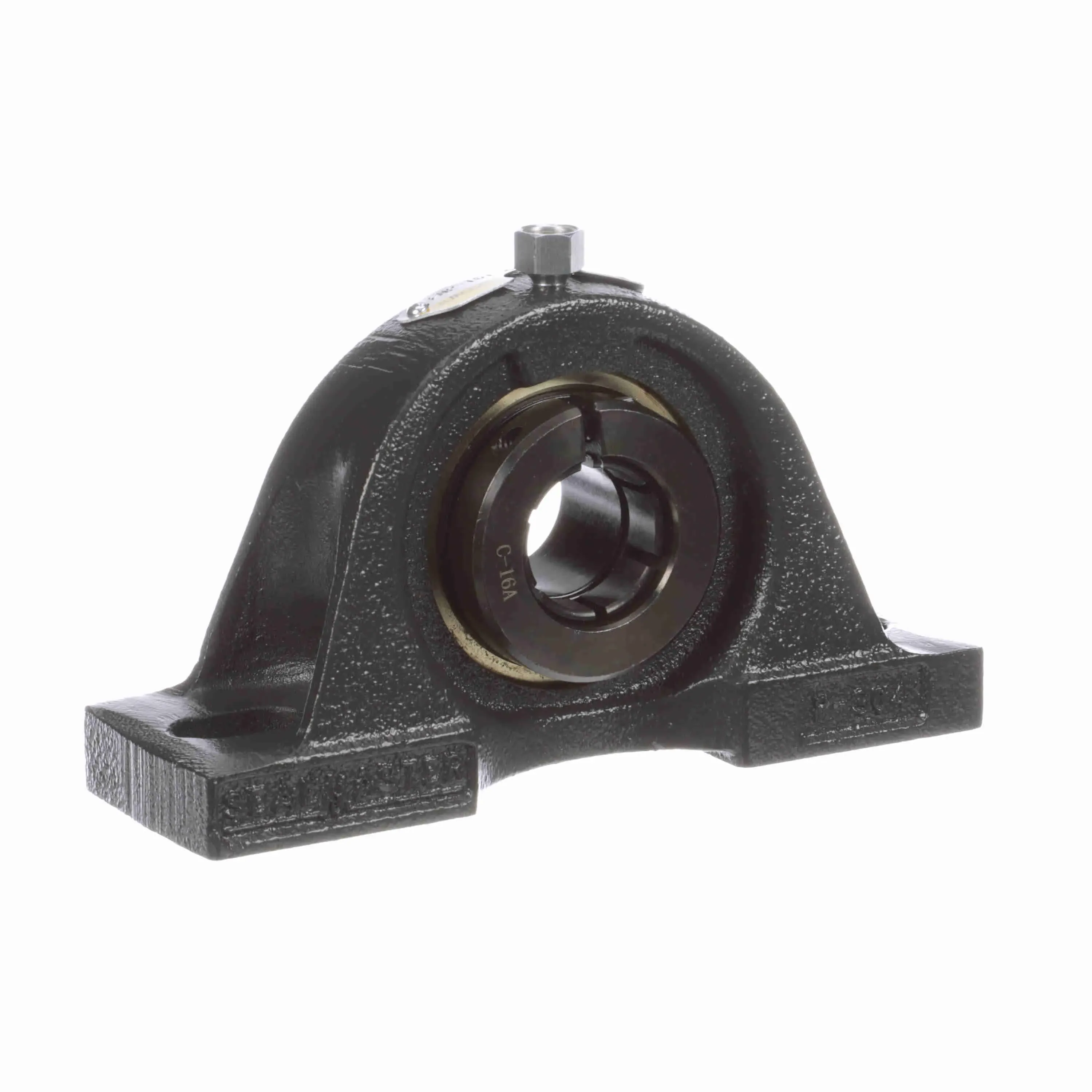

SEALMASTER EMP-16T XLO 712061 Pillow Block Bearing, 2 Bolt, 1 Inch Bore, Concentric Collar Mount
Get it by Monday, Dec 22
€349.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 6 1/4" |
| Base To Center Height | 1 3/4" |
| Base Width | 2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 1/2" |
| Bolt Spacing Max | 5.19" |
| Bolt Spacing Min | 4.19" |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.938" |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 0.63" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.594" |
| Insert | AR-2-1T XLO |
| Length Through Bore | 1.563" |
| Locking Collar Outside Diameter | 2.06" |
| Lubrication Type | Oil Coated Only No Factory Grease Fill |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2150 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Extra Low Drag |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 11/25" |
| Overall Length | 5 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Labryinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Shaft Locking Type | Seal Type | Insert | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EMP-205 CXU | - | - | - | - | - | - | - | - | €417.72 | |
 |
EMP-35 HTA | Pillow Block, Two Bolt | 2 3/16" | 10 1/4" | 3.13" | 5.63" | Set Screw | High Temp Labyrinth | AR-2-23 HT | €875.91 | |
|
EMP-19T HI | - | - | - | - | - | - | - | - | €520.58 | |
 |
EMP-27TC | - | - | - | - | - | - | Contact Seal | - | €765.07 | |
 |
EMP-35T HTA | Pillow Block, Two Bolt | 2 3/16" | 10 1/4" | 3.13" | 5.63" | Concentric | High Temp Labyrinth | AR-2-23T HT | €930.07 | |
|
EMP-35 HTC | - | - | - | - | - | - | Standard Felt Seal | - | €3,496.77 | |
 |
EMP-51 | Pillow Block, Two Bolt | 3 3/16" | 15" | 4" | 8" | Set Screw | - | AR-2-33 | €2,365.77 |
