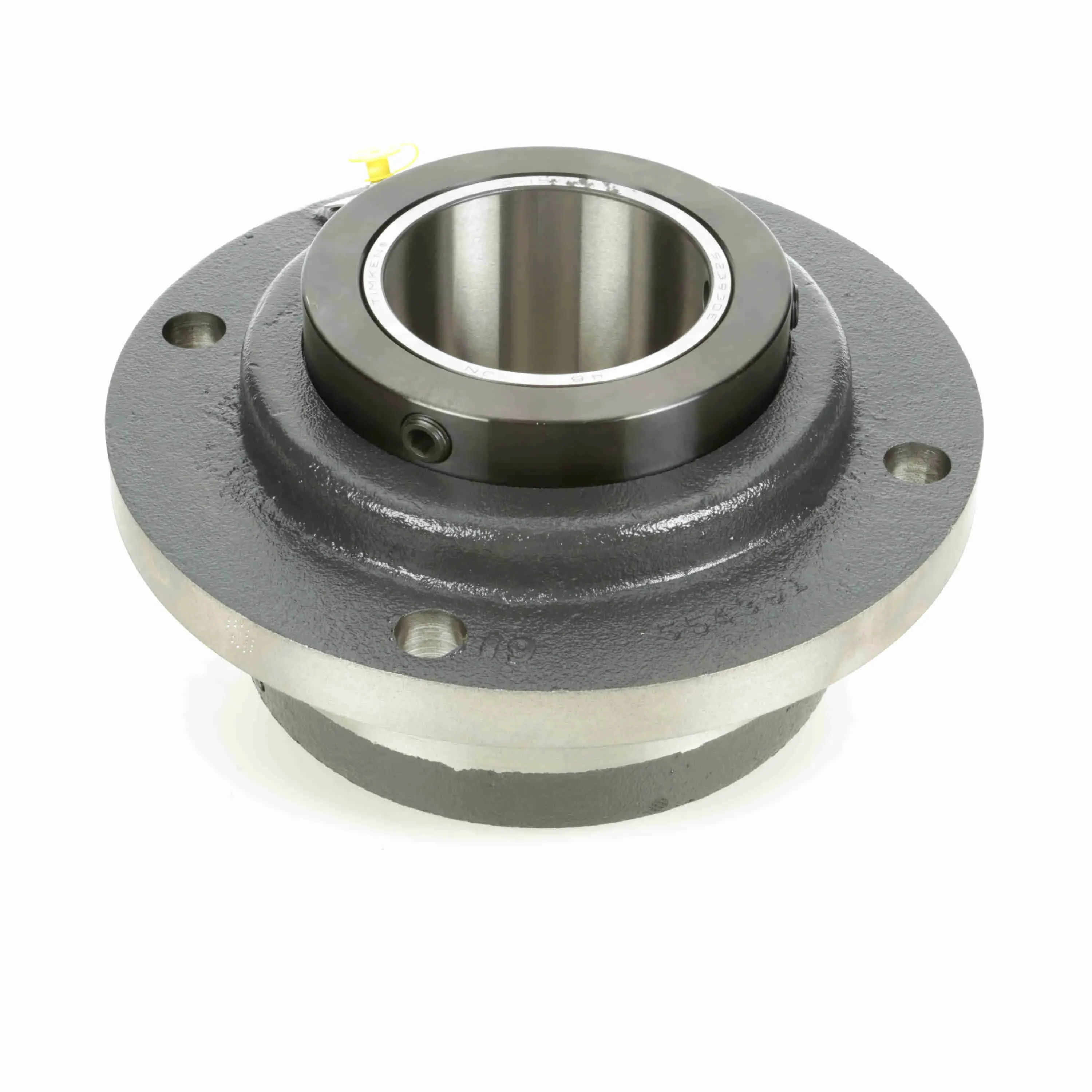

SEALMASTER EFP 315 554389 Tapered Roller Bearing, Piloted Flange, Double Collar Mount Lock, 3.938 Inch
Get it by Tuesday, Sep 1
€2,892.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tapered Roller Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bolt Center Dia. | 9 3/8" |
| Bolt Size | 3/4" |
| Bore Dia. | 3 15/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 3 14/25" |
| Collar Outside Dia. | 5.93" |
| Duty Series | Standard Series |
| End Cap | No |
| Expansion | Yes |
| Foot Height | 1" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Outside Dia. | 10 22/25" |
| Housing Style | Flange Block |
| Housing Type | Flange, Piloted |
| Htc | 8483.20.4080 |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 6 1/4" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Operating Temp. | 220°F |
| Max. Speed | 1250 RPM |
| Measure Units | Inch |
| Misalignment Capability | -3° to +3° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Pilot Configuration | With Pilot |
| Pilot Dia. | 8 1/8" |
| Platform | RPB Series |
| Replaceable Insert | No |
| Retainer Material | Steel |
| Rolling Element | Tapered Roller |
| Seal Type | Felt Labyrinth Seal |
Shipping Info:
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 16.84 |
| Country of Origin | US |
