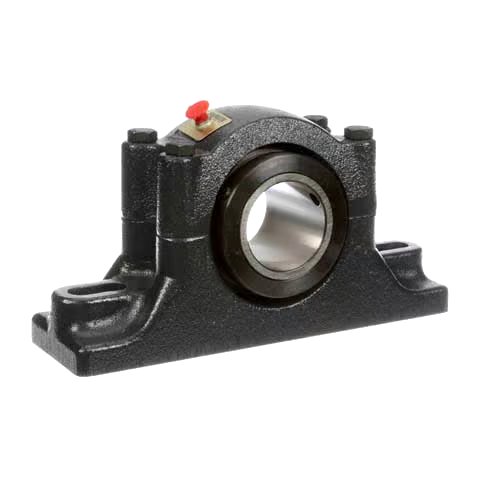

SEALMASTER EDPBA 207-N2 557392 Pillow Block Bearing, 2 Bolt, 2.43 Inch Bore, 3.25 Inch Base to Center Height
Get it by Tuesday, Sep 1
€1,919.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 3 1/4" |
| Base Width | 2 7/8" |
| Bearing Insert Finish | Uncoated |
| Bolt Size | 5/8" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 2" |
| Collar Outside Dia. | 3.938" |
| Duty Series | Standard , Standard Series |
| End Cap | No |
| Expansion | Yes |
| Foot Height | 1 3/4" |
| Grade | Grade 52100 |
| Height | 5.13" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8080 |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 3.313" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | ERCIA-207N |
| Inside Dia. | 2 7/16" |
| Internal Clearance | Standard |
| Length | 13.88" |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Bolt Center | 10 3/8" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2000 RPM |
| Min. Bolt Center | 8 1/2" |
| Misalignment Type | Static Only |
| Operating Temp. | 400°F |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 6 1/4" |
| Overall Length | 12" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Rolling Element | Tapered Roller |
| Seal Type | High Temp Labyrinth |
| Width | 8" |
Shipping Info:
| Ship weight (kg) | 12.51 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 35.26 |
| Ship width (cm) | 13.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Height | Bolt Size | Base Width | Base To Center Height | Overall Width | Shaft Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EDPBA 204-C2 | Contact | - | - | - | - | - | - | 2 1/4" | €984.56 | |
 |
EDPBA 115-2 | Felt | - | - | - | - | - | - | 1 15/16" | €851.01 | |
 |
EDPBA 208-2 | Felt | - | - | - | - | - | - | 2 1/2" | €5,028.70 | |
 |
EDPBA 300-C2 | - | 3" | 7.188" | 3/4" | 3 1/8" | 3 3/4" | 3.69" | 3" | €3,952.09 | |
|
EDPBA 215-2 | - | 2 15/16" | 7.188" | 3/4" | 3 1/8" | 3 3/4" | 3.69" | 2 15/16" | €2,337.39 | |
 |
EDPBA 203-2 | Felt | - | - | - | - | - | - | 2 3/16" | €4,495.79 | |
 |
EDPBA 300-2 | Felt | - | - | - | - | - | - | 3" | €6,627.75 |
