SEALMASTER DRPB 211-C2 552340 Pillow Block Bearing, 2 Bolt, 2.68 Inch Bore, 3.75 Inch Base to Center Height
Get it by Thursday, Dec 18
€3,185.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 3 3/4" |
| Base Width | 3 1/8" |
| Bearing Insert Finish | Uncoated |
| Bolt Center Max | 11.563" |
| Bolt Center Min | 9.313" |
| Bolt Size | 3/4" |
| Bore Dia. | 2 11/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 2 1/4" |
| Collar Outer Dia. | 4.719" |
| Collar Outer Diameter | 4.719" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 9630 lbs. |
| End Cap | No |
| Expansion | No |
| Foot Height | 2" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 5.13" |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 2 11/16" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 4 1/2" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-211C |
| Internal Clearance | Standard |
| Length | 13.88" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1750 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 7" |
| Overall Length | 13 1/2" |
| Overall Width | 4 1/2" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Series | DRPB Series |
| Shaft Size | 2 11/16" |
| Width | 8" |
Shipping Info:
| Ship weight (kg) | 16.78 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 35.26 |
| Ship width (cm) | 13.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Overall Length | Overall Width | Overall Height | Bore Dia. | Shaft Size | Seal Type | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DRPB 200-2 | Two Bolt Pillow Block | - | - | - | - | 2" | Felt | - | €780.75 | |
|
DRPB 60MM-2 | - | - | - | - | - | - | - | - | €1,256.29 | |
 |

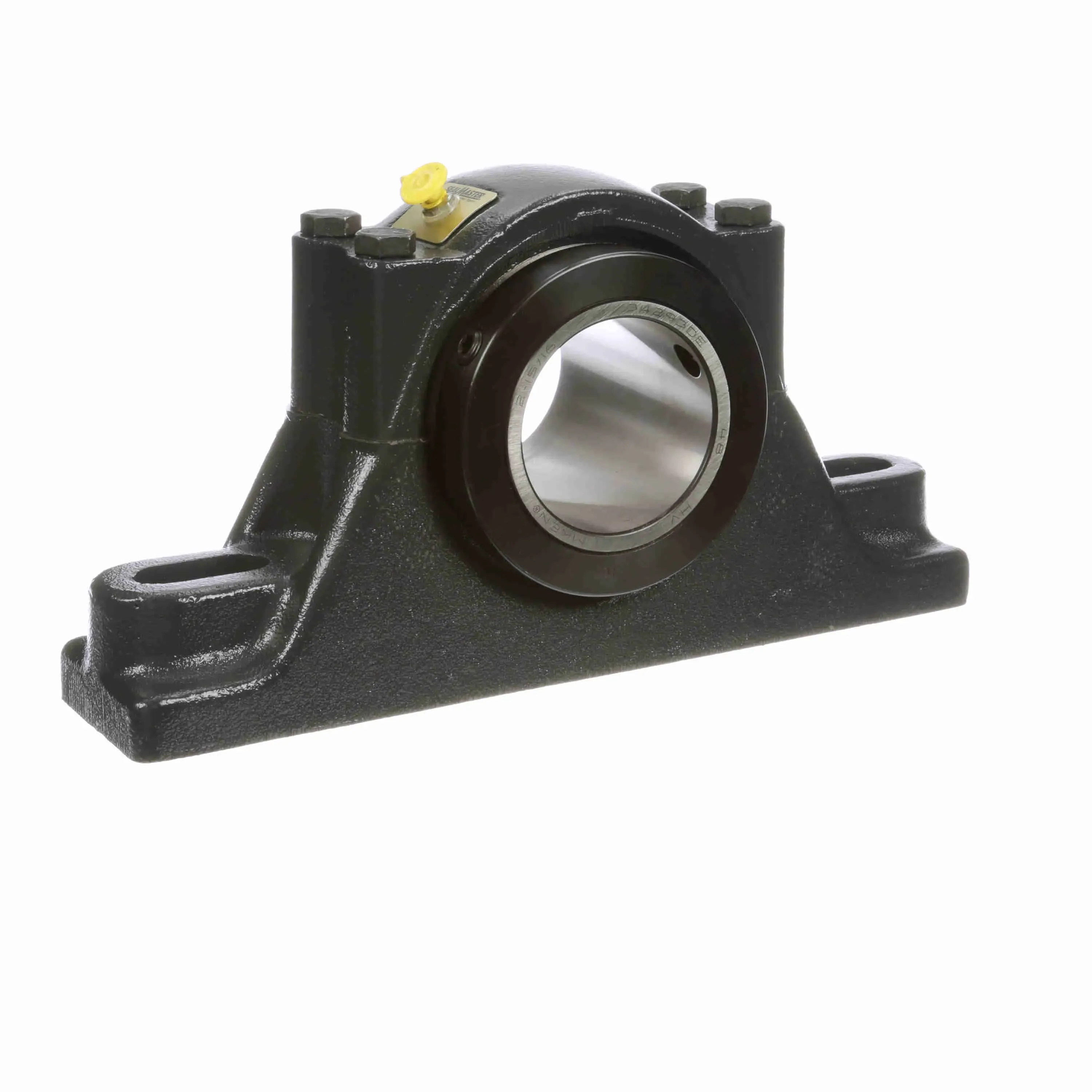

DRPB 215-C2 | - | 13 1/2" | 4 1/2" | 7" | 2 15/16" | 2 15/16" | - | 1750 RPM | €2,005.33 | |
|
DRPB 215-2 HSG PKG | - | - | - | - | - | - | - | - | €447.00 | |
|
DRPB 307-2 | - | 16" | 5" | 8 1/2" | 3 7/16" | 3 7/16" | - | 1500 RPM | €5,792.93 | |
 |

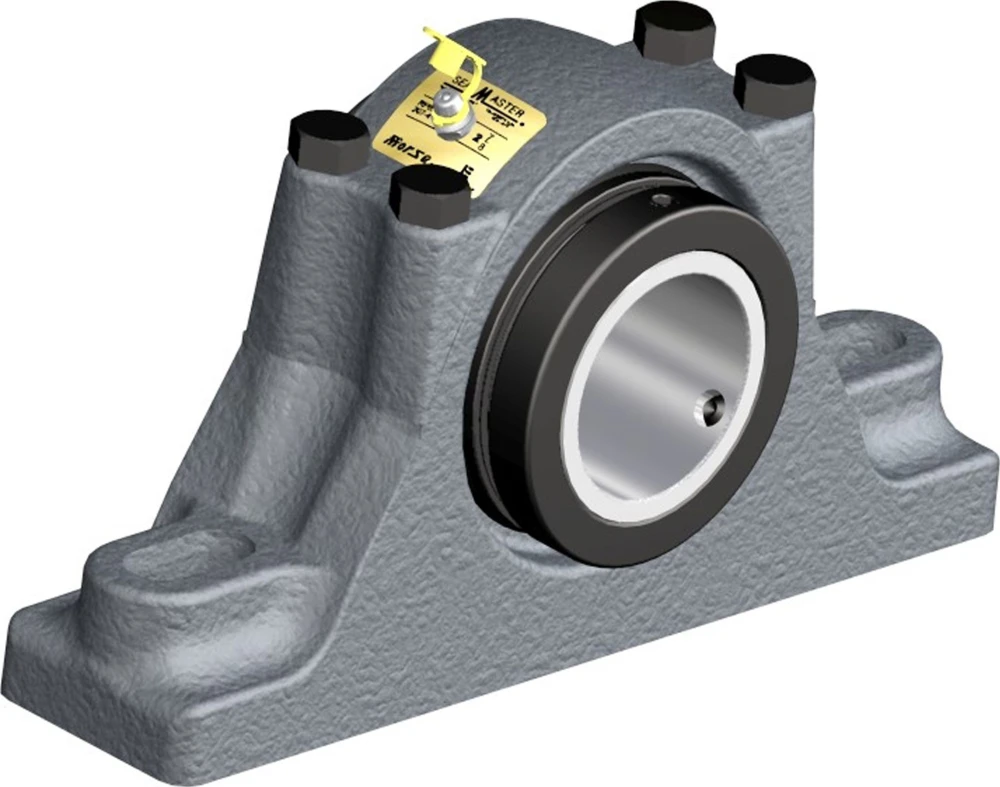

DRPB 115-C2 | Two Bolt Pillow Block | - | - | - | - | 1 15/16" | Contact | - | €3,418.88 | |
|
DRPB 203-2 | - | 11" | 3 3/4" | 5 5/8" | 2 3/16" | 2 3/16" | - | 2500 RPM | €1,363.23 |
