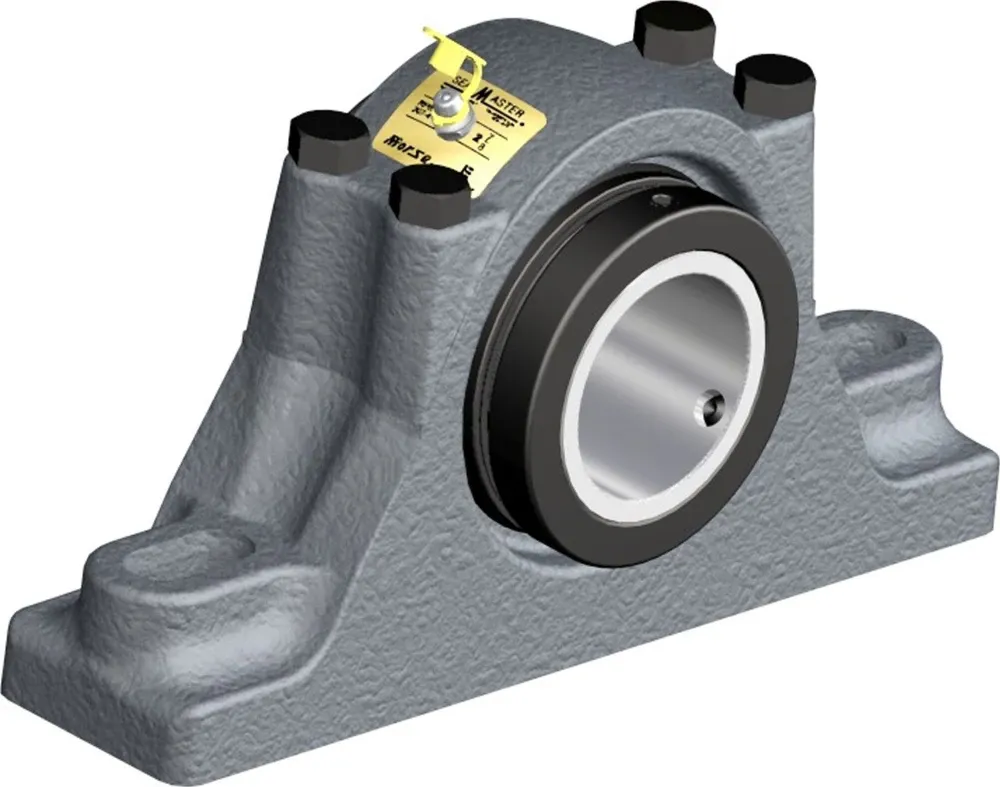

SEALMASTER DRPB 211-2 Pillow Block Bearing, 2 Bolt, 2.68 Inch Bore, 3.75 Inch Base to Center Height
Get it by Monday, Aug 31
€5,567.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 3 3/4" |
| Base Width | 3 1/8" |
| Bearing Insert Finish | Uncoated |
| Bolt Center To Center Length | 10.435" |
| Bolt Size | 3/4" |
| Bore Shape | Straight |
| Centerline To Front Face | 2 1/4" |
| Collar Outside Dia. | 4 3/4" |
| Duty Series | Standard |
| Dynamic Radial Load Capacity | 9630 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 2" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 5.13" |
| Housing Base | Semi-Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Type | Pillow Block, Two Bolt |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 4 1/2" |
| Insert Material | Steel |
| Insert Number | RCI-211 |
| Inside Dia. | 2 11/16" |
| Internal Clearance | Standard |
| Length | 13.88" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubricant | Lithium, Ep, NLGI#2 |
| Max. Bolt Center | 11.563" |
| Max. Operating Temp. | 250°F |
| Max. Speed | 1750 RPM |
| Measure Units | Imperial |
| Min. Bolt Center | 9.313" |
| Misalignment Capability | ±3° Misalignment Static Only |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 7" |
| Overall Length | 13 1/2" |
| Overall Width | 4 1/2" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Rolling Element | Tapered-Roller |
| Seal Flinger | Yes |
| Seal Type | Felt |
| Series | DRPB Series |
| Shaft Size | 2 11/16" |
| Width | 8" |
Shipping Info:
| Ship weight (kg) | 15.84 |
| Ship height (cm) | 13.03 |
| Ship length (cm) | 35.26 |
| Ship width (cm) | 20.32 |
Product Variants
| Product | Model | Seal Type | Overall Height | Overall Width | Bolt Size | Base Width | Base To Center Height | Bore Dia. | Shaft Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DRPB 200-2 | Felt | - | - | - | - | - | - | 2" | €780.75 | |
 |
DRPB 215-C2 | - | 7" | 4 1/2" | 3/4" | 3 1/8" | 3 3/4" | 2 15/16" | 2 15/16" | €2,005.33 | |
 |
DRPB 307-2 | - | 8 1/2" | 5" | 7/8" | 4 3/8" | 4 1/2" | 3 7/16" | 3 7/16" | €5,792.93 | |
 |
DRPB 115-C2 | Contact | - | - | - | - | - | - | 1 15/16" | €3,418.88 | |
|
DRPB 203-2 | - | 5 5/8" | 3 3/4" | 5/8" | 2.563" | 3" | 2 3/16" | 2 3/16" | €1,363.23 | |
|
DRPB 207-2 HSG PKG | Felt | - | - | - | - | - | - | 2 7/16" | €1,886.58 | |
|
DRPB 308-C2 | Contact | - | - | - | - | - | - | 3 1/2" | €2,211.16 |
