SEALMASTER CRTBF-PN16 711216 Tapped Base Pillow Block Unit, 1 Inch Bore, Standard Duty
Get it by Tuesday, Dec 23
€407.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 3" |
| Base To Center Height | 1.438" |
| Base Width | 1 1/2" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Spacing | 2" |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.81" |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Fluoropolymer Coated |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Tapped Base |
| Housing Width | 1 1/2" |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.38" |
| Insert | PN-16 |
| Ip Rating | IP69K |
| Length Through Bore | 1 3/8" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2700 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.81" |
| Overall Length | 3" |
| Overall Width | 1 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Setscrew Torque | 65 lbs.-in. to 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Thread Depth | 1/2" |
| Thread Size | 3/8"-16 |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRTBF-PN20T RMW | - | - | - | - | - | - | - | - | €577.21 | |
|
CRTBF-PN31T RMW | - | - | - | - | - | - | - | - | €3,586.57 | |
|
CRTBF-PN24 | Pillow Block, Tapped Base | 1 1/2" | 4.63" | 1.94" | 3.93" | Multi-Lip Contact Seal | PN-24 | 1750 RPM | €584.65 | |
|
CRTBF-PN19 | Pillow Block, Tapped Base | 1 3/16" | 4" | 1 1/2" | 3.41" | Multi-Lip Contact Seal | PN-19 | 2300 RPM | €453.12 | |
 |

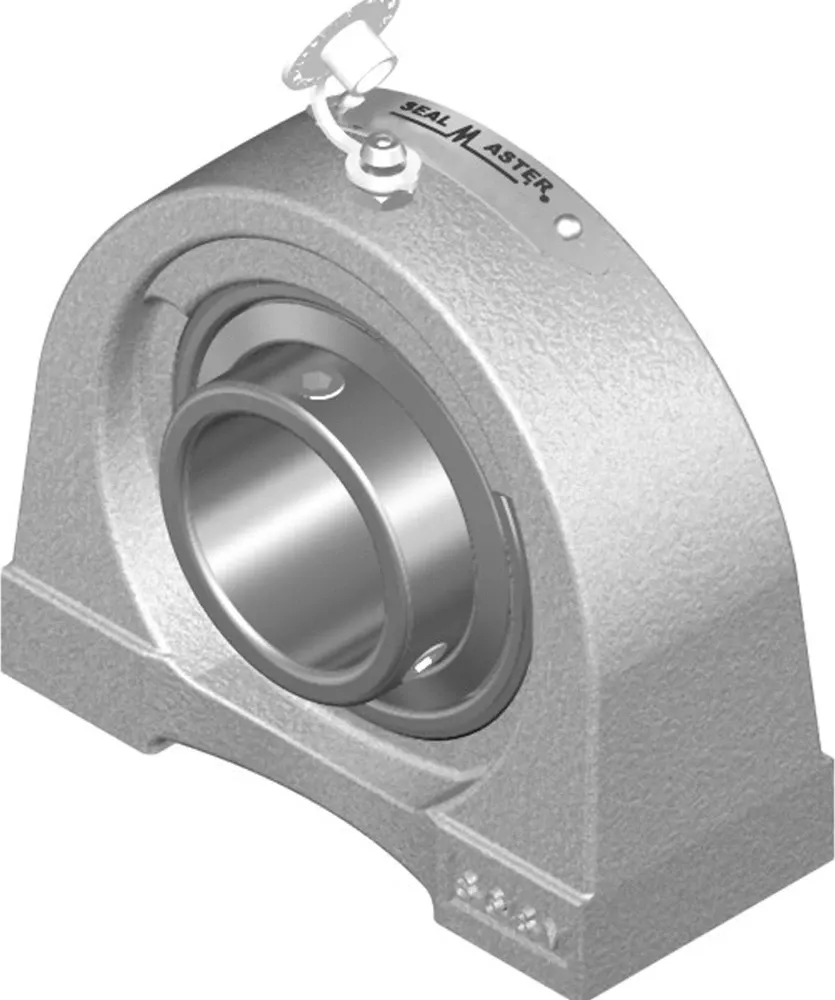

CRTBF-PN27 | Tapped Base Pillow Block | - | - | - | - | High Performance Seal | - | - | €741.69 | |
|
CRTBF-PN207T | - | - | - | - | - | - | - | - | €536.70 | |
|
CRTBF-PN22 | Pillow Block, Tapped Base | 1 3/8" | 4.41" | 1 22/25" | 3 3/4" | Multi-Lip Contact Seal | PN-22 | 2000 RPM | €501.91 |
