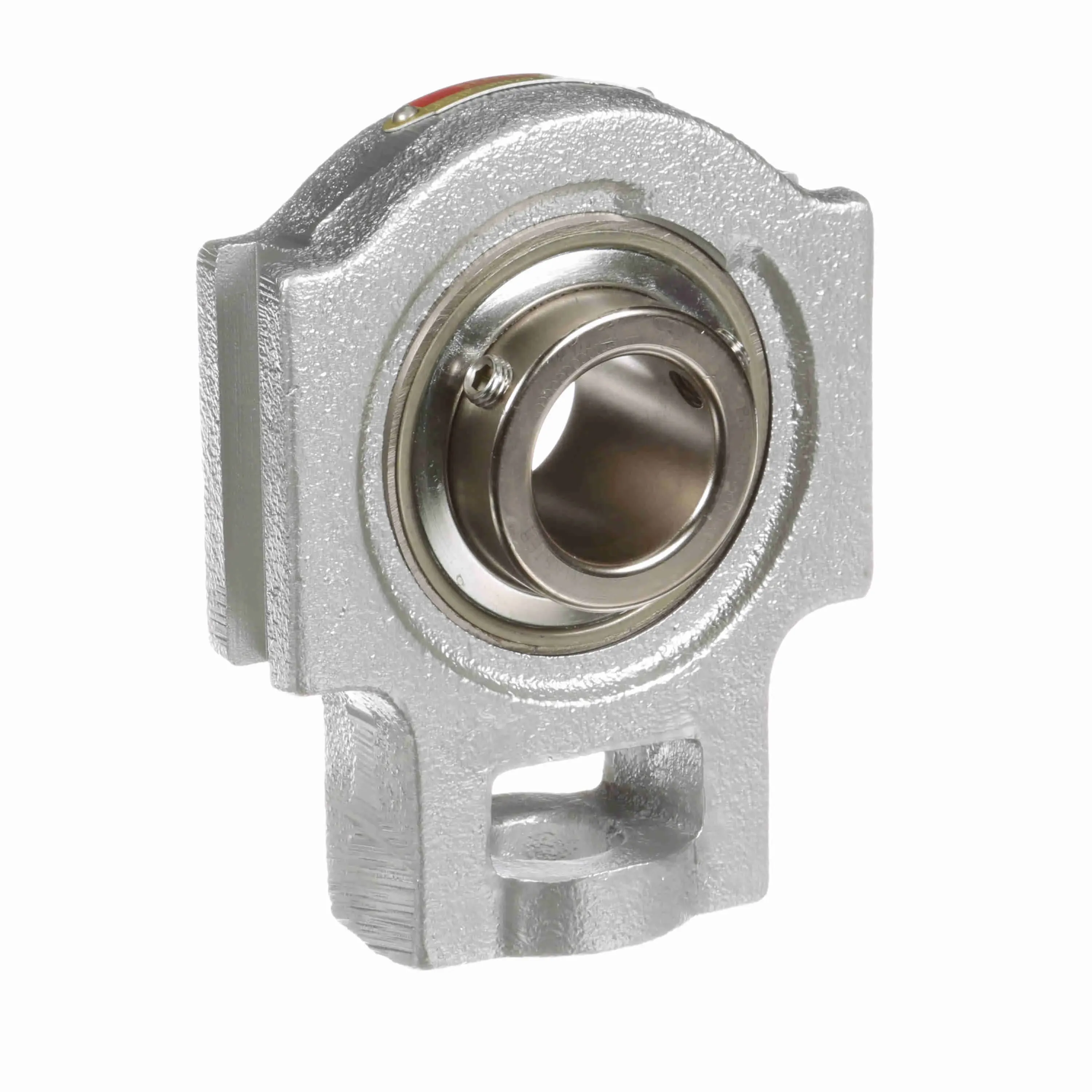

SEALMASTER CRSTF-PN23 RMW 711321 Take Up Ball Bearing, Phosphorus Nickel Coated, Setscrew Lock, 1.438 Inch
Get it by Tuesday, Sep 1
€532.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Take Up Bearing |
| Ability To Relubricate | No |
| Adjusting Screw Clearance Hole Dia. | 22/25" |
| Adjusting Screw Square Nut Seat Height | 1 11/25" |
| Base To Center Height | 3.06" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 5/8" |
| Centerline To Outermost Bearing Face | 1" |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Fluoropolymer Coated |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Take Up Block |
| Housing Type | Take Up Block, Wide Slot |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-23 |
| Inside Ring Outside Dia. | 1.859" |
| Ip Rating | IP69K |
| Length Through Bore | 1.685" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 4" |
| Overall Length | 5.06" |
| Overall Width | 1 3/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Series | CRSTF Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-17 |
| Slot Length | 2 1/2" |
| Slot Spacing | 3 1/2" |
| Slot Width | 0.531" |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 1.73 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Overall Length | Overall Width | Seal Type | Max. Speed | Dynamic Load Capacity | Slot Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRSTF-PN20R | - | - | - | - | High Performance Seal | - | - | - | €1,893.13 | |
 |
CRSTF-PN39 | 2 7/16" | 5 3/4" | 7.63" | 2 14/25" | Multi-Lip Contact Seal | 1250 RPM | 11789 lbs. | 5 1/8" | €831.12 | |
|
CRSTF-PN31 | 1 15/16" | 4.63" | 5 22/25" | 2.19" | Multi-Lip Contact Seal | 1500 RPM | 7889 lbs. | 4" | €705.99 | |
|
CRSTF-PN24 | 1 1/2" | 4 1/2" | 5.69" | 2.13" | Multi-Lip Contact Seal | 1750 RPM | 7340 lbs. | 4" | €584.65 | |
 |
CRSTF-PN19 | 1 3/16" | 4" | 4 11/25" | 1 3/4" | Multi-Lip Contact Seal | 2300 RPM | 4381 lbs. | 3 1/2" | €453.12 | |
 |
CRSTF-PN32 | 2" | 5 3/4" | 6 3/4" | 2 1/4" | Multi-Lip Contact Seal | 1350 RPM | 9752 lbs. | 5 1/8" | €691.24 | |
 |
CRSTF-PN22 RMW | - | - | - | - | High Performance Seal | - | - | - | €563.53 |
