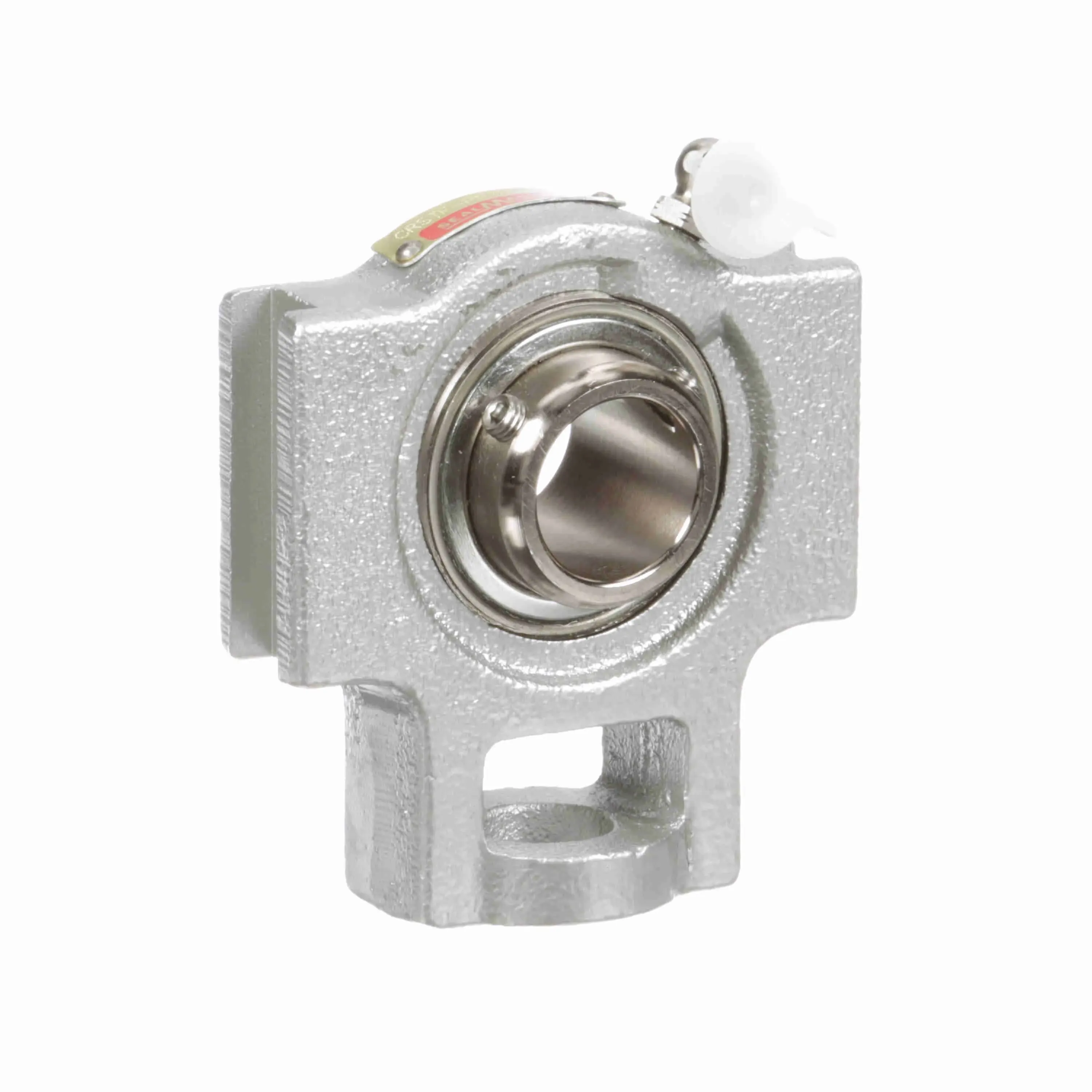

SEALMASTER CRSTF-PN16 711229 Take-Up Ball Bearing Unit, Side Mount, 1.00 Inch Bore
Get it by Tuesday, Dec 23
€407.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Adjusting Screw Clearance Hole Diameter | 3/4" |
| Adjusting Screw Square Nut Seat Height | 1 1/4" |
| Base To Center Height | 2 11/25" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 5/8" |
| Centerline To Outermost Bearing Face | 0.813" |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Fluoropolymer Coated |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Take Up Block |
| Housing Type | Take Up Block, Wide Slot |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1 3/8" |
| Insert | PN-16 |
| Ip Rating | IP69K |
| Length Through Bore | 1 3/8" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2700 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 1/2" |
| Overall Length | 3.81" |
| Overall Width | 1.38" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Series | CRSTF Series |
| Setscrew Torque | 65 lbs.-in. to 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-015 |
| Slot Length | 2" |
| Slot Spacing | 3" |
| Slot Width | 0.531" |
| Static Load Rating | 1651 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Shipping Info:
| Ship weight (kg) | 0.89 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Overall Length | Overall Width | Seal Type | Max. Speed | Dynamic Load Capacity | Slot Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRSTF-PN20R | - | - | - | - | High Performance Seal | - | - | - | €1,893.13 | |
 |
CRSTF-PN39 | 2 7/16" | 5 3/4" | 7.63" | 2 14/25" | Multi-Lip Contact Seal | 1250 RPM | 11789 lbs. | 5 1/8" | €831.12 | |
|
CRSTF-PN31 | 1 15/16" | 4.63" | 5 22/25" | 2.19" | Multi-Lip Contact Seal | 1500 RPM | 7889 lbs. | 4" | €705.99 | |
|
CRSTF-PN24 | 1 1/2" | 4 1/2" | 5.69" | 2.13" | Multi-Lip Contact Seal | 1750 RPM | 7340 lbs. | 4" | €584.65 | |
 |
CRSTF-PN19 | 1 3/16" | 4" | 4 11/25" | 1 3/4" | Multi-Lip Contact Seal | 2300 RPM | 4381 lbs. | 3 1/2" | €453.12 | |
 |
CRSTF-PN32 | 2" | 5 3/4" | 6 3/4" | 2 1/4" | Multi-Lip Contact Seal | 1350 RPM | 9752 lbs. | 5 1/8" | €691.24 | |
 |
CRSTF-PN23T | - | - | - | - | - | - | - | - | €550.72 |
