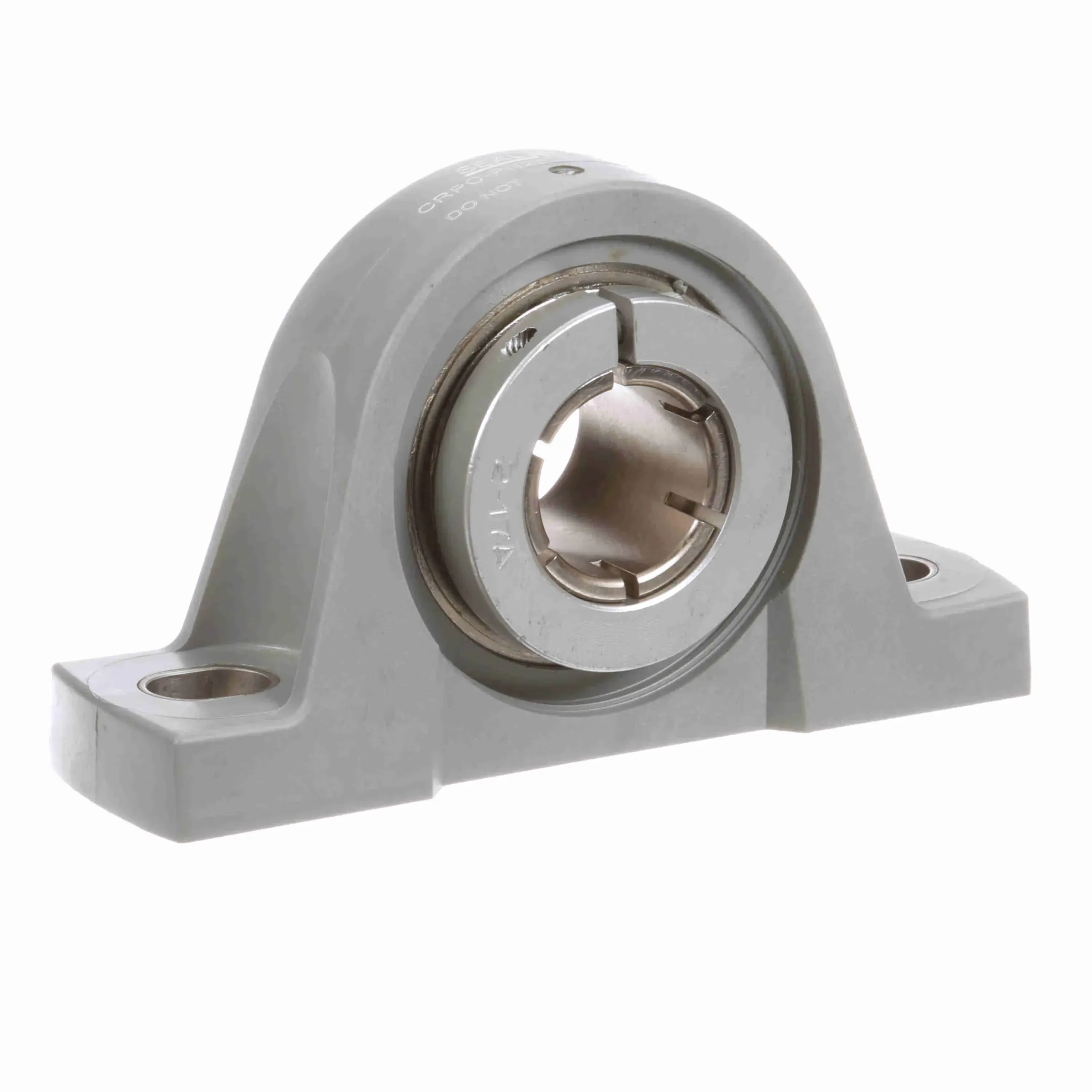

SEALMASTER CRPC-PN20T RMW 704867 Pillow Block Bearing, 2 Bolt, 1.25 Inch Bore, Concentric Collar Mount
Get it by Monday, Dec 22
€261.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | No |
| Base Length | 6 14/25" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5" |
| Bolt Spacing Max | 5.31" |
| Bolt Spacing Min | 4.69" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.06" |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.66" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Color | Light Gray |
| Housing Construction | One Piece |
| Housing Material | Composite |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.851" |
| Insert | PN-20T |
| Ip Rating | IP69K |
| Length Through Bore | 1 3/4" |
| Locking Collar Outside Diameter | 2 14/25" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 3.77" |
| Overall Length | 6 1/4" |
| Overall Width | 1 22/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRPC-PN14 | Set Screw | 7/8" | 5 1/2" | 1 1/2" | 2.81" | Multi-Lip Contact Seal | PN-14 | 2700 RPM | €171.29 | |
 |
CRPC-PN16T RMW | Concentric | 1" | 5 1/2" | 1 1/2" | 2.81" | Multi-Lip Contact Seal | PN-16T | 2700 RPM | €242.57 | |
 |
CRPC-PN208T | Concentric | 40 mm | 7 1/4" | 2.13" | 4.02" | Multi-Lip Contact Seal | PN-20T | 1750 RPM | €280.70 | |
|
CRPC-PN24T RMW | Concentric | 1 1/2" | 7 1/4" | 2.13" | 4.02" | Multi-Lip Contact Seal | PN-24T | 1750 RPM | €280.39 | |
 |
CRPC-PN19T | Concentric | 1 3/16" | 5 1/2" | 1.86" | 3.33" | Multi-Lip Contact Seal | PN-19T | 2300 RPM | €211.09 | |
 |
CRPC-PN20RT RMW | - | - | - | - | - | High Performance Seal | - | - | €1,048.75 | |
 |
CRPC-PN19 | Set Screw | 1 3/16" | 5 1/2" | 1.86" | 3.33" | Multi-Lip Contact Seal | PN-19 | 2300 RPM | €190.52 |
