SEALMASTER CRFTC-PN12T 711415 Flange-Mount Ball Bearing Unit, 3/4 Inch Bore
Get it by Tuesday, Sep 1
€164.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Backside Shield/seal | Optional Backside Shield Available Order Separate |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing | 3.531" |
| Bore Dia. | 3/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 2611 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 11/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Light Gray |
| Housing Construction | One Piece |
| Housing Material | Composite |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-12T |
| Inside Ring Outside Dia. | 1.192" |
| Ip Rating | IP69K |
| Length Through Bore | 1 7/25" |
| Locking Collar Outside Dia. | 1 3/4" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3100 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.39" |
| Overall Length | 4.47" |
| Overall Width | 2 11/25" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-012 |
| Static Load Rating | 1444 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0907 cPS |
| Vibration Frequency Outer Ring Defect | 0.0593 cPS |
| Vibration Frequency Roller Spin | 0.0381 cPS |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 13.34 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Bore Dia. | Bolt Size | Overall Height | Housing Color | Foot Height | Overall Width | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

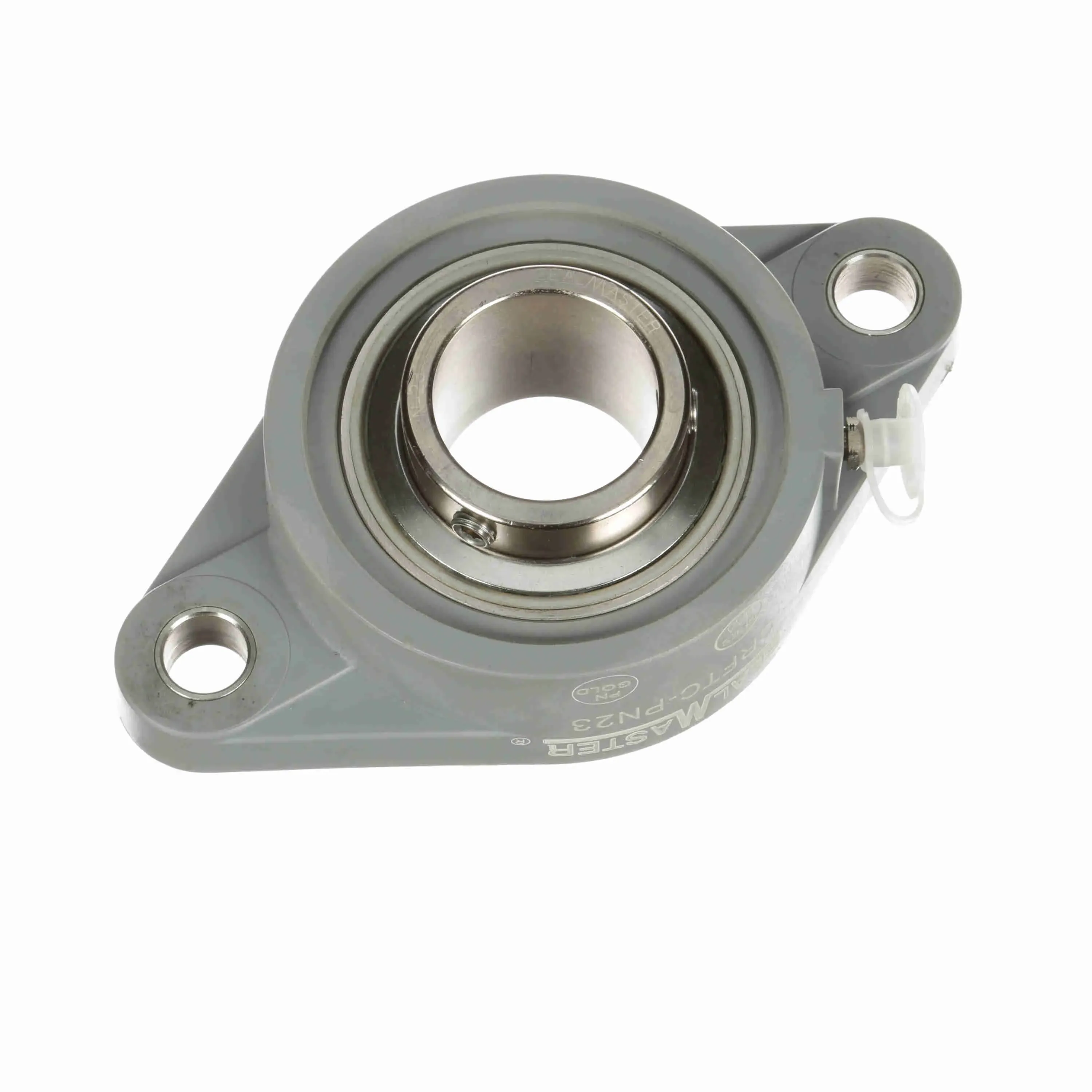

CRFTC-PN23 | Composite | 1 7/16" | 1/2" | 1 3/4" | Light Gray | 14/25" | 3.7" | 5782 lbs. | €228.77 | |
 |

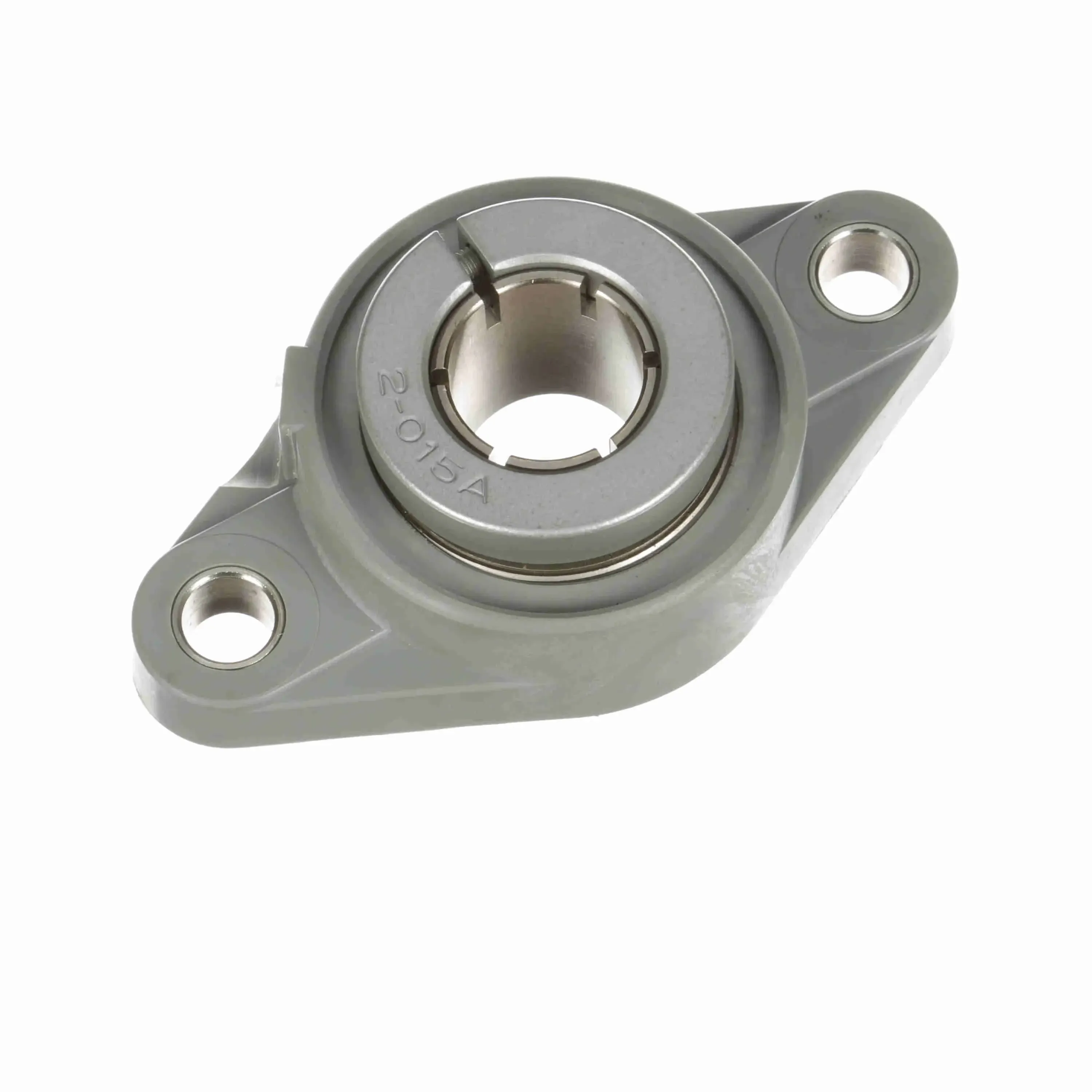

CRFTC-PN16T RMW | Composite | 1" | 7/16" | 1.475" | Light Gray | 0.53" | 2 18/25" | 2801 lbs. | €178.70 | |
 |

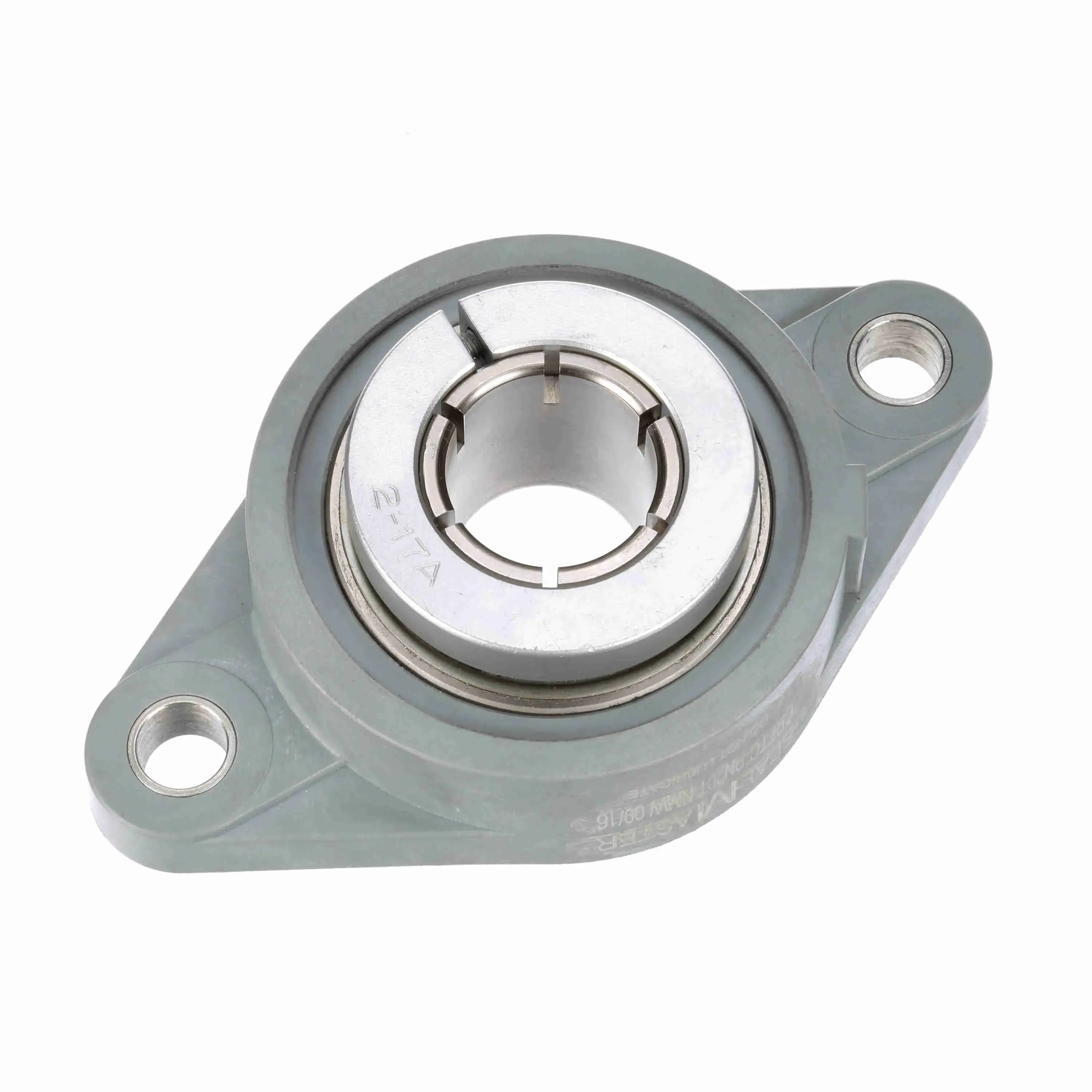

CRFTC-PN20T RMW | Composite | 1 1/4" | 1/2" | 1.81" | Light Gray | 14/25" | 3.7" | 5782 lbs. | €251.00 | |
 |

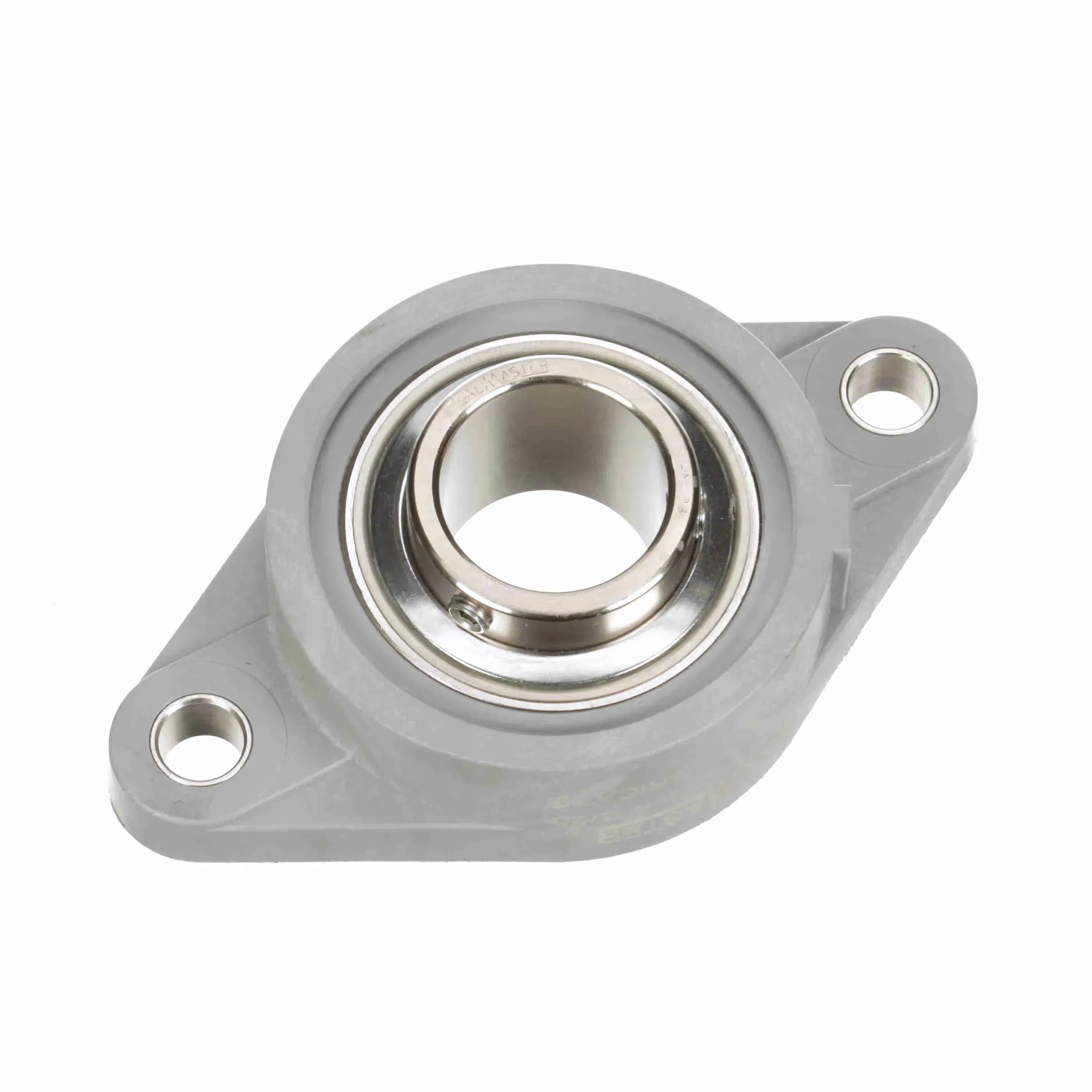

CRFTC-PN23 RMW | Composite | 1 7/16" | 1/2" | 1 3/4" | Light Gray | 14/25" | 3.7" | 5782 lbs. | €228.77 | |
|
CRFTC-PN23T RMW | Composite | 1 7/16" | 1/2" | 1.81" | Light Gray | 14/25" | 3.7" | 5782 lbs. | €251.00 | |
 |

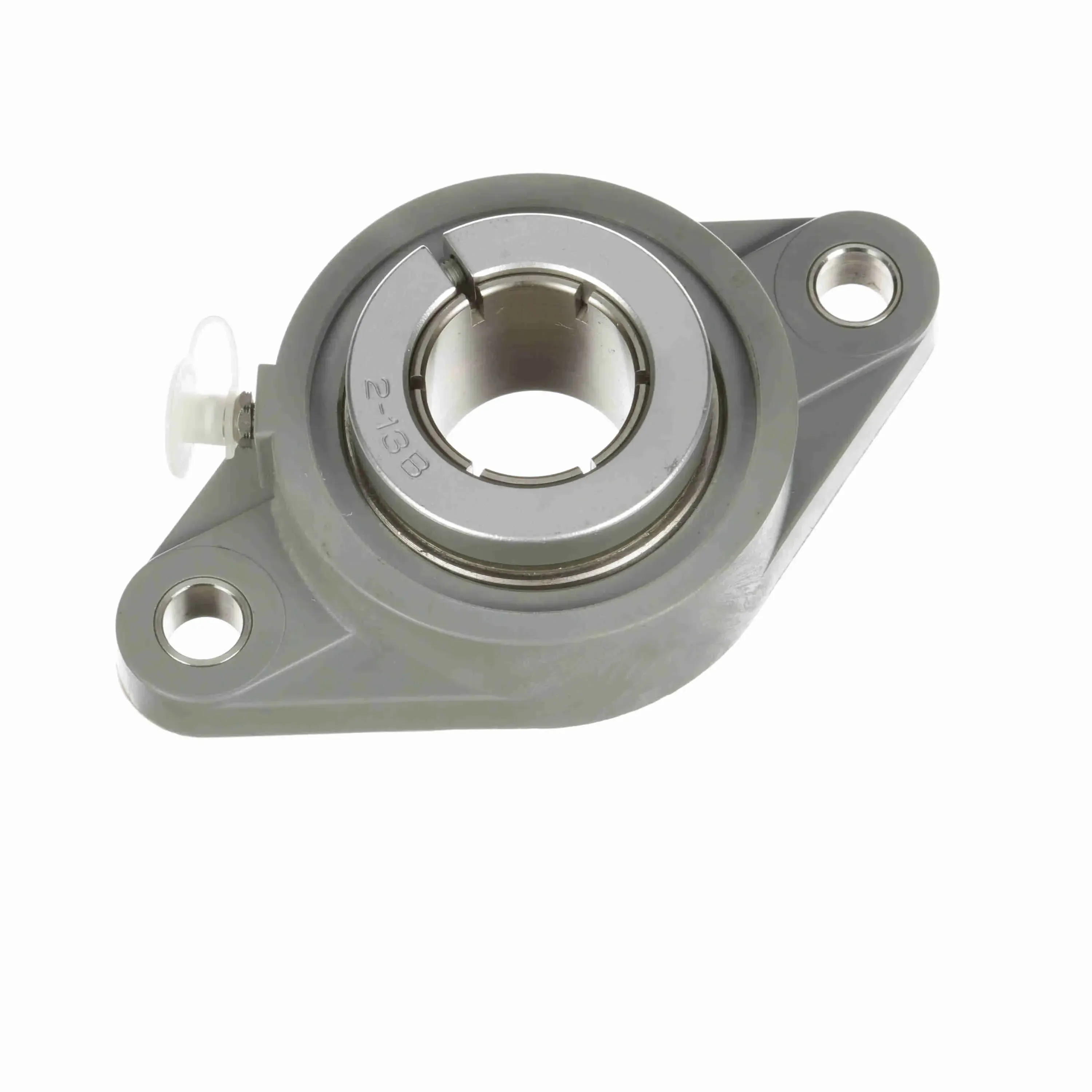

CRFTC-PN23T | Composite | 1 7/16" | 1/2" | 1.81" | Light Gray | 14/25" | 3.7" | 5782 lbs. | €251.00 | |
|
CRFTC-PN19T | Composite | 1 3/16" | 7/16" | 1.563" | Light Gray | 0.53" | 3 1/4" | 4381 lbs. | €208.91 |
