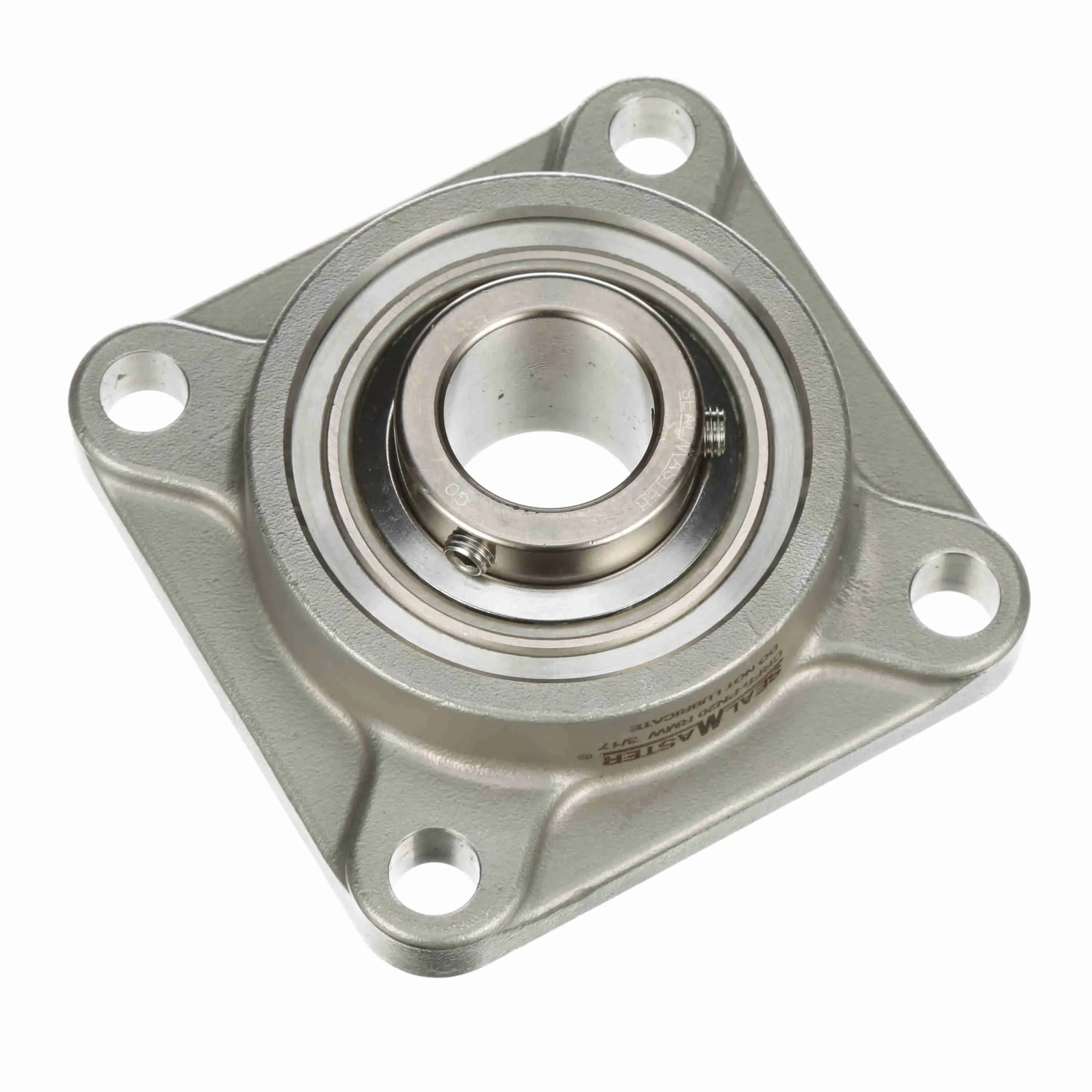

SEALMASTER CRFS-PN20 RMW 711168 Flange Bearing, 4 Bolt, 1.25 Inch Dia, Setscrew Locking, High Performance Seal
Get it by Tuesday, Sep 1
€323.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | No |
| Backside Shield/seal | Optional Backside Shield Available Order Separate |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 3 5/8" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Backside Inside Dia. | 3.31" |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-20 |
| Inside Ring Outside Dia. | 1.86" |
| Ip Rating | IP69K |
| Length Through Bore | 1.69" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1 3/4" |
| Overall Length | 4.63" |
| Overall Width | 4.63" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 1.85 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Type | Rolling Element | Max. Operating Temp. | Bolt Size | Overall Height | Foot Height | Grease Fitting Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRFS-PN32 | 2" | Flange, Four Bolt | Ball Bearing | 220°F | 5/8" | 2.313" | 0.81" | 1/8" | €632.53 | |
 |
CRFS-PN35 | 2 3/16" | Flange, Four Bolt | Ball Bearing | 220°F | 5/8" | 2.313" | 0.81" | 1/8" | €632.53 | |
 |
CRFS-PN32R RMW | - | Four Bolt Flange | Ball | - | - | - | - | - | €556.16 | |
|
CRFS-PN31T RMW | 1 15/16" | Flange, Four Bolt | Ball Bearing | 220°F | 9/16" | 2.156" | 14/25" | 1/8" | €510.21 | |
|
CRFS-PN36 | - | - | - | - | - | - | - | - | €656.25 | |
 |
CRFS-PN24 RMW | 1 1/2" | Flange, Four Bolt | Ball Bearing | 220°F | 1/2" | 2.016" | 14/25" | 1/4"-28 | €347.41 | |
 |
CRFS-PN208T | 40 mm | Flange, Four Bolt | Ball Bearing | 220°F | 1/2" | - | 14/25" | 1/4"-28 | €381.17 |
