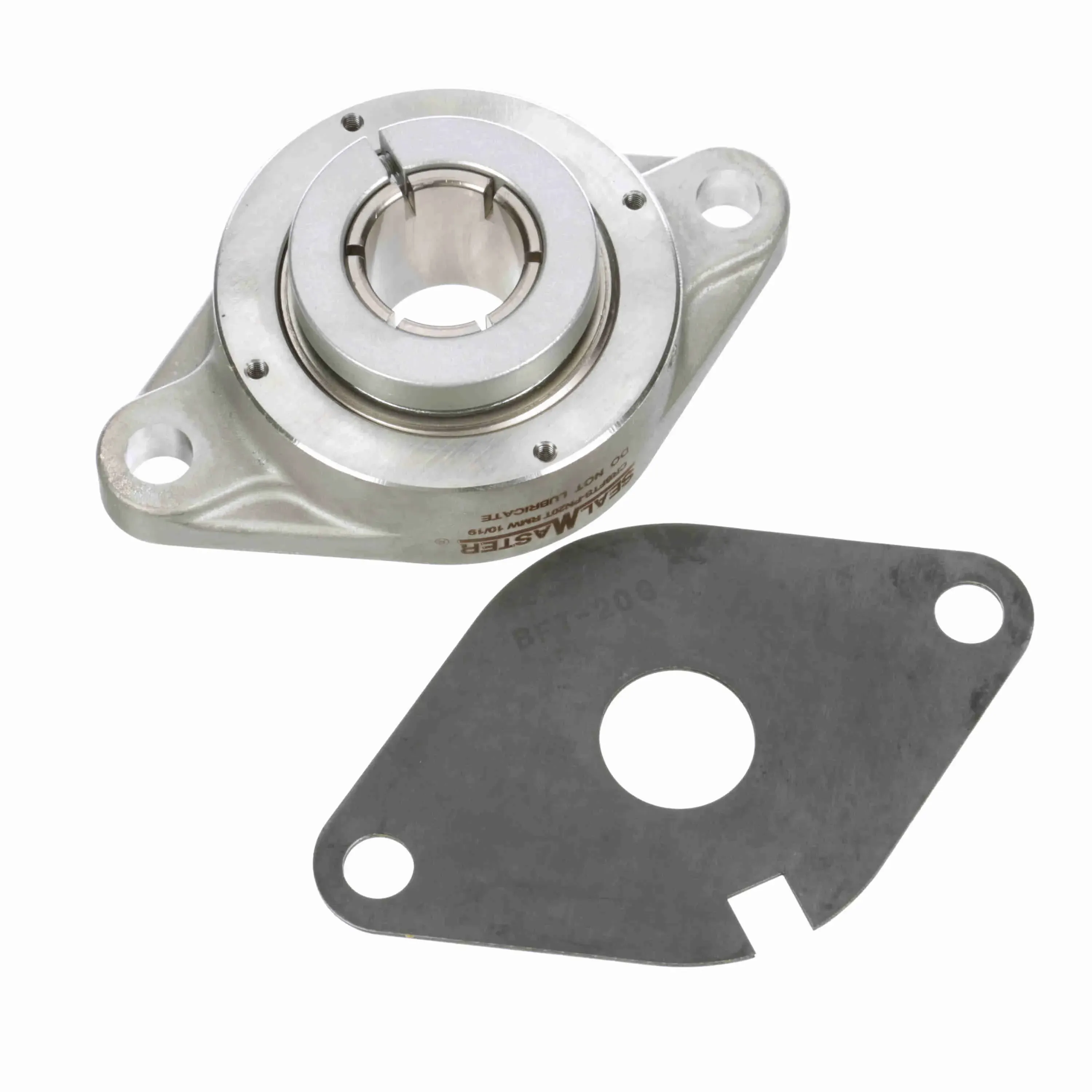

SEALMASTER CRBFTS-PN20T RMW 713953 Flange Block Bearing, 2 Bolt Flange Block, 1-1/4 Inch Bore, 5.1 Inch Bolt Dia
Get it by Tuesday, Sep 1
€369.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Ability To Relubricate | No |
| Backside Shield/seal | Backside Shield Included Loose In Box |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5 1/8" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-20T |
| Inside Ring Outside Dia. | 1.859" |
| Ip Rating | IP69K |
| Length Through Bore | 1.81" |
| Locking Collar Outside Dia. | 2 14/25" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1.81" |
| Overall Length | 6.13" |
| Overall Width | 3 3/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 0.89 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Bolt Size | Overall Height | Foot Height | Length Through Bore | Overall Width | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

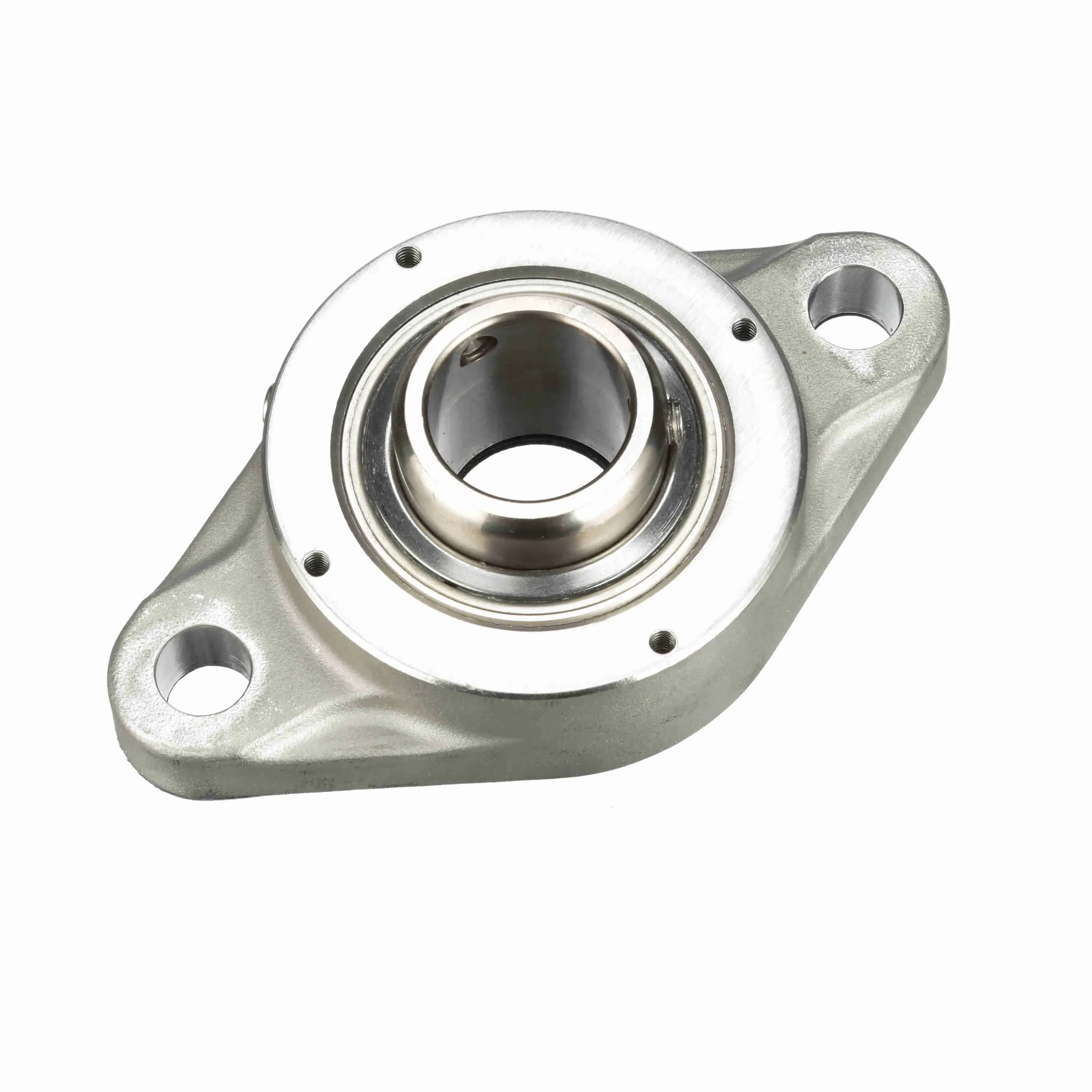

CRBFTS-PN16 RMW | 1" | Multi-Lip Contact Seal | 7/16" | 1.438" | 0.53" | 1 3/8" | 2 3/4" | 2801 lbs. | €257.18 | |
 |
CRBFTS-PN32 NBS | 2" | Triple Lip Contact Seal | - | - | - | - | - | - | €3,018.01 | |
 |

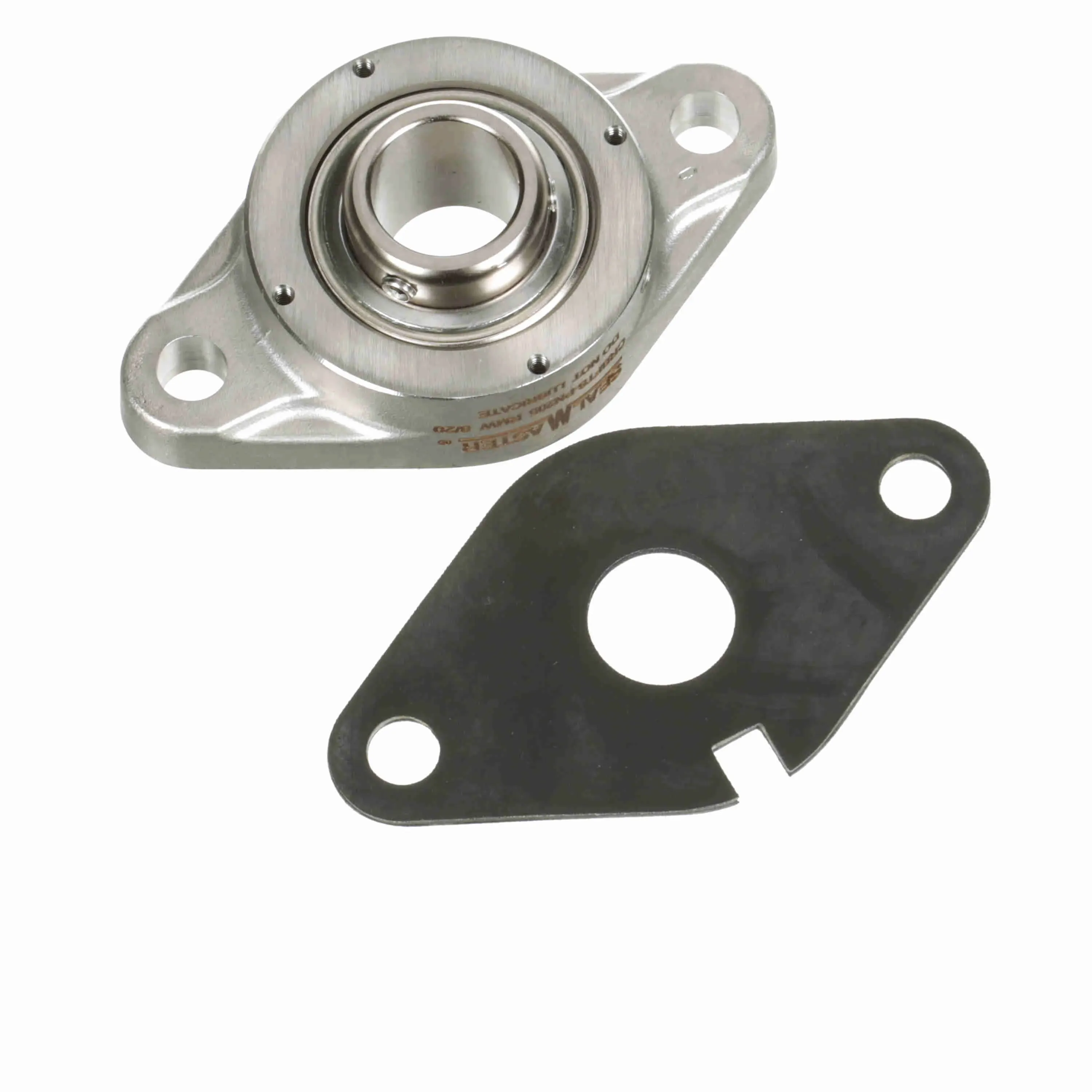

CRBFTS-PN205 RMW | 25 mm | Multi-Lip Contact Seal | 7/16" | 1.438" | 0.53" | 1 3/8" | 2 3/4" | 2801 lbs. | €257.18 | |
|
CRBFTS-PN208T RMW | - | - | - | - | - | - | - | - | €694.80 | |
 |

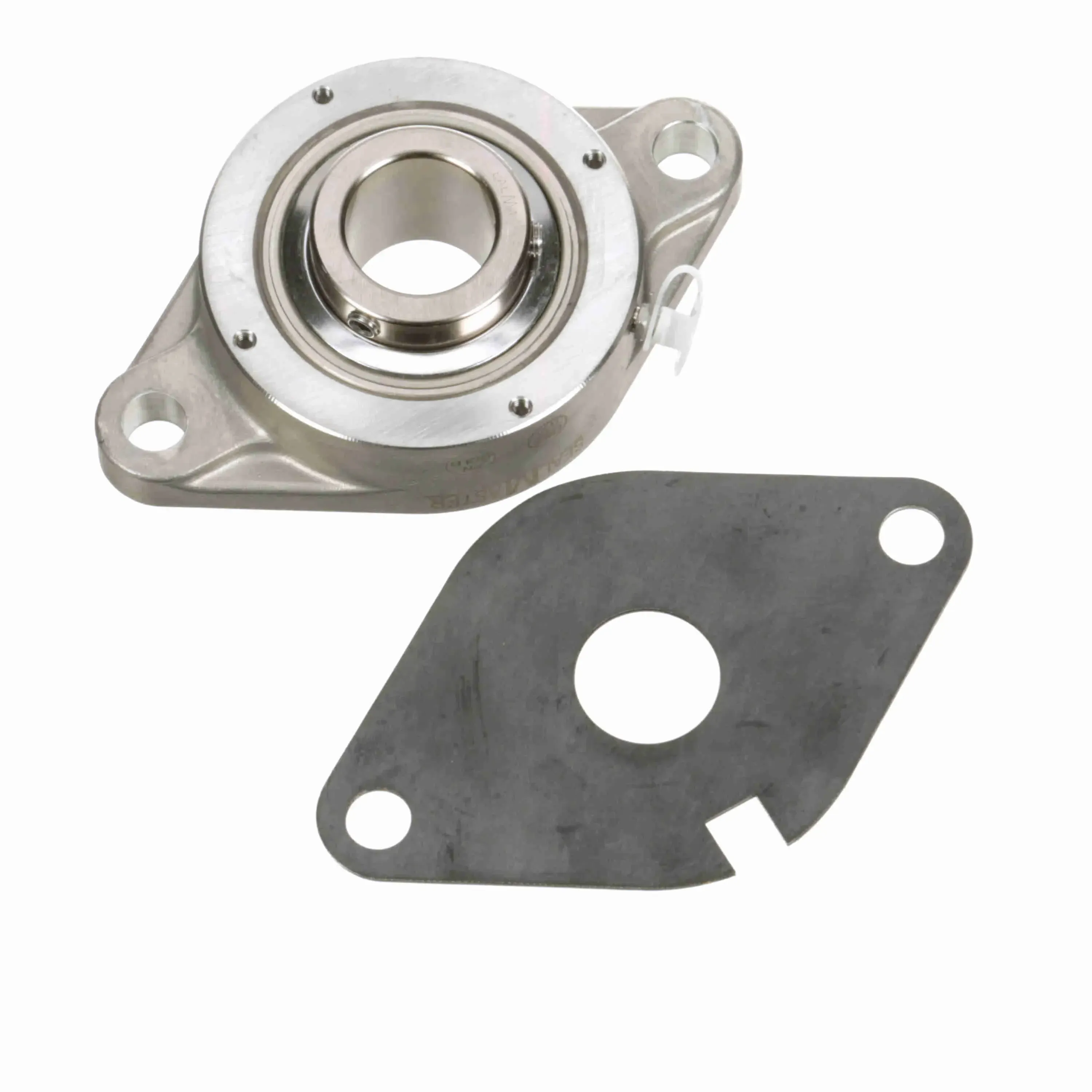

CRBFTS-PN23 | 1 7/16" | Multi-Lip Contact Seal | 1/2" | 1 3/4" | 14/25" | 1.688" | 3 3/4" | 5782 lbs. | €354.52 | |
 |

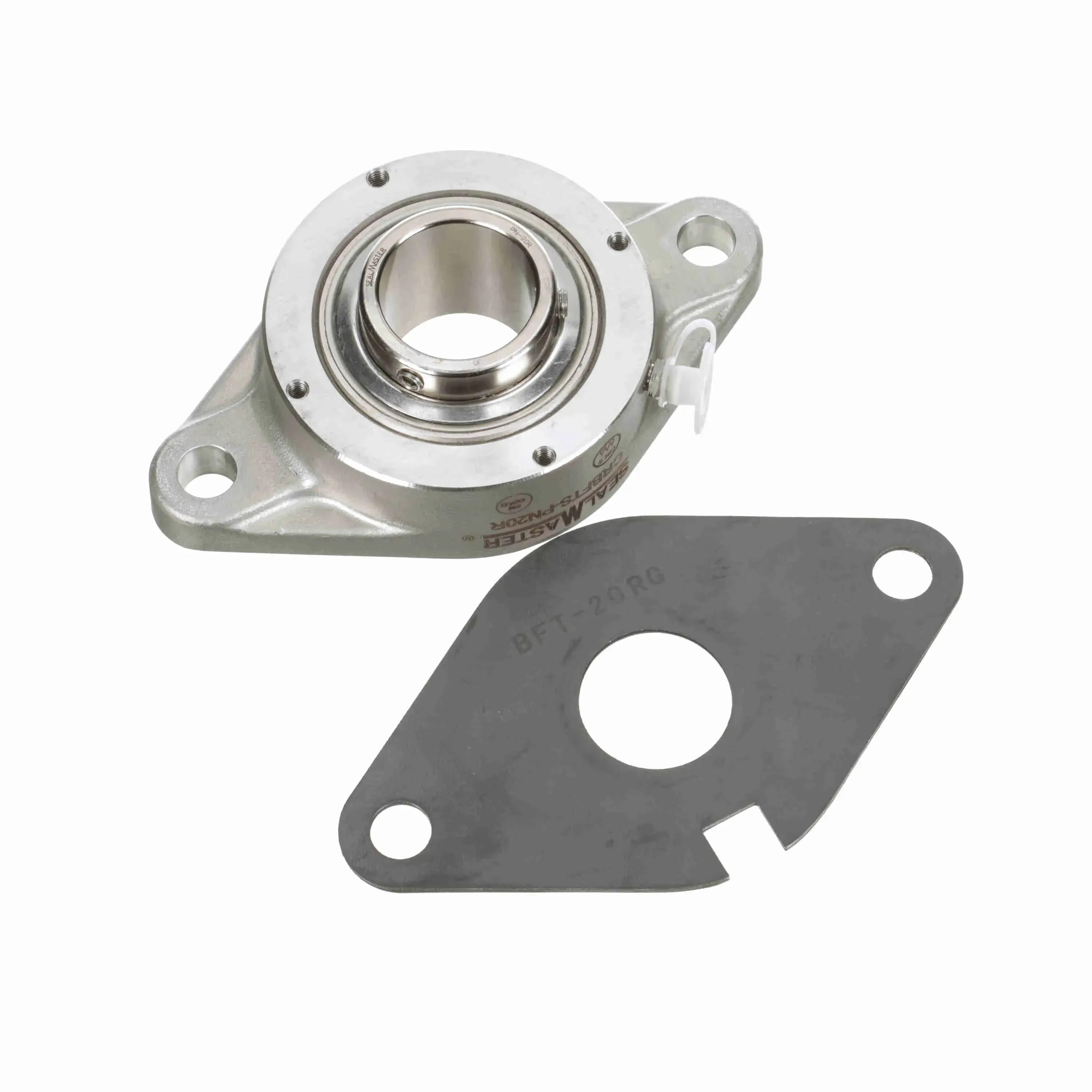

CRBFTS-PN20R | 1 1/4" | Multi-Lip Contact Seal | 7/16" | 1.563" | 0.53" | 1 1/2" | 3 1/4" | 4381 lbs. | €297.57 | |
|
CRBFTS-PN31 RMW | 1 15/16" | Multi-Lip Contact Seal | 9/16" | 2.156" | 14/25" | 2.094" | 4 14/25" | 7889 lbs. | €502.23 |
