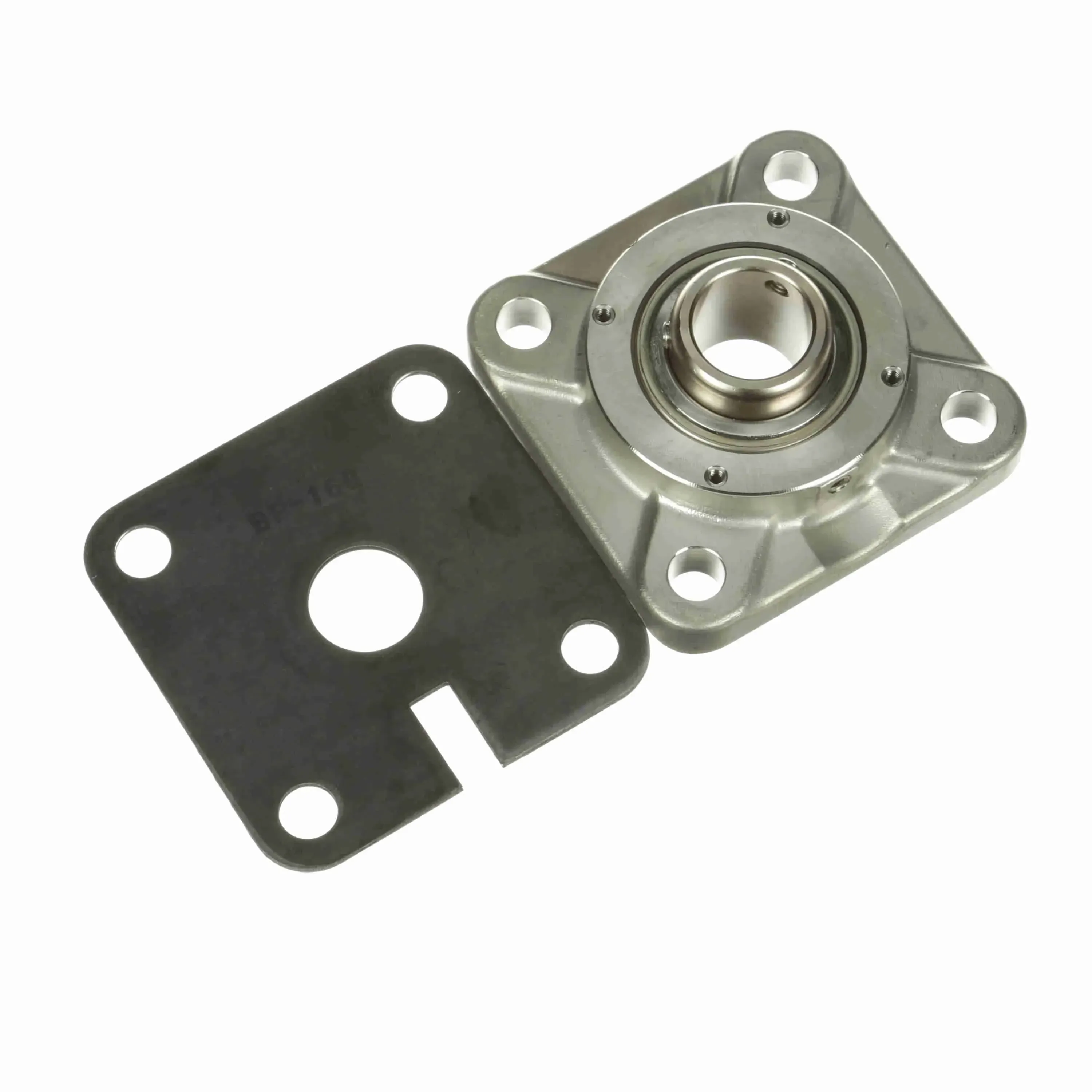

SEALMASTER CRBFS-PN19 RMW 706908 Flange Bearing, 4 Bolt, 1.1875 Inch Dia, Setscrew Locking, High Performance Seal
Get it by Wednesday, Dec 17
€312.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | No |
| Backside Shield/seal | Backside Shield Included Loose In Box |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 7/16" |
| Bolt Spacing | 3 1/4" |
| Bore Dia. | 1 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.53" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Backside Inner Diameter | 2.88" |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.594" |
| Insert | PN-19 |
| Ip Rating | IP69K |
| Length Through Bore | 1 1/2" |
| Lube Fitting Type | Housing Plugged |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2300 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Operating Temperature Range | -20°F to +220°F |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1.563" |
| Overall Height To End Cap | 1.93" |
| Overall Length | 4 1/4" |
| Overall Width | 4 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Setscrew Torque | 45 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 1.37 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Price | |
|---|---|---|---|---|---|
 |

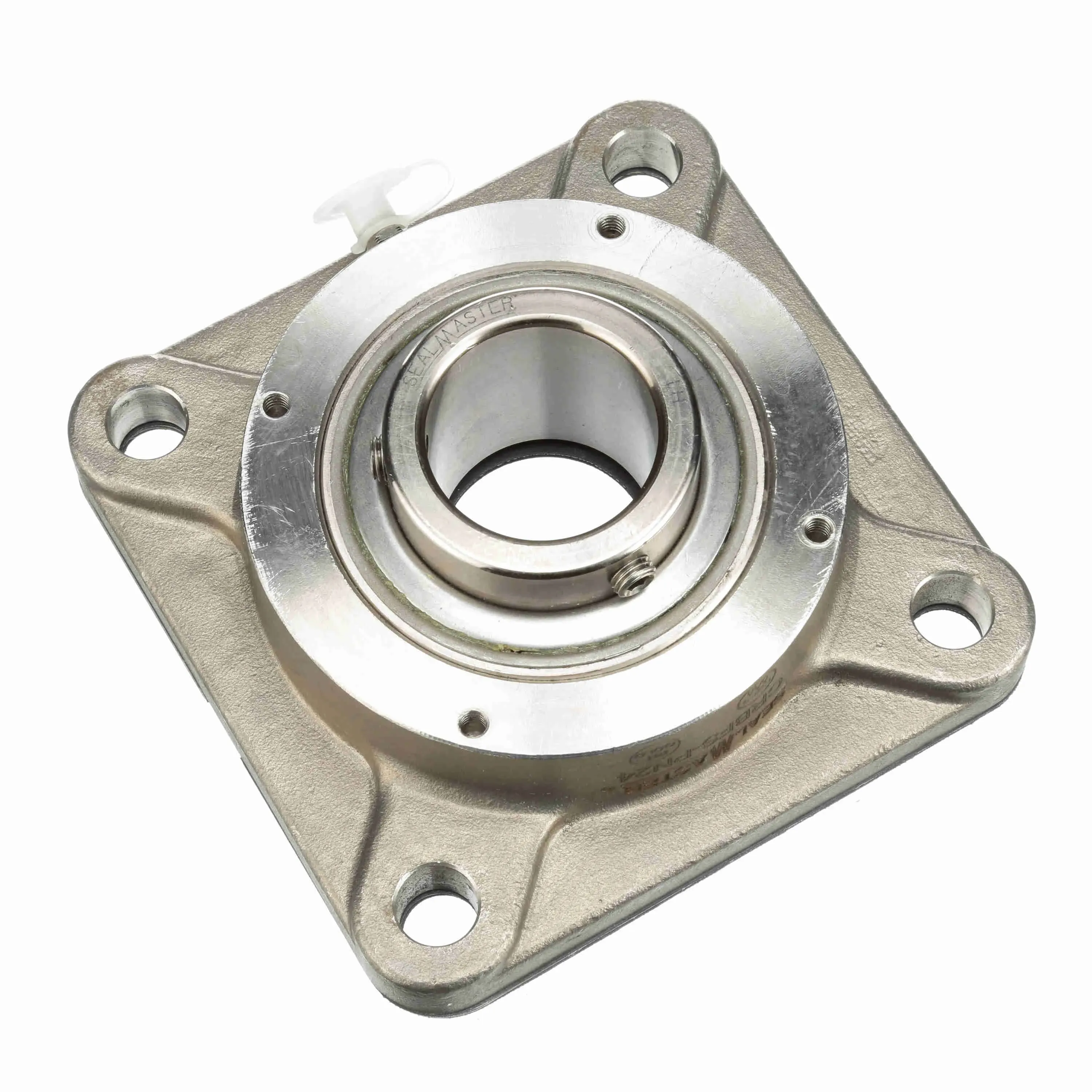

CRBFS-PN35 | 2 3/16" | Stainless Steel | €703.73 | |
 |

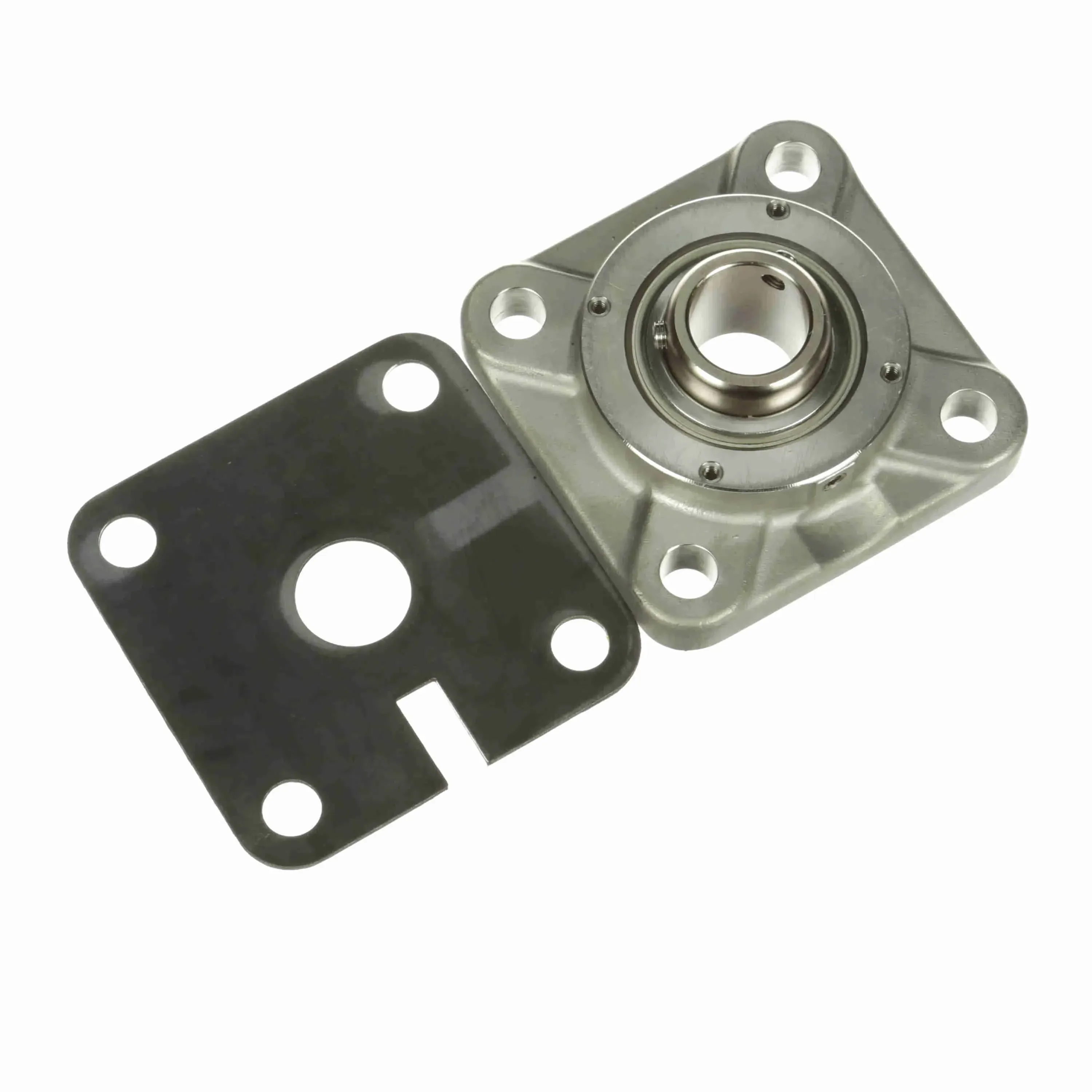

CRBFS-PN20 RMW | 1 1/4" | Stainless Steel | €372.36 | |
 |

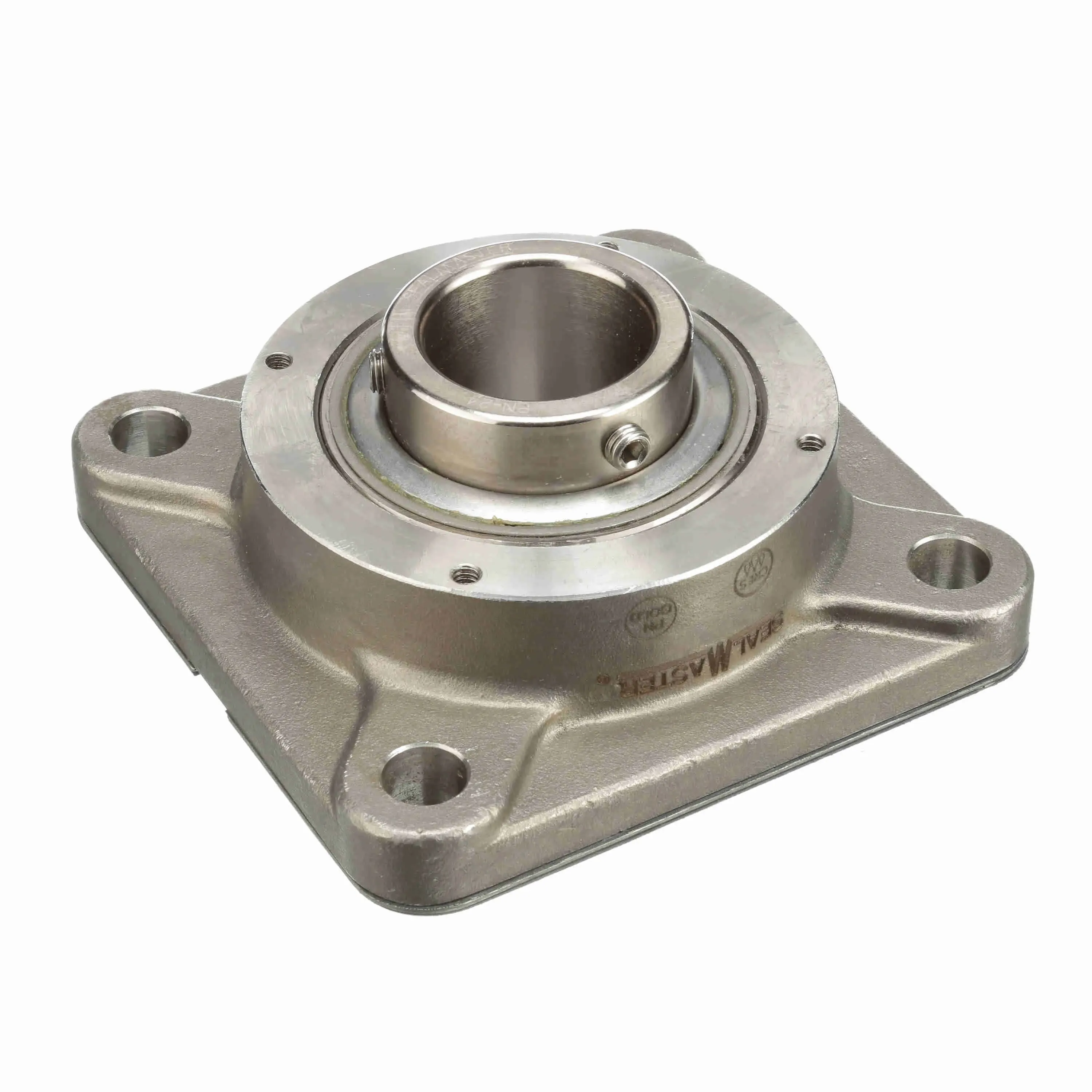

CRBFS-PN206 RMW | - | - | €1,548.95 | |
|
CRBFS-PN24 | 1 1/2" | Stainless Steel | €399.41 | |
 |
CRBFS-PN212 RMW | - | - | €668.01 | |
 |

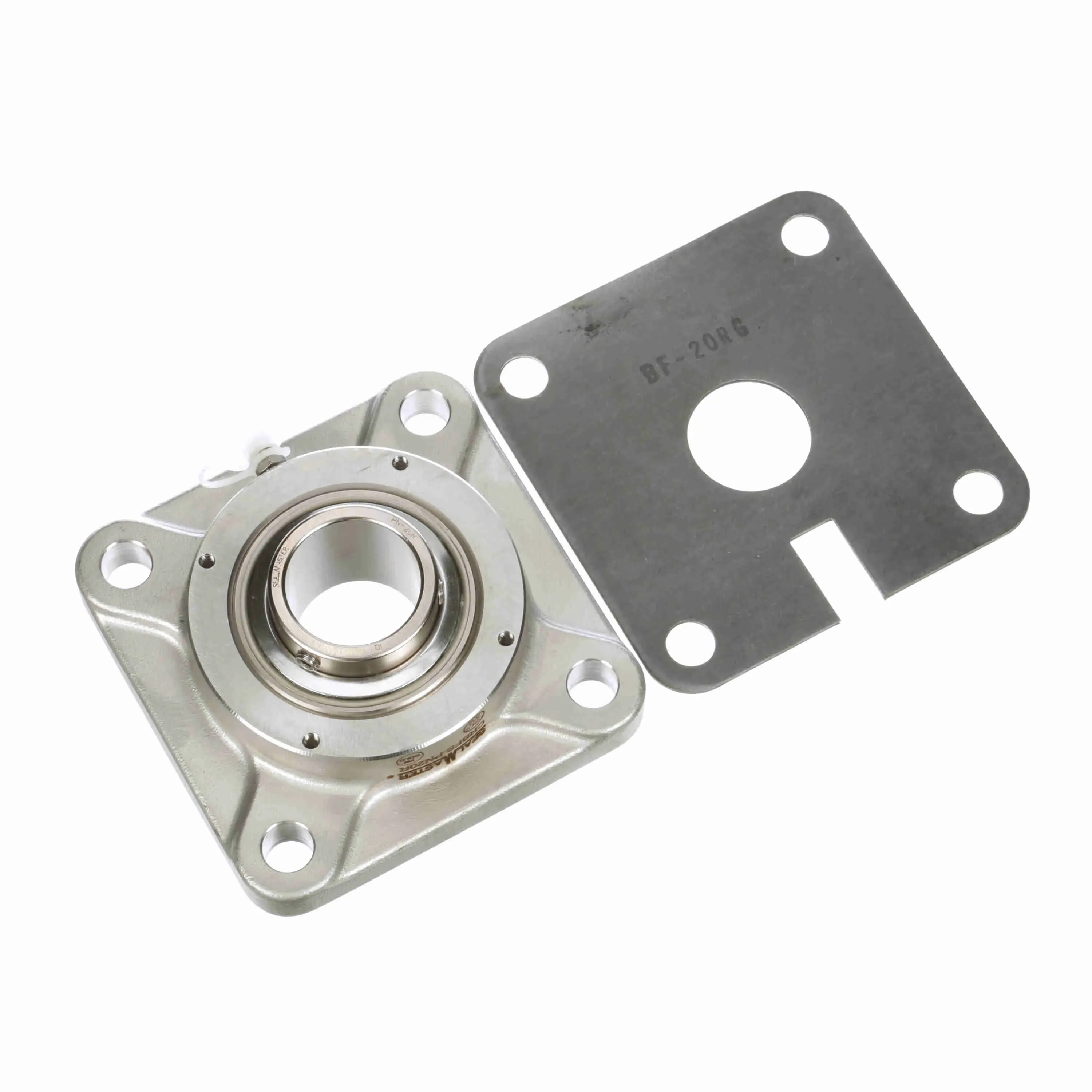

CRBFS-PN20R | 1 1/4" | Stainless Steel | €300.86 | |
|
CRBFS-PN24 RMW | 1 1/2" | Stainless Steel | €384.04 |
