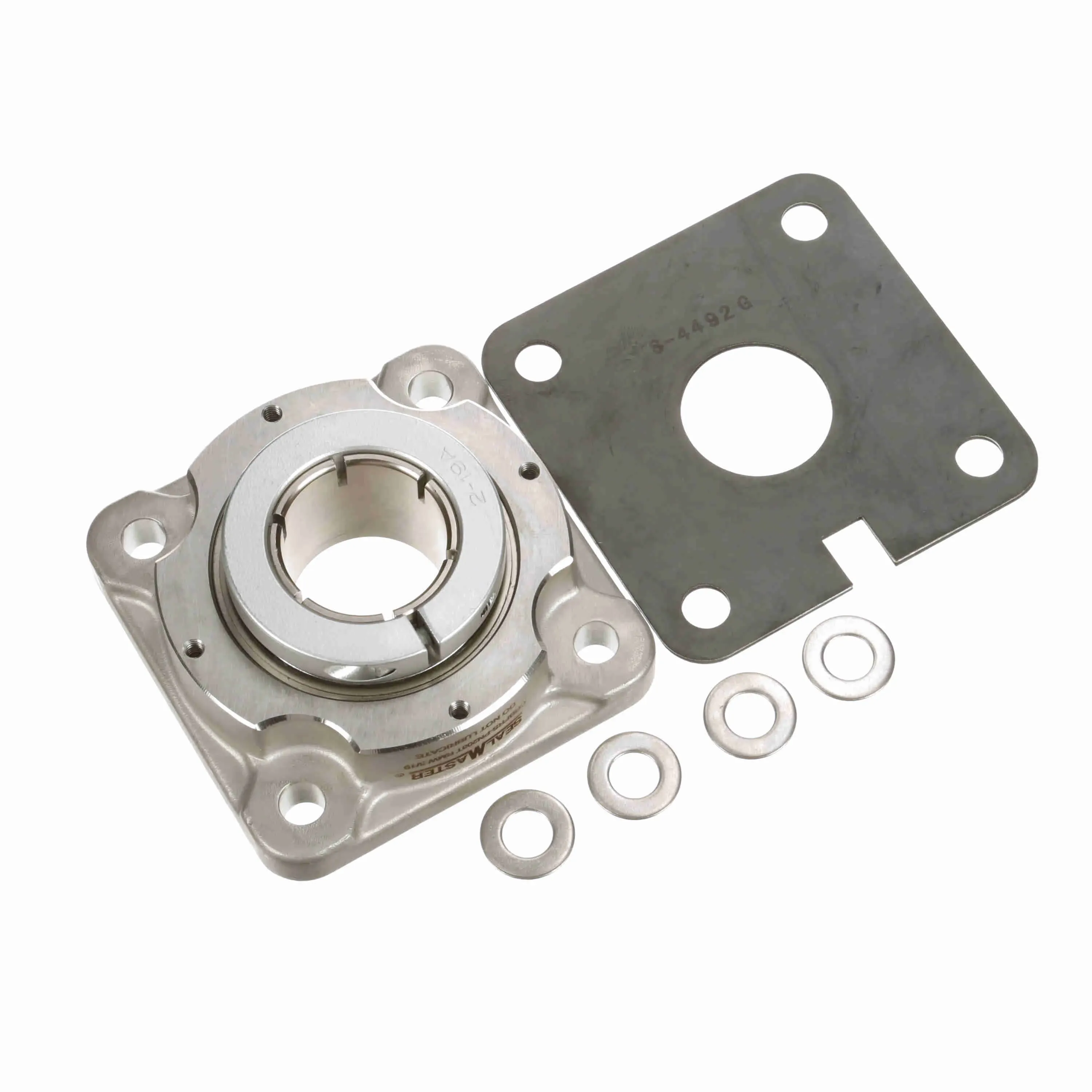

SEALMASTER CRBFRS-PN208T RMW 713983 Flange Bearing, 4 Bolt, 40mm Dia, Skwezloc Locking, High Performance Seal
Get it by Tuesday, Sep 1
€371.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | No |
| Backside Shield/seal | Backside Shield Included Loose In Box |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 3 1/4" |
| Bore Dia. | 40 mm |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Backside Inside Dia. | 3 1/2" |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | SK-2555 |
| Inside Ring Outside Dia. | 2.07" |
| Ip Rating | IP69K |
| Length Through Bore | 1 49/64" |
| Locking Collar Outside Dia. | 2 3/4" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 1750 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1 13/16" |
| Overall Length | 5.13" |
| Overall Width | 5.13" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Length Through Bore | Overall Width | Dynamic Load Capacity | Size Code | Inside Ring Outside Dia. | Locking Collar Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRBFRS-PN23T RMW | 1 7/16" | 1.81" | 1 3/4" | 4.63" | 5782 lbs. | 2-17 | 1.86" | 2 14/25" | €360.54 | |
 |

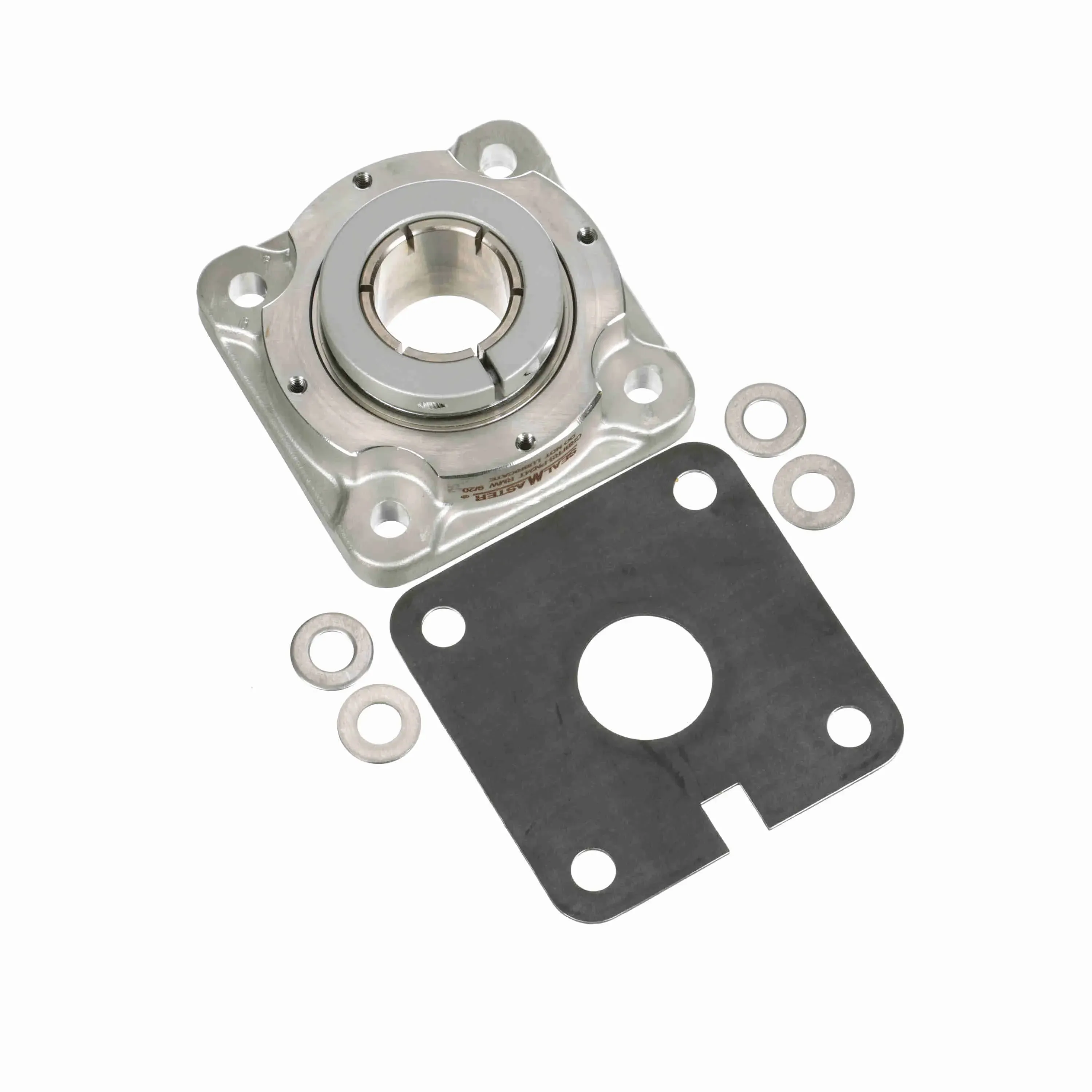

CRBFRS-PN24T RMW | 1 1/2" | 1 13/16" | 1 49/64" | 5.13" | 7340 lbs. | 2-19 | 2.07" | 2 3/4" | €336.22 |
