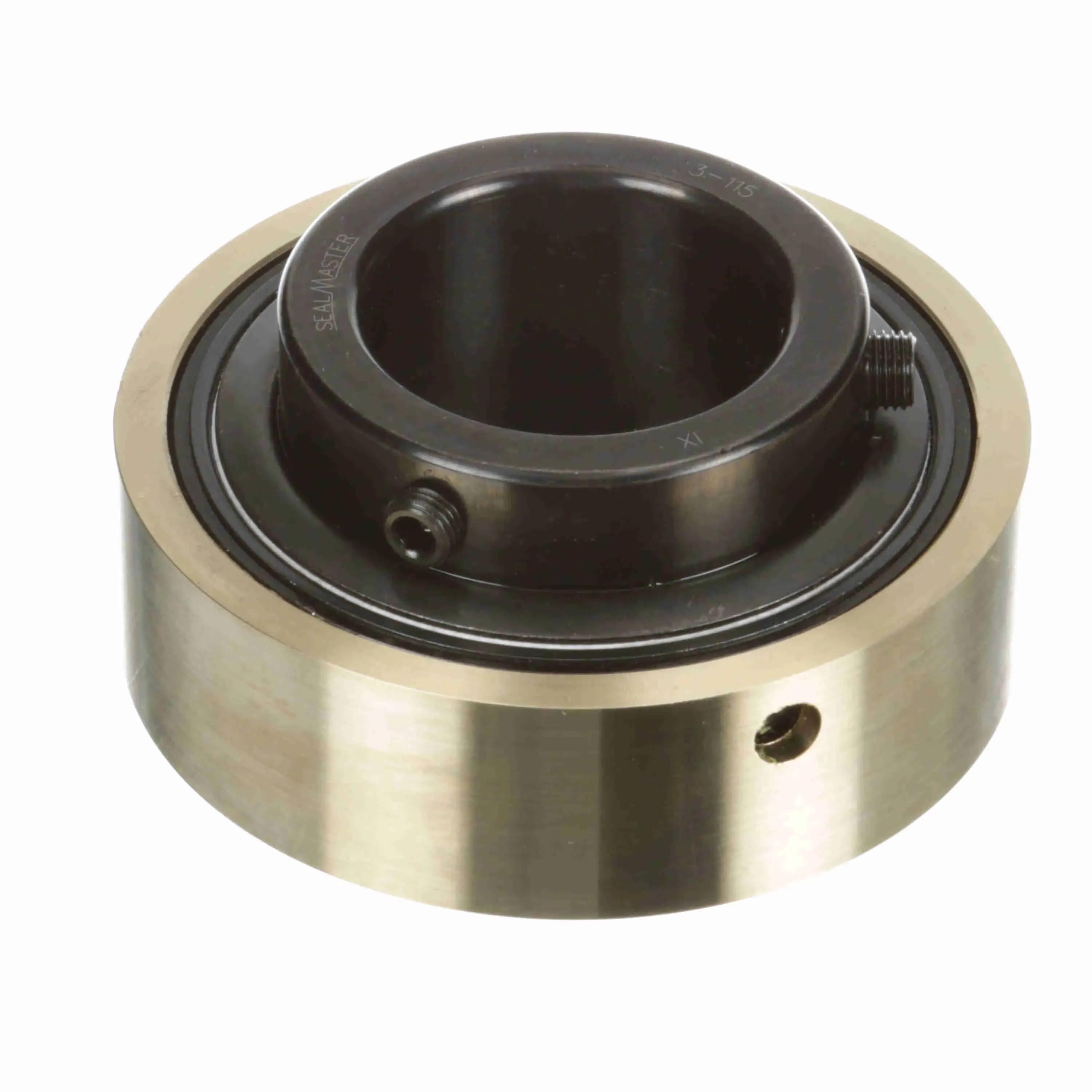

SEALMASTER AR-3-115 701206 Insert Bearing, 1.93 Inch Bore, 2.18 Inch Length Thru Bore, 1-17/64 Inch Outer Race Width
Get it by Tuesday, Sep 1
€530.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.313" |
| Duty Series | Medium Series |
| Dynamic Radial Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2.188" |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Inside Ring Outside Dia. | 2.719" |
| Internal Clearance | Standard |
| Locking Type | Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3250 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1.266" |
| Outer Ring Land Profile | Standard |
| Outside Race Outside Dia. | 4 1/4" |
| Overall Width | 2.188" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 6601 lbs. |
| Radius | 2/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | AR |
| Set Screw Thread Size | 3/8"-24 |
| Type Of Seal | Felt Labyrinth Seal |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 10.8 |
| Country of Origin | MX |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Retainer Type | Duty Series | Inner Race Length | Outside Race Outside Dia. | Max. Operating Temp. | Rolling Element | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AR-2-13 | - | 1 3/16" | Land Riding Retainer | Standard Series | 1 1/2" | 2.687" | 220°F | Ball Bearing | €290.53 | |
 |
AR-2-22 | Standard Felt Seal | - | Land Riding Retainer | - | - | - | - | - | €634.83 | |
 |
AR-2-1TC | - | 1" | Land Riding Retainer | Standard Series | 1.438" | 2.272" | 220°F | Ball Bearing | €245.84 | |
 |
AR-3-3 | Felt | - | Brass | Medium | 3 1/4" | 5 7/8" | 250°F | Ball | €6,362.52 | |
 |
AR-2-1C | - | 1" | Land Riding Retainer | Standard Series | 1 3/8" | 2.272" | 220°F | Ball Bearing | €241.24 | |
 |
AR-2-23T | - | 2 3/16" | Land Riding Retainer | Standard Series | 2 1/4" | 4 1/4" | 220°F | Ball Bearing | €541.87 | |
 |
AR-3-111T | Felt | - | Brass | Standard | 2 3/32" | 3 7/8" | 250°F | Ball | €463.10 |
