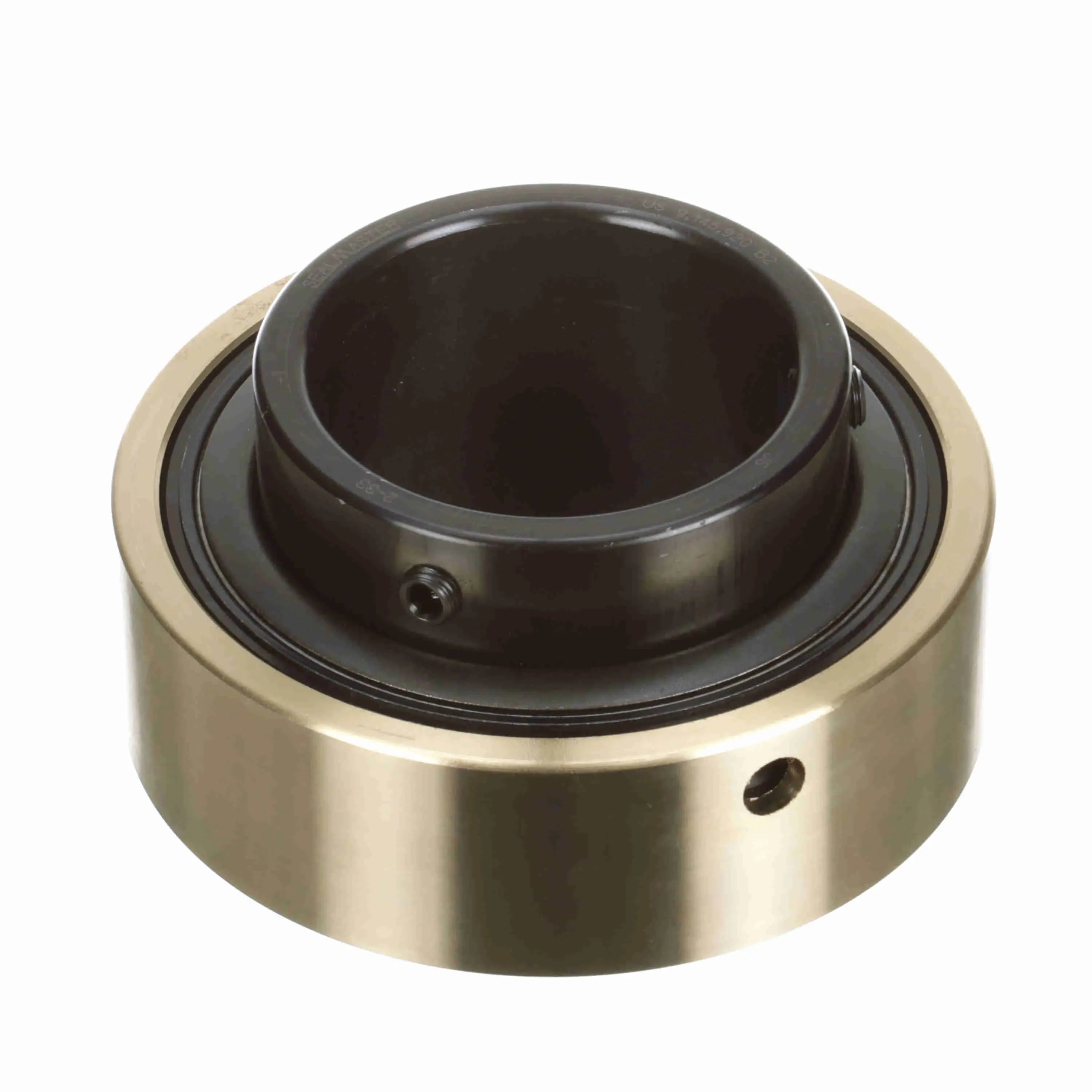

SEALMASTER AR-2-33 701190 Insert Bearing, 3.18 Inch Bore, 3.25 Inch Length Thru Bore, 1.82 Inch Outer Race Width
Item: BD9AFTModel: AR-2-33Cross Ref: 701190
7 In Stock
Ships within 2 days via
€2,150.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 3 3/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Centerline To Front Face | 1.938" |
| Duty Series | Standard , Standard Series |
| Dynamic Load Capacity | 17412 lbs. |
| Dynamic Radial Load Capacity | 17412 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | No |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 4" |
| Housing Type | Insert Only |
| Htc | 8482.10.5056 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 3 1/4" |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Inside Dia. | 3 3/16" |
| Inside Ring Outside Dia. | 3.922" |
| Internal Clearance | Standard |
| Length | 6" |
| Locking Device | Single Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2250 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Race Profile | Cylindrical |
| Outer Ring Land Profile | Standard |
| Outside Race Outside Dia. | 5 7/8" |
| Overall Width | 3 1/4" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 13174 lbs. |
| Radius | 3/25" |
| Seal Flinger | Yes |
| Seal Type | Felt |
| Series | AR |
| Set Screw Thread Size | 7/16"-20 |
| Shaft Size | 3 3/16" |
| Type Of Seal | Felt Labyrinth Seal |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 4.19 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Outside Race Outside Dia. | Retainer Type | Duty Series | Inner Race Length | Max. Operating Temp. | Rolling Element | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AR-2-13 | - | 1 3/16" | 2.687" | Land Riding Retainer | Standard Series | 1 1/2" | 220°F | Ball Bearing | €290.53 | |
 |
AR-2-22 | Standard Felt Seal | - | - | Land Riding Retainer | - | - | - | - | €634.83 | |
 |
AR-2-1TC | - | 1" | 2.272" | Land Riding Retainer | Standard Series | 1.438" | 220°F | Ball Bearing | €245.84 | |
 |
AR-3-3 | Felt | - | 5 7/8" | Brass | Medium | 3 1/4" | 250°F | Ball | €6,362.52 | |
 |
AR-2-1C | - | 1" | 2.272" | Land Riding Retainer | Standard Series | 1 3/8" | 220°F | Ball Bearing | €410.15 | |
 |
AR-2-23T | - | 2 3/16" | 4 1/4" | Land Riding Retainer | Standard Series | 2 1/4" | 220°F | Ball Bearing | €541.87 | |
 |
AR-3-111T | Felt | - | 3 7/8" | Brass | Standard | 2 3/32" | 250°F | Ball | €463.10 |
