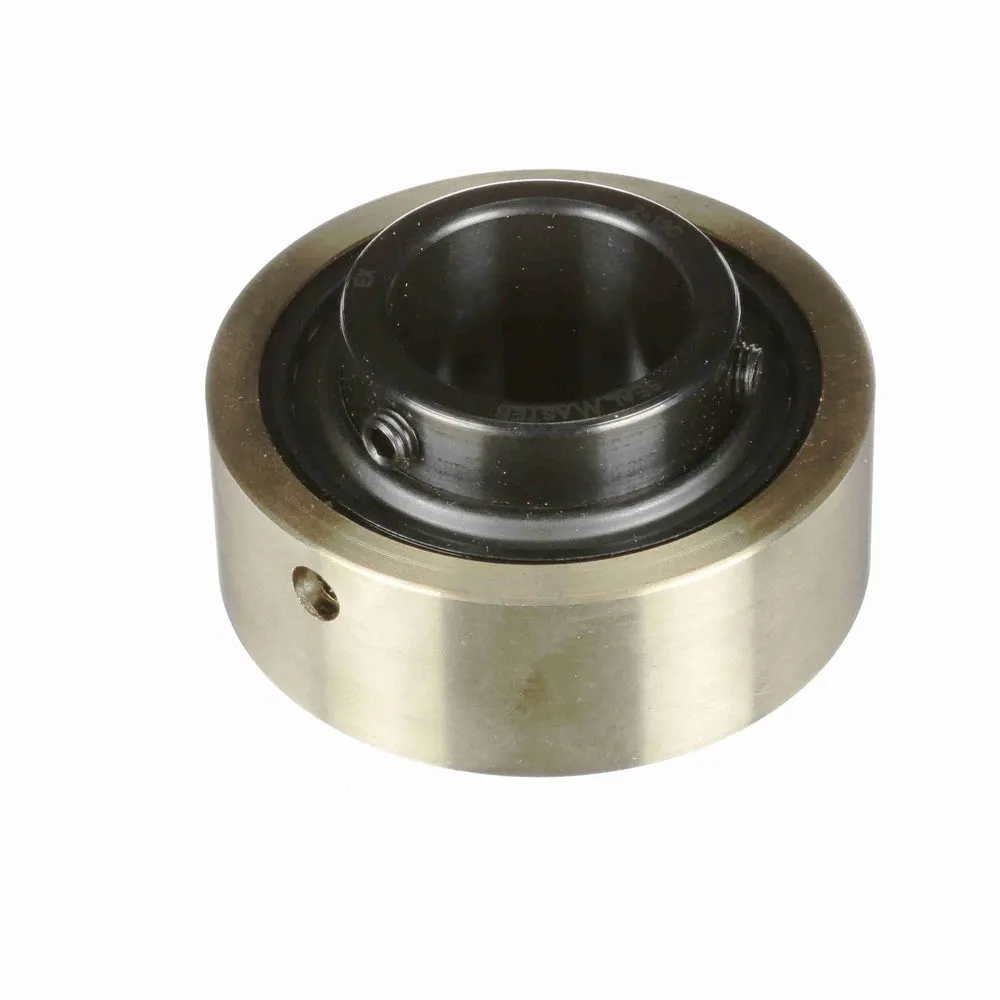

SEALMASTER AR-2-13C Insert Bearing, 1.18 Inch Bore, 1.5 Inch Length Thru Bore, 61/64 Inch Outer Race Width
Get it by Tuesday, Jul 14
€296.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Angle Of Misalignment | -2° to +2° |
| Bearing Design | Expansion |
| Bearing Insert Coating | Black Oxide |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Ball Bearing |
| Bore Shape | Straight |
| Bore Type | Round Bore |
| Cage Material | Brass |
| Centerline To Front Face | 7/8" |
| Dynamic Radial Load Capacity | 4381 lbs. |
| Enclosure | Double Sealed |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, AR Series |
| Fillet Radius | 1/25" |
| Housing Type | Insert Only |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert Material | Bearing Steel, Black Oxided |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Double Setscrew Locking Collar |
| Locking Type | Set Screws |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5450 RPM |
| Misalignment Angle | -2° to +2° |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| Overall Width | 1 1/2" |
| Radius | 0.04 |
| Relubricatable | Yes |
| Retainer Type | Land Riding |
| Seal Type | Single Lip Contact |
| Series | AR Series |
| Static Load Capacity | 2567 lbf. |
| Static Radial Load Capacity | 2567 lbs. |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 3.81 |
Product Variants
| Product | Model | Bore Dia. | Outer Ring Width | Seal Type | Dynamic Load Capacity | Max. Speed | Dynamic Radial Load Capacity | Cage Material | Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AR-2-13 | 1 3/16" | - | - | - | 5450 RPM | 4381 lbs. | - | Set Screw | €290.53 | |
 |
AR-2-22 | - | 1.266" | - | - | - | - | - | - | €634.83 | |
 |
AR-2-1TC | 1" | - | - | - | 6350 RPM | 2801 lbs. | Polyphenylene Sulfide | Concentric | €245.84 | |
 |
AR-3-3 | - | - | Felt | 17412 lbs. | - | - | - | - | €6,362.52 | |
 |
AR-2-1C | 1" | - | - | - | 6350 RPM | 2801 lbs. | Polyphenylene Sulfide | Set Screw | €241.24 | |
 |
AR-2-23T | 2 3/16" | - | - | - | 4500 RPM | 9752 lbs. | Polyphenylene Sulfide | Concentric | €541.87 | |
 |
AR-3-111T | - | - | Felt | 7889 lbs. | - | - | - | - | €463.10 |
