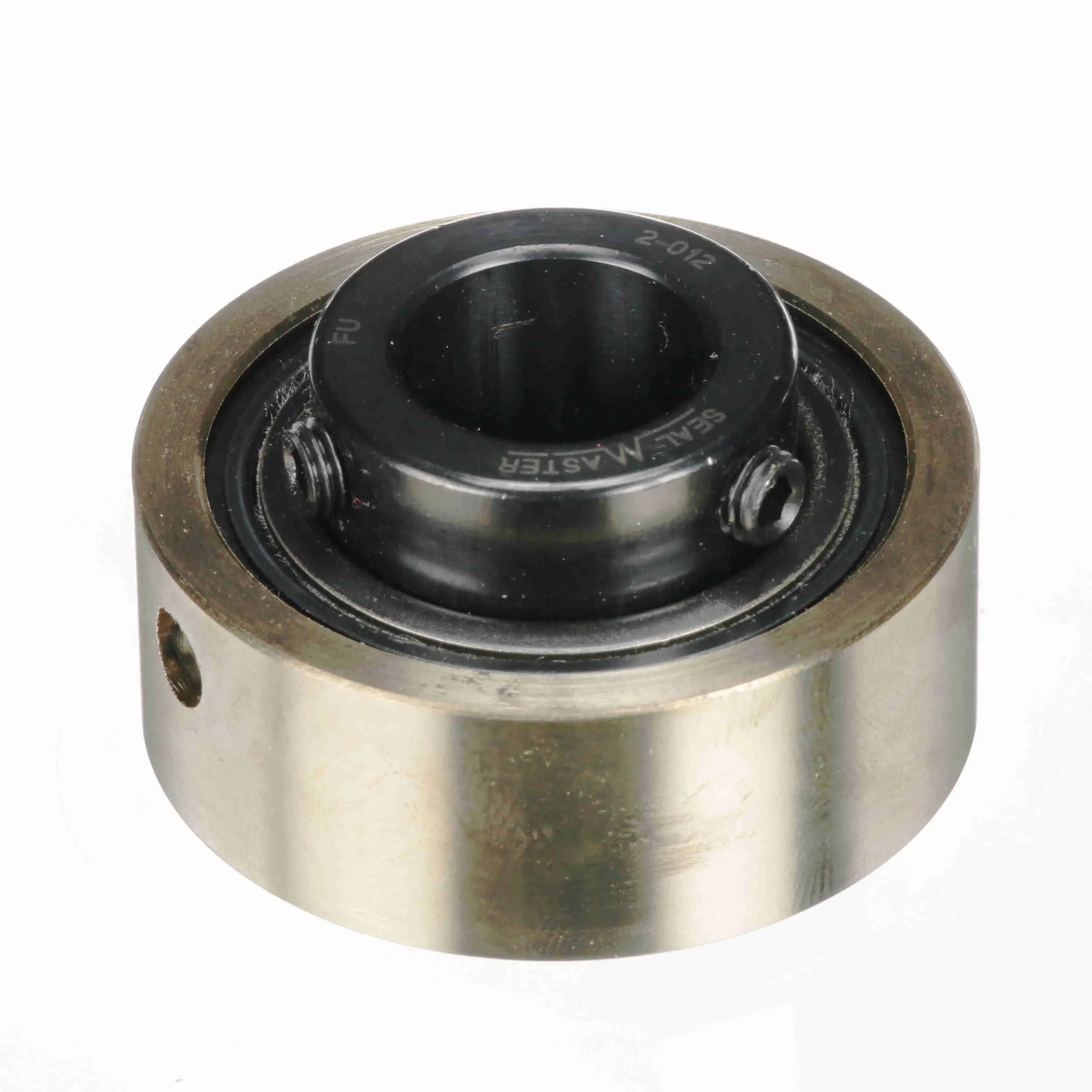

SEALMASTER AR-2-012 701156 Insert Bearing, 3/4 Inch Bore, 1-7/32 Inch Length Thru Bore, 49/64 Inch Outer Race Width
Get it by Friday, Dec 26
€210.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 3/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 0.719" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 2611 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5048 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.219" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 1.188" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 7300 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 2.062" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 0.766" |
| Outer Ring Land Profile | Standard |
| Overall Width | 1.219" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 1444 lbs. |
| Radius | 1/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | AR |
| Set Screw Thread Size | 1/4"-28 |
| Type Of Seal | Felt Labyrinth Seal |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.66 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 6.05 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Dynamic Load Capacity | Dynamic Radial Load Capacity | Max. Speed | Cage Material | Locking Type | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AR-2-13 | 1 3/16" | - | - | 4381 lbs. | 5450 RPM | - | Set Screw | 1 1/2" | €290.53 | |
 |
AR-2-22 | - | - | - | - | - | - | - | - | €634.83 | |
 |
AR-2-27D | - | - | - | - | - | - | - | - | €666.57 | |
 |
AR-2-1TC | 1" | - | - | 2801 lbs. | 6350 RPM | Polyphenylene Sulfide | Concentric | 1.438" | €245.84 | |
 |
AR-3-3 | - | Felt | 17412 lbs. | - | - | - | - | - | €6,362.52 | |
 |
AR-2-1C | 1" | - | - | 2801 lbs. | 6350 RPM | Polyphenylene Sulfide | Set Screw | 1 3/8" | €241.24 | |
 |
AR-2-23T | 2 3/16" | - | - | 9752 lbs. | 4500 RPM | Polyphenylene Sulfide | Concentric | 2 1/4" | €541.87 |
