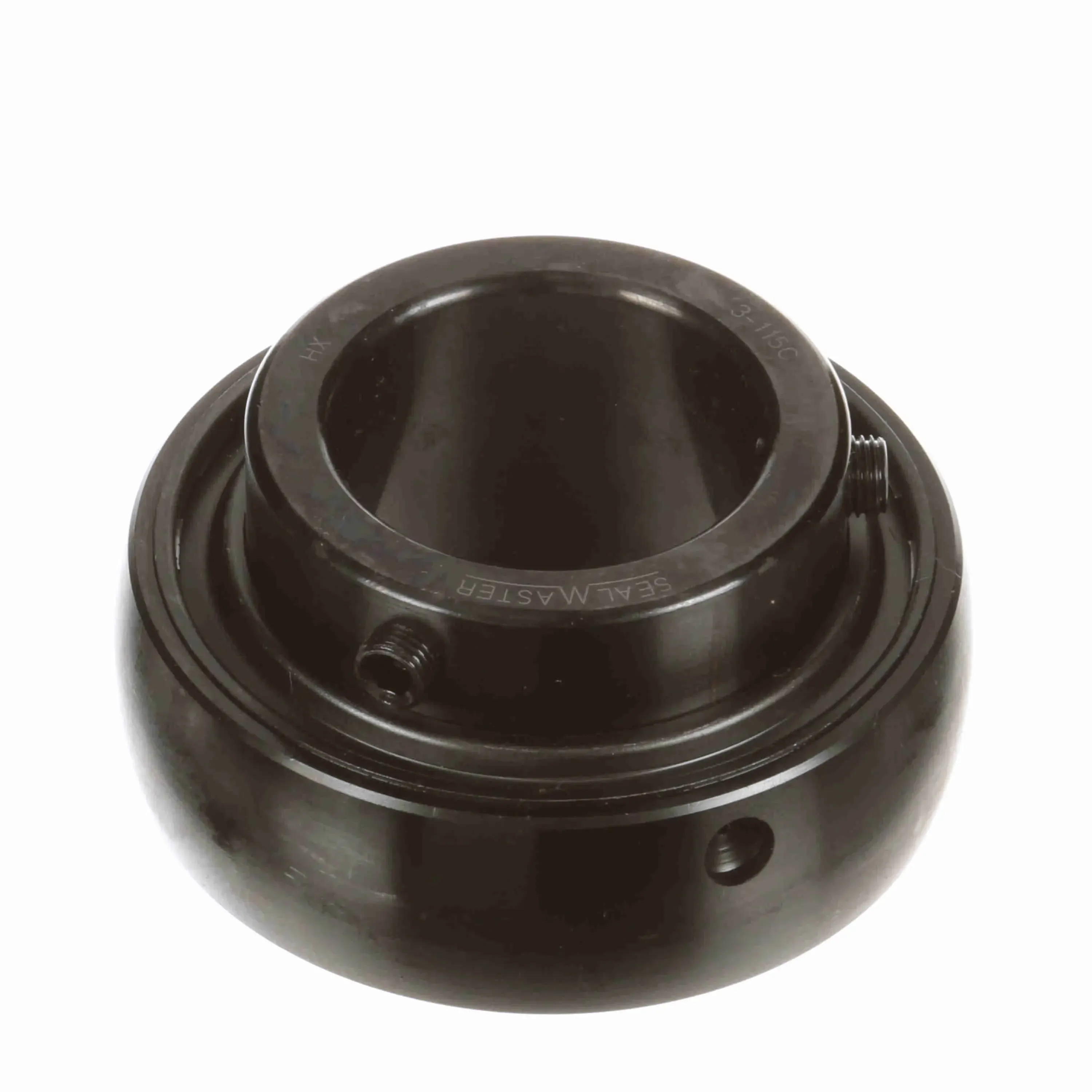

SEALMASTER 3-115C 703147 Insert Bearing, 1.93 Inch Bore, 2.18 Inch Length Thru Bore, 1.18 Inch Outer Race Width
Get it by Wednesday, Dec 17
€233.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.313" |
| Duty/series | Medium Series |
| Dynamic Radial Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2.188" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.719" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3250 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 3.937" |
| Outer Race Profile | Spherical |
| Outer Race Width | 1.188" |
| Outer Ring Land Profile | Standard |
| Overall Width | 2.188" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 6601 lbs. |
| Radius | 2/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Set Screw Thread Size | 3/8"-24 |
| Type Of Seal | Single Lip Contact Seal |
Shipping Info:
| Ship weight (kg) | 1.42 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 10.8 |
| Country of Origin | MX |
