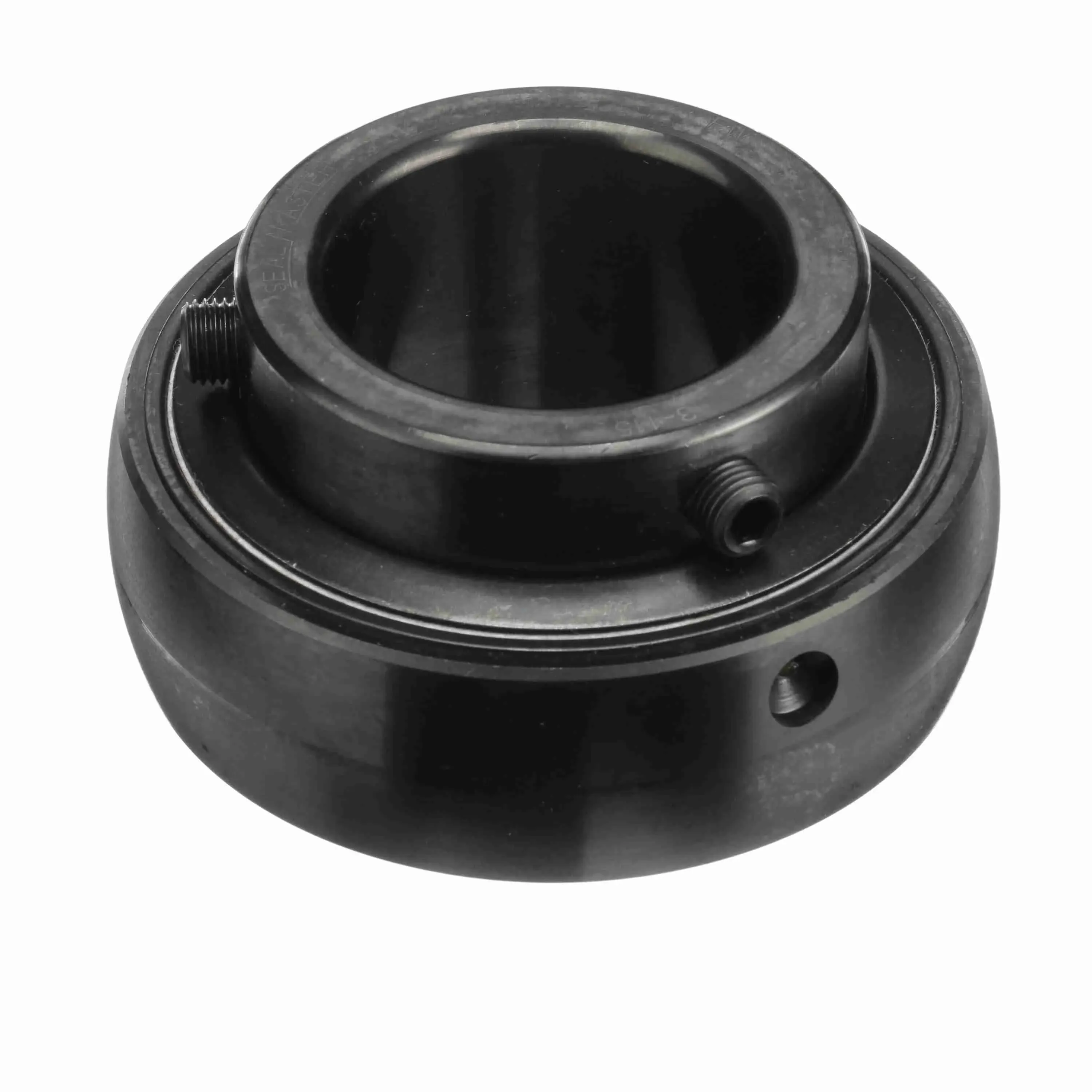

SEALMASTER 3-115 700080 Insert Bearing, 1 15/16 Inch Bore, 3 59/64 Inch OD, 1.188 Inch Outer Ring Wide
Item: BE7JPMModel: 3-115Cross Ref: 44A638 / 700080
7 In Stock
Ships within 2 days via
10.00% off
€386.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Abec Rating | 1 |
| Ability To Relubricate | Yes |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | 3-115 |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Shape | Spherical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 1 15/16" |
| Bore Diameter | 1 15/16" |
| Bore Diameter Tolerance | -0.0005" to 0" |
| Bore Shape | Straight |
| Centerline To Front Face | 1.313" |
| Closure | Double Sealed |
| Duty Series | Medium |
| Duty/series | Medium Series |
| Dynamic Radial Load Capacity | 9752 lbf. |
| End Cap | No |
| Features | 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only |
| Finish | Black Oxide |
| Fixed Vs. Expansion | No |
| For Environment | Highly Dusty And Dirty |
| Grade | Grade 52100 |
| Height | 4 1/4" |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| I.d. | 1 15/16" |
| Includes | Set Screws |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2.188" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Dia. | 2.719" |
| Inner Ring Outside Diameter | 2.719" |
| Inner Ring Width | 2.19" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Length | 4 1/4" |
| Load Direction | Radial |
| Locking Device | Single Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3250 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Outer Race Od | 3.937" |
| Outer Race Profile | Spherical |
| Outer Race Width | 1.188" |
| Outer Ring Land Profile | Standard |
| Outer Ring Width | 1.188" |
| Outside Diameter | 3 59/64" |
| Overall Width | 2.188" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 6601 lbf. |
| Radius | 2/25" |
| Retainer Type | Land Riding Retainer |
| Ring End To Center Width | 1.313" |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Set Screw Thread Size | 3/8"-24 |
| Shaft Locking Type | Set Screws |
| Shaft Size | 1.938" |
| Standards | Iso Certified 100-220 |
| Static Radial Load Capacity | 6601 lbf. |
| Type Of Seal | Felt Labyrinth Seal |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 1.41 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 10.8 |
| Country of Origin | MX |
