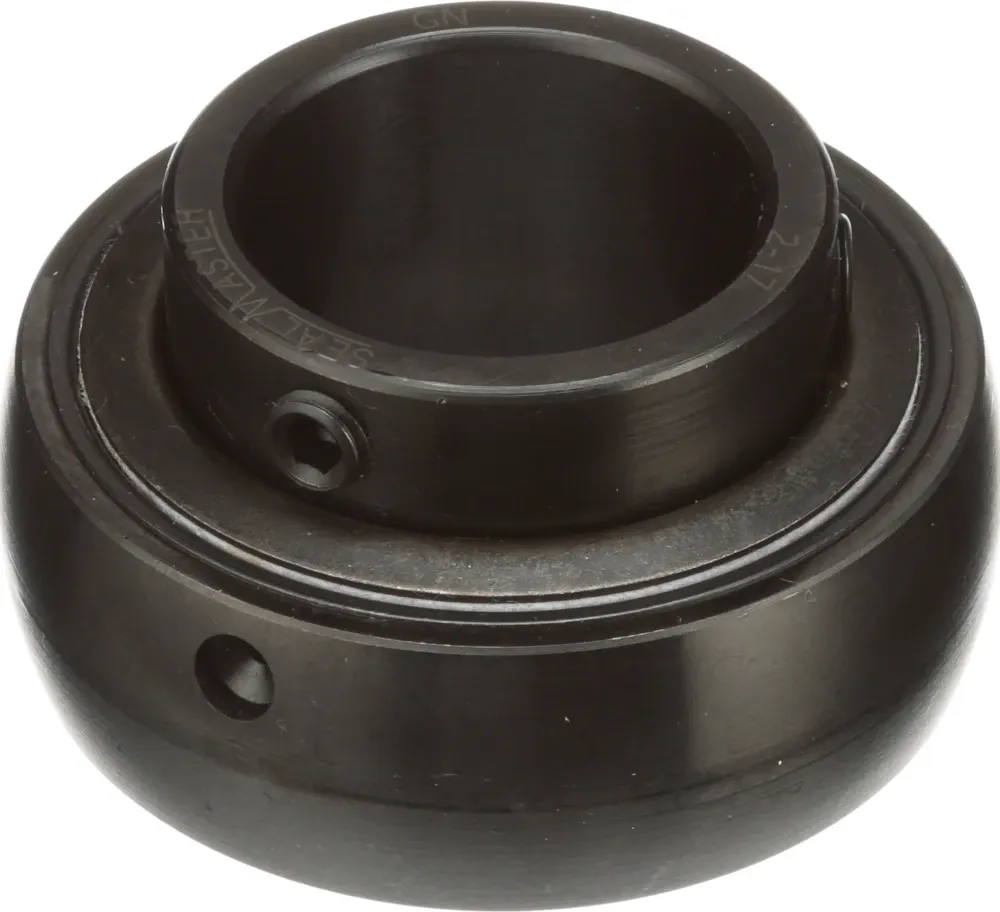

SEALMASTER 2-37C Insert Bearing, 3.43 Inch Bore, 3.375 Inch Length Thru Bore, 1.93 Inch Outer Race Width
Item: BE2LLDModel: 2-37C
7 In Stock
Ships within 2 days via
€1,081.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bore Shape | Straight |
| Cage Material | Brass |
| Centerline To Front Face | 2.031" |
| Duty Series | Standard |
| Dynamic Load Capacity | 18681 lbs. |
| Dynamic Radial Load Capacity | 18681 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 4" |
| Housing Type | Insert Only |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 3 3/8" |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Inside Dia. | 3 7/16" |
| Inside Ring Outside Dia. | 4.156" |
| Internal Clearance | Standard |
| Length | 6" |
| Locking Device | Single Set Screw |
| Locking Type | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 250°F |
| Max. Speed | 1850 RPM |
| Measure Units | Imperial |
| Misalignment Capability | ±2° Misalignment Static Only |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Race Profile | Spherical |
| Outer Race Width | 1 15/16" |
| Outer Ring Land Profile | Standard |
| Outside Race Outside Dia. | 5.9055" |
| Overall Width | 3 3/8" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radius | 3/25" |
| Retainer Type | Brass |
| Rolling Element | Ball |
| Seal Flinger | No |
| Seal Type | Single Lip Contact |
| Set Screw Thread Size | 7/16"-20 |
| Shaft Size | 3 7/16" |
| Static Radial Load Capacity | 14496 lbs. |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 4.19 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
