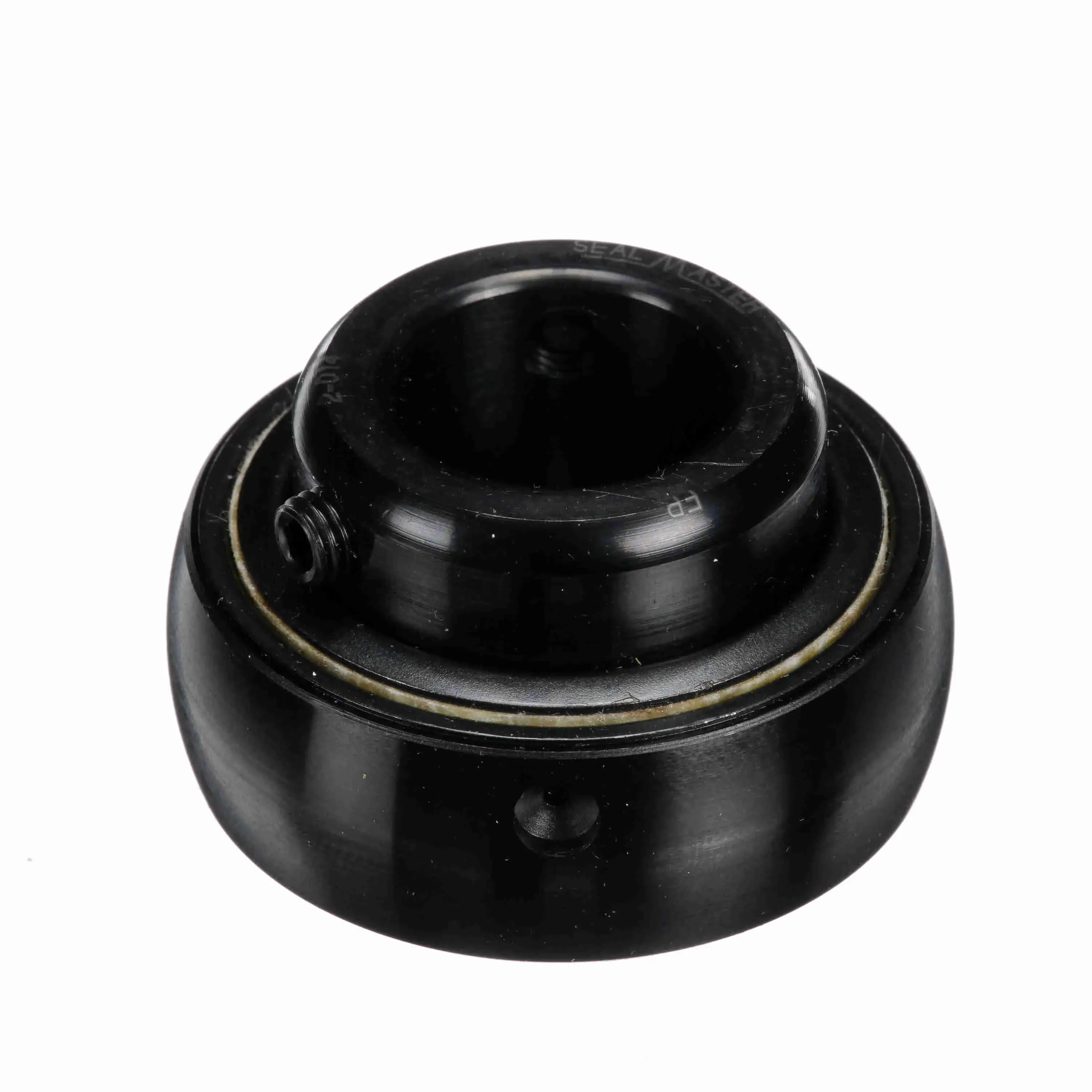

SEALMASTER 2-014 700012 Insert Bearing, 7/8 Inch Bore, 2 3/64 Inch OD, 0.688 Inch Outer Ring Wide
Get it by Friday, Feb 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€237.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Abec Rating | 1 |
| Ability To Relubricate | Yes |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | 2-014 |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Shape | Spherical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 7/8" |
| Bore Diameter | 7/8" |
| Bore Diameter Tolerance | -0.0005" to 0" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 0.813" |
| Closure | Double Sealed |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 2801 lbs. |
| End Cap | No |
| Features | 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Inner Ring With 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only |
| Finish | Black Oxide |
| Fixed Vs. Expansion | No |
| For Environment | Highly Dusty And Dirty |
| Housing Type | Insert Only |
| Htc | 8482.10.5048 |
| Includes | Set Screws |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1 3/8" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 1 3/8" |
| Inner Ring Width | 1.38" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Load Direction | Radial |
| Locking Type | Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 6350 RPM |
| Maximum Temperature | 220°F |
| Measure Units | Inch |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 2.047" |
| Outer Race Profile | Spherical |
| Outer Race Width | 0.688" |
| Outer Ring Land Profile | Standard |
| Outer Ring Width | 0.688" |
| Outside Diameter | 2 3/64" |
| Overall Width | 1 3/8" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 1651 lbs. |
| Radius | 1/25" |
| Retainer Type | Land Riding Retainer |
| Ring End To Center Width | 0.813" |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element | Ball Bearing |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Contact |
| Set Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Set Screws |
| Standards | Iso Certified 100-220 |
| Static Radial Load Capacity | 1651 lbf. |
| Type Of Seal | Felt Labyrinth Seal |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 3.66 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 6.05 |
| Country of Origin | MX |
