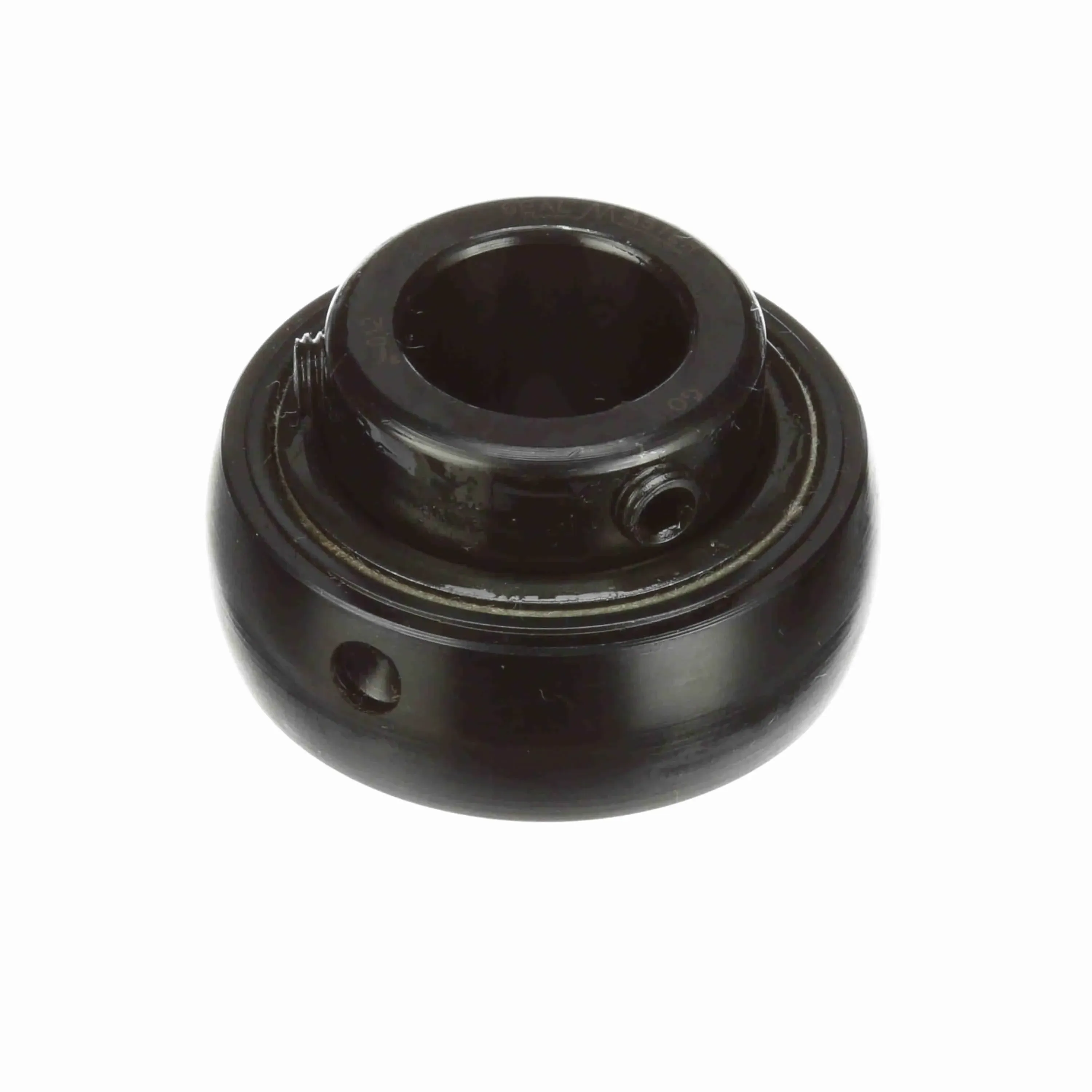

SEALMASTER 2-012 700009 Insert Bearing, 3/4 Inch Bore, 1 27/32 Inch OD, 0.625 Inch Outer Ring Wide
Item: BD6LVPModel: 2-012Cross Ref: 44A608 / 700009
7 In Stock
Ships within 2 days via
10.00% off
€127.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Abec Rating | 1 |
| Ability To Relubricate | Yes |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | 2-012 |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Shape | Spherical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 3/4" |
| Bore Diameter | 3/4" |
| Bore Diameter Tolerance | -0.0005" to 0" |
| Bore Shape | Straight |
| Centerline To Front Face | 0.719" |
| Closure | Double Sealed |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Load Capacity | 2611 lbs. |
| Dynamic Radial Load Capacity | 2611 lbf. |
| End Cap | No |
| Features | 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Inner Ring With 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only |
| Finish | Black Oxide |
| Fixed Vs. Expansion | No |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Height | 2.38" |
| Housing Type | Insert Only |
| Htc | 8482.10.5048 |
| I.d. | 3/4" |
| Includes | Set Screws |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Dia. | 1.188" |
| Inner Ring Outside Diameter | 1.188" |
| Inner Ring Width | 1.22" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Length | 2.38" |
| Load Direction | Radial |
| Locking Device | Single Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 7300 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Outer Race Od | 1.85" |
| Outer Race Outside Dia. | 1.8504" |
| Outer Race Profile | Spherical |
| Outer Race Width | 5/8" |
| Outer Ring Land Profile | Standard |
| Outer Ring Width | 0.625" |
| Outside Diameter | 1 27/32" |
| Overall Width | 1.219" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 1444 lbf. |
| Radius | 1/25" |
| Ring End To Center Width | 0.719" |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Set Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Set Screws |
| Shaft Size | 3/4" |
| Standards | Iso Certified 100-220 |
| Static Radial Load Capacity | 1444 lbf. |
| Type Of Seal | Felt Labyrinth Seal |
| Width | 1 11/25" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 3.66 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 6.05 |
| Country of Origin | MX |
