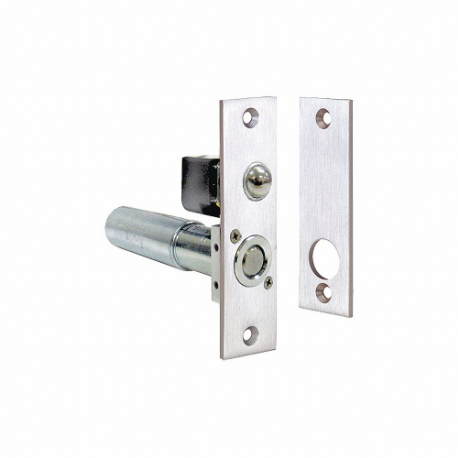

SDC 160IV Mortise Bolt Lock, Mortise Bolt, Electromagnetic or Manual, 12/24V DC
Item: CU2KUDModel: 160IVCross Ref: 45LY02
7 In Stock
Ships within 2 days via
€385.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lock |
| Ada Compliant | No |
| Amps Draw @ 12v | 900 mA |
| Amps Draw @ 24v | 450 mA |
| Case Depth | 2 3/4" |
| Case Height | 1 1/4" |
| Case Width | 1/4" |
| Features | Adjustable Auto Relock Switch And Bolt Assembly, Failsafe Auto Relock Switch Keeps Bolt Retracted When Door Open Door Locked When Closed |
| Finish | Satin Aluminum, Clear Anodized |
| For Use With | Access Control |
| Hand Orientation | Non Handed |
| Included | Mounting Hardware |
| Included Core | No |
| Included Hardware | Hardware Included |
| Input Voltage | 12/24V DC |
| Inside Locking Access | Coreless |
| Key Type | Not Keyed |
| Ligature Resistance | Not Ligature Resistant |
| Lock Body Depth | 2 3/4" |
| Lock Body Length | 1 1/4" |
| Lock Body Width | 1/4" |
| Lockset Type | Electrical |
| Opening Action | Electromagnetic, Manual |
| Options Included | Dual Voltage |
| Outside Locking Access | Coreless |
| Product Type | Mortise Lockset |
| Properties | Adjustable |
| Release Delay | Instantaneous |
| Strike Plate Thickness | 1/8" |
| Strike Plate Width | 1 1/2" |
| Type | Mortise Bolt |
| Voltage | 12/24V DC |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Type | Opening Action | Material | Release Delay | Lock Body Width | Lock Body Depth | Holding Force | Armature Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1511VL | Magnetic Lock | Electromagnetic, Manual | - | Instantaneous | - | - | 1650 lbs. | - | €751.45 | |
 |
1512VD2 | Magnetic Lock | Electromagnetic | Aluminum | Instantaneous | 11" | 1 5/8" | 1650 lbs. | 7 3/8" | €1,605.21 | |
 |
350V | Magnetic Lock | Electromagnetic | Aluminum | Instantaneous | 12 1/2" | 1 11/16" | 1200 lbs. | 10 1/8" | €689.62 | |
|
1511VDB | Magnetic Lock | Electromagnetic | Aluminum | Instantaneous | 11" | 1 5/8" | 1650 lbs. | 7 3/8" | €906.69 | |
|
1511VD | Magnetic Lock | Electromagnetic | Aluminum | Instantaneous | 11" | 1 5/8" | 1650 lbs. | 7 3/8" | €791.49 | |
 |
1561ITCM | Shear Alignment | Electromagnetic | Aluminum | Instantaneous | 8" | 1 5/8" | - | 1 3/8" | €1,217.71 | |
|
1561TJV | Shear Alignment | - | Aluminum | Instantaneous | 8" | 1 5/8" | 2000 lbs. | 1 3/8" | €1,771.20 |
