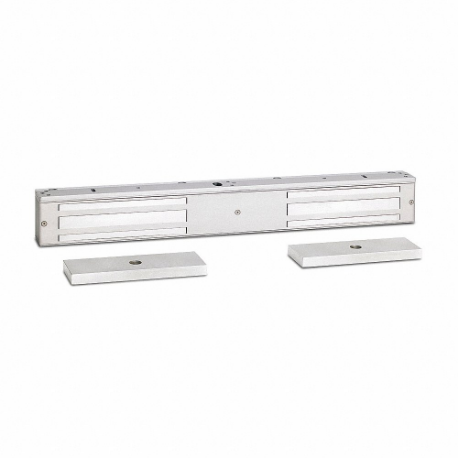

SDC 1512VD2B2 Electromagnetic Lock, Magnetic Lock, Electromagnetic Or Manual, 12/24VDC, 1.34A, 700Ma
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,537.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electromagnetic Lock |
| Amp Draw @ 24v | 700 mA |
| Armature Length | 7 3/8" |
| Armature Width | 5/8" |
| Current @ 12v | 1.34 mA |
| Current @ 24v | 700 mA |
| Features | Door Position Switch And Magnetic Bond Sensor |
| Finish | Aluminum |
| For Use With | Access Control |
| Holding Force | 1650 lbs. |
| Includes | Mounting Hardware |
| Includes Hardware | Hardware Included |
| Input Voltage | 12/24V DC |
| Lock Body Depth | 1 5/8" |
| Lock Body Width | 11" |
| Material | Aluminum |
| Opening Action | Electromagnetic |
| Options Included | Dual Voltage |
| Overall Height | 2 3/4" |
| Overall Length | 22" |
| Overall Width | 1 9/16" |
| Properties | Locking |
| Release Delay | Instantaneous |
| Type | Magnetic Lock |
Shipping Info:
| Ship weight (kg) | 9.68 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Type | Opening Action | Material | Amp Draw @ 24v | Release Delay | Lock Body Width | Lock Body Depth | Holding Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

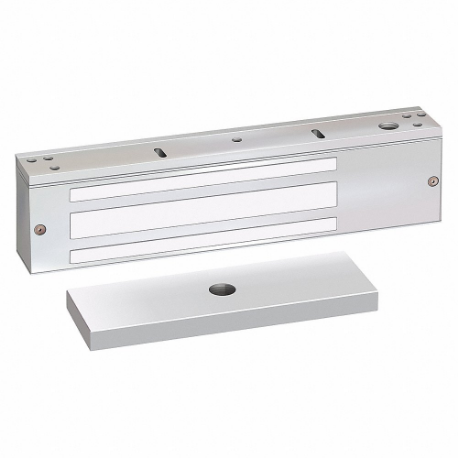

1511VL | Magnetic Lock | Electromagnetic, Manual | - | - | Instantaneous | - | - | 1650 lbs. | €751.45 | |
|
1512VD2 | Magnetic Lock | Electromagnetic | Aluminum | 700 mA | Instantaneous | 11" | 1 5/8" | 1650 lbs. | €1,605.21 | |
 |

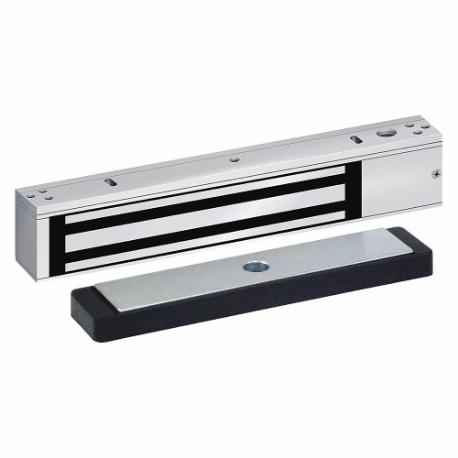

350V | Magnetic Lock | Electromagnetic | Aluminum | 309 mA | Instantaneous | 12 1/2" | 1 11/16" | 1200 lbs. | €689.62 | |
|
1511VDB | Magnetic Lock | Electromagnetic | Aluminum | - | Instantaneous | 11" | 1 5/8" | 1650 lbs. | €906.69 | |
|
1511VD | Magnetic Lock | Electromagnetic | Aluminum | - | Instantaneous | 11" | 1 5/8" | 1650 lbs. | €791.49 | |
 |

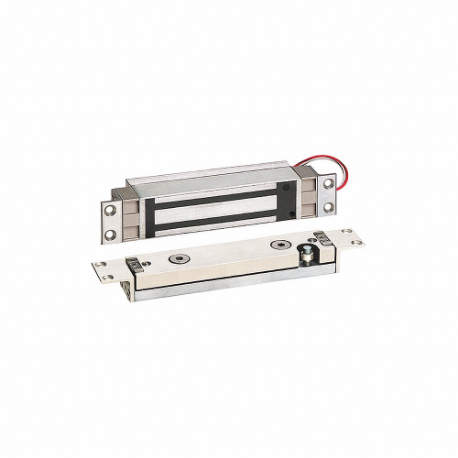

1561ITCM | Shear Alignment | Electromagnetic | Aluminum | 350 mA | Instantaneous | 8" | 1 5/8" | - | €1,217.71 | |
|
1561TJV | Shear Alignment | - | Aluminum | 350 mA | Instantaneous | 8" | 1 5/8" | 2000 lbs. | €1,771.20 |
