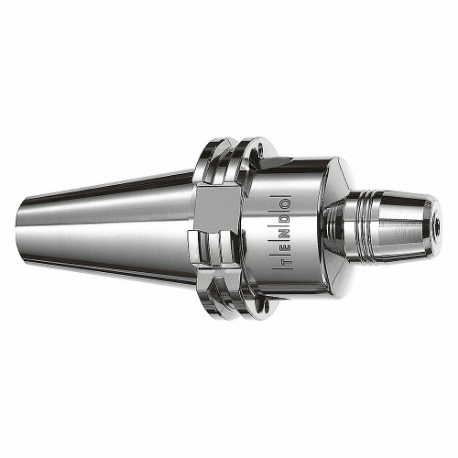

SCHUNK 0205664 Hydraulic Chuck, Taper Shank, BT 30 Taper Size, 1/2 Inch Hole Dia, 1/2 Inch Nose Dia
Item: CU2FEKModel: 0205664Cross Ref: 34XA49
7 In Stock
Ships within 2 days via
10.00% off
€489.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chuck |
| Balanced To Rpm | 25000 RPM |
| Balancing | G 2.5 @ 25000 RPM |
| Compatible Product Type | Hydraulic Tools |
| Coolant Fed | Coolant Through |
| Features | Minimum Torque: 95 Nm, Run-Out Accuracy: Less Than Or Equal To 0.003 mm At 2.5 x D, Tool Shank Quality H6 |
| Hole Dia. | 1/2" |
| Mounting Length | 56.2 mm |
| Nose Dia. | 1/2" |
| Nose Diameter | 32 mm |
| Projection | 4" |
| Projection Length | 101.6 mm |
| Shank Diameter | 32 mm |
| Shank Type | Taper |
| Taper Size | JIS-BT30 |
| Tool Depth | 46 mm |
| Type | Hydraulic |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
