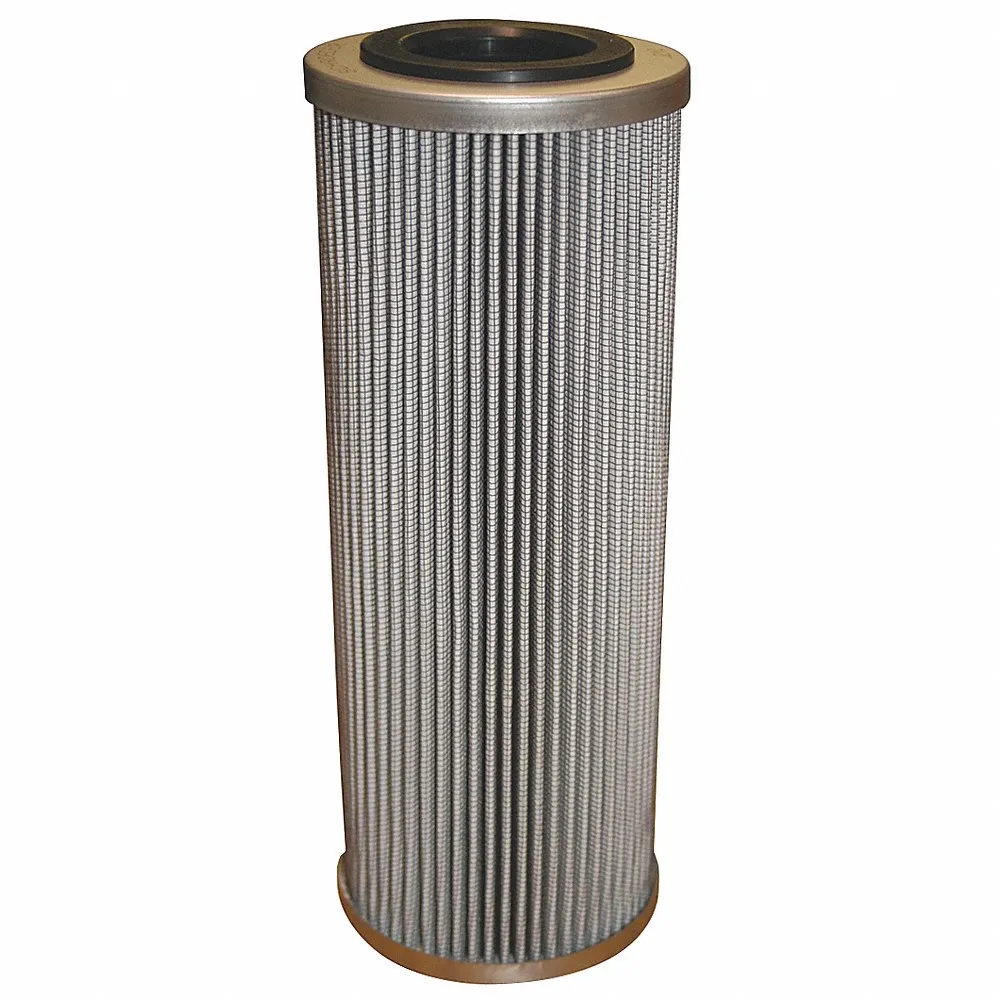

SCHROEDER JZ10 Hydraulic Filter Element, 935137, JZ10, HC9735FKS9H, 5.02.09D05BN, Fiberglass
Item: CU2EZDModel: JZ10Cross Ref: 52YR65
7 In Stock
Ships within 2 days via
10.00% off
€94.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Filter Element |
| Collapse Rating | 150 psid |
| Filter Media | Microglass |
| Filter Media - Filters | Fiberglass |
| For Iso Cleanliness Code | 1000 |
| For Use With | Hydraulic Fluid |
| Hydac Interchange | 5.02.09D05BN |
| Max. Pressure | 150 psi |
| Micron Rating | 10 µm |
| Pall Interchange | HC9735FKS9H |
| Parker Interchange | 935137 |
| Primary Filter Removes | ContamiNaNts |
| Schroeder Interchange | JZ10 |
| Seal | Nitrile |
| Seal Material | Nitrile |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Micron Rating | Max. Pressure | Filter Media | Parker Interchange | Seal Material | Primary Filter Removes | Collapse Rating | Schroeder Interchange | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SBF-1050-5Z10V | 10 µm | 150 psi | Microglass | 922624 | Nitrile | ContamiNaNts | 150 psid | SBF-1050-5Z10V | €60.25 | |
 |
SBF-1001-9Z25B | 25 µm | 150 psi | Microglass | 924448 | Nitrile | ContamiNaNts | 150 psid | SBF-1001-9Z25B | €96.52 | |
 |
SBF-9020-8Z10V | 10 µm | 150 psi | Microglass | 925394 | Nitrile | ContamiNaNts | 300 psid | SBF-9020-8Z10V | €81.93 | |
 |
SBF-9020-4Z3B | 3 µm | 150 psi | Microglass | 925582Q | Nitrile | ContamiNaNts | 300 psid | SBF-9020-4Z3B | €76.02 | |
 |
SBF-9020-8Z3B | 3 µm | 150 psi | Microglass | 925602Q | Nitrile | ContamiNaNts | 300 psid | SBF-9020-8Z3B | €92.96 | |
 |
K25 | 25 µm | 150 psi | Cellulose | 925773 | Nitrile | ContamiNaNts | 150 psid | K25 | €37.00 | |
 |
KK3 | 3 µm | 150 psi | Cellulose | 925791 | Nitrile | ContamiNaNts | 150 psid | KK3 | €93.76 |
