SCHNEIDER ELECTRIC ZB5RTA1 Push Button with Transmitter White 22mm
Item: AF6FYKModel: ZB5RTA1Cross Ref: 12Z276
7 In Stock
Ships within 2 days via
10.00% off
€178.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button with Transmitter |
| Acquisition Time | 2 ms |
| Action | Momentary |
| Action Type | Momentary |
| Antenna Type | Omnidirectional |
| Cad Overall Depth | 43 mm |
| Cad Overall Height | 41.5 mm |
| Cad Overall Width | 30 mm |
| Color | White |
| Components Included | Transmitter |
| Embedding Depth | 42 mm |
| Emission Power | 3 mW |
| Fixing Collar Material | Plastic |
| Head Material | Plastic |
| Head/lens Color | White |
| Height | 1.3" |
| Ip Rating | IP30 |
| Legend Markings | No Legend |
| Length | 2.05" |
| Length (straight Wireway) | 2.05" |
| Manufacturer Warranty Length | 18 Months |
| Material | Plastic |
| Max Power Consumption In W | 1 mW |
| Mechanical Operating Durability | 1000000 |
| Mounting Diameter | 22 mm |
| Nema Enclosure Rating | 12 |
| Number Of Channels | 16 |
| Number Of Operators | 1 |
| Number Of Push Buttons | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.05" |
| Overall Height | 1.62" |
| Overall Width | 1.17" |
| Panel Mounting Hole Diameter | 22 mm |
| Push Button Style | Flush |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | XB5R Series |
| Shape Of Signaling Unit Head | Round |
| Transmission Frequency | 2405 MHz |
| Type Of Operator | Flush Push Button |
| Width | 3.39" |
| Wireless Network Interface | Zigbee 2.4 Ghz (Ieee 802.15.4) |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 5.21 |
| Ship width (cm) | 8.61 |
| HS code | 8531909000 |
| Country of Origin | FR |
Product Variants
| Product | Model | Material | Legend Markings | Ip Rating | Type Of Operator | Height | Action Type | Head Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5RFB01 | Plastic | No Legend | IP30 | Flush Push Button | 3.58" | Momentary | Plastic | Black, Ivory | €312.63 | |
 |
XB4RFB01 | Metal | No Legend | IP30 | Flush Push Button | 3.58" | Momentary | Metal | Black | €311.29 | |
 |
XB5RFA02 | Plastic | No Legend | IP30 | Flush Push Button | 3.58" | Momentary/Maintained | Plastic | Multi Color | €700.88 | |
 |
XB4RFA02 | Metal | No Legend | IP30 | Flush Push Button | 3.58" | Momentary/Maintained | Metal | Universal | €692.46 | |
 |
XB5RMB03 | Plastic | No Legend | IP30 | Flush Push Button | 3.58" | Momentary/Maintained | Plastic | Black | €423.85 | |
 |
XB5RMA04 | Plastic | No Legend | IP30 | Flush Push Button | 3.58" | Momentary/Maintained | Plastic | Universal | €795.40 | |
 |

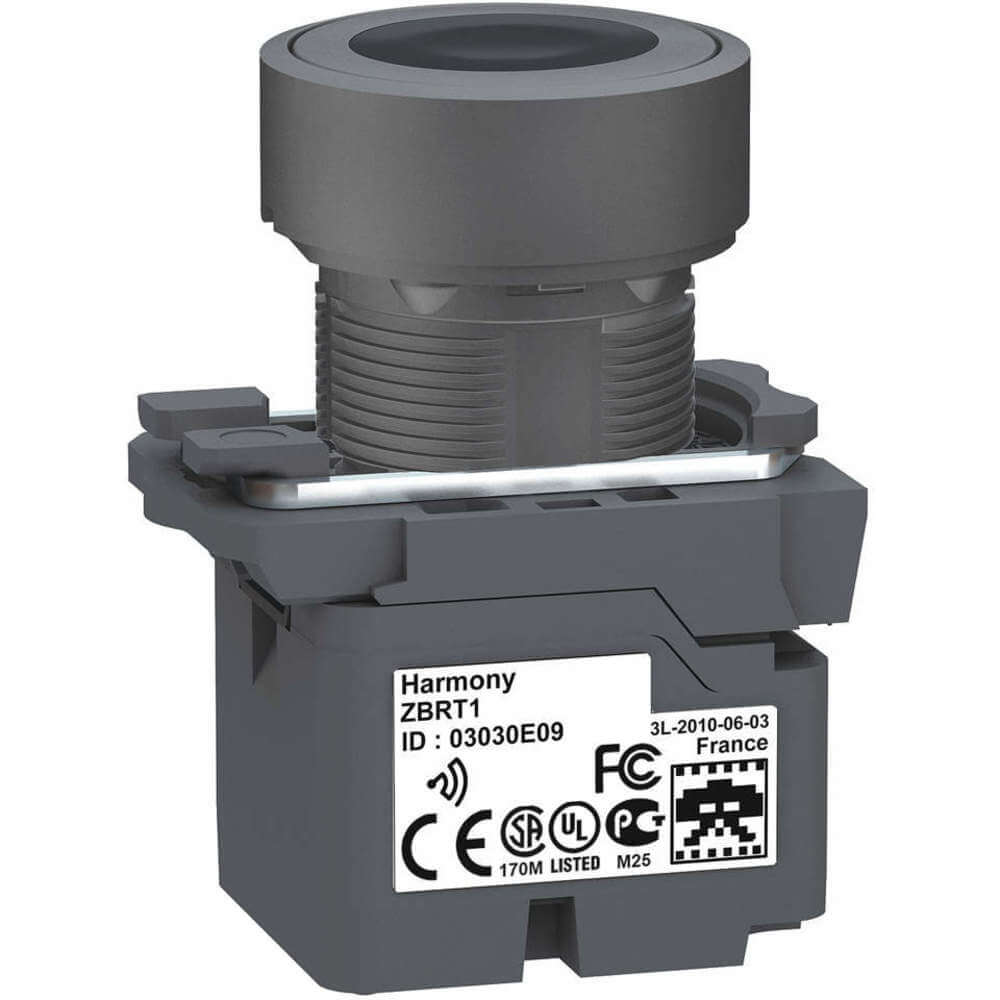

ZB5RTA2 | Plastic | No Legend | IP30 | Flush Push Button | 1.3" | Momentary | Plastic | Black | €204.15 |
