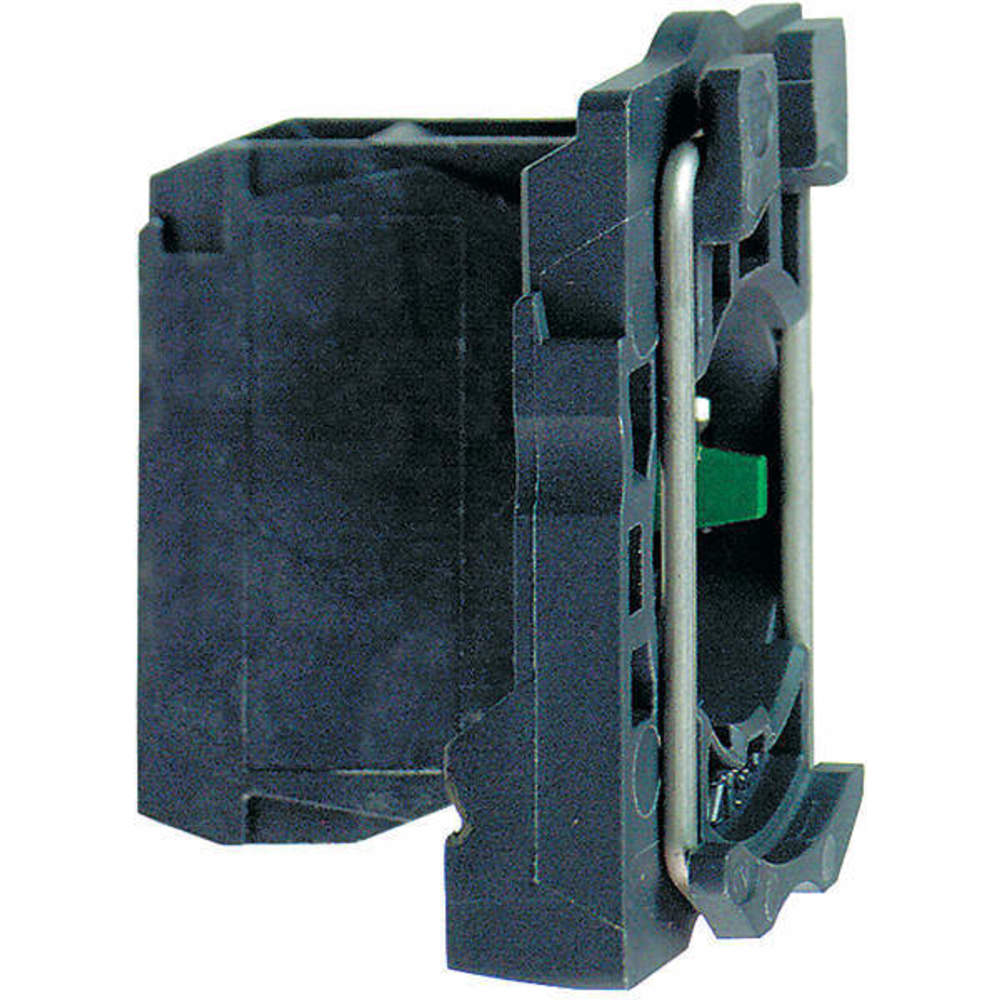

SCHNEIDER ELECTRIC ZB5AZ104 Contact Block 2nc Slow Break 22mm
Item: AG7FJXModel: ZB5AZ104Cross Ref: 6HX33
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contact Block |
| Ac Contact Rating | 1.2A @600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action Type | Momentary |
| Application | Operator |
| Cad Overall Depth | 32 mm |
| Cad Overall Height | 42 mm |
| Cad Overall Width | 30 mm |
| Color | Black |
| Compatible Operator | Push Button |
| Compatible With Series | ZB5 Series |
| Contact Block Type | Single |
| Contact Form | 2NC |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Fixing Collar Material | Plastic |
| Includes Mounting Block | Mounting Block Included |
| Manufacturer Warranty Length | 18 Months |
| Mounting Location | Rear |
| Nema Contact Rating Designation | A600/Q600 |
| Panel Mounting Hole Diameter | 22 mm |
| Switch Action | Momentary |
| Terminal Connection Type | Screw Clamp Terminals |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 4.32 |
| Ship width (cm) | 3.05 |
| HS code | 8536698000 |
| Country of Origin | FR |
Product Variants
| Product | Model | Color | Contact Rating | Nema Contact Rating Designation | Contact Form | Terminal Connection Type | Action Type | Application | Type Of Operator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BZ1015 | Black | 10A @ 600V AC | A600/Q600 | 1NO | Spring Clamp Terminals | Momentary | Operator | Momentary | €44.78 | |
|
ZB4BZ1025 | Black | 10A @ 600V AC | A600/Q600 | 1NC | Spring Clamp Terminals | Momentary | Operator | Momentary | €45.05 | |
 |
9001KA51 | Black | 10A @ 250V AC | C300/Q150 | 1NO/1NC | Screw Clamp Terminals | Momentary/Break Before Make | Finger Safe Operator | - | €257.14 | |
 |
9001KA53 | Black | 10A @ 250V AC | C300/Q150 | 1NC | Screw Clamp Terminals | Momentary | Finger Safe Operator | - | €189.58 | |
 |
ZB6E1B | Black | 6A @ 250V | B300/R300 | 1NO | Faster Connector | Momentary | Operator | - | €13.47 | |
|
ZB6E2B | Black | 6A @ 250V | B300/R300 | 1NC | Faster Connector | Momentary | Operator | - | €14.13 | |
 |
9001KA5 | Red | 10A @ 250V AC | A600/Q600 | 1NC | Screw Clamp Terminals | Momentary | Finger Safe Operator | Finger Proof Shroud | €40.09 |
