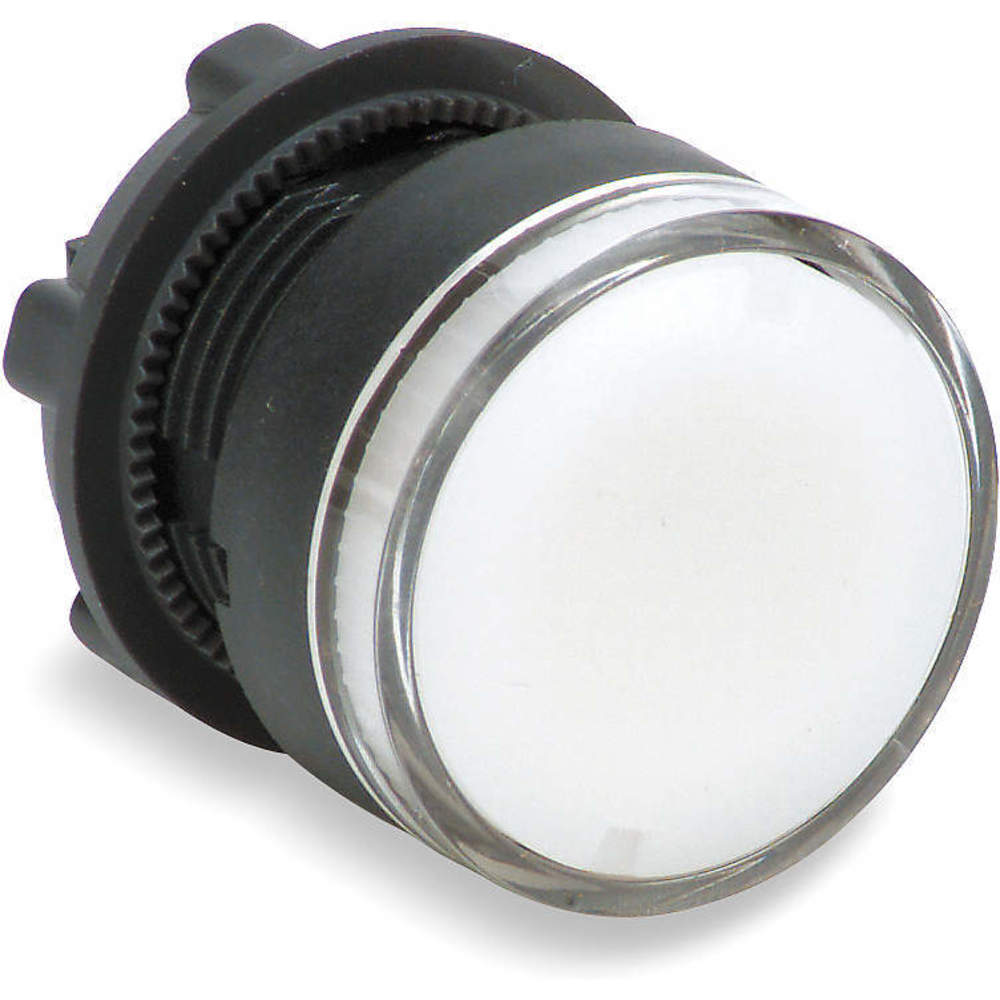

SCHNEIDER ELECTRIC ZB5AW31 Illuminated Push Button Operator 22mm White
Item: AG7FHYModel: ZB5AW31Cross Ref: 6HW94
7 In Stock
Ships within 2 days via
13.00% off
€24.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Push Button |
| Action | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Cad Overall Depth | 32 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Cap/operator Or Lens Colour | White |
| Color | White |
| Features | Snap Fit Assembly, Visually Distinct At A Distance, Withstands Harsh Environments |
| Head Material | Plastic |
| Head/lens Color | White |
| Ip Rating | IP66 |
| Lamp Bulb Type | No Lamp Module Included |
| Lamp Module Type | No Lamp Module Included |
| Lamp Module Voltage | Module Not Included |
| Lamp Type | Incandescent, Neon or LED |
| Lamp Voltage | Dependent On Module Used |
| Legend | No Legend |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 22 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 13, NEMA 4X |
| No. Of Indicator Lights | 1 |
| No. Of Operators | 1 |
| Operator Illumination | Illuminated |
| Operator Material | Plastic |
| Overall Depth | 1.26" |
| Overall Height | 1.14" |
| Overall Width | 1.14" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Datasheet | schneider-electric-zb5aw31.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | Flush Button |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 3.05 |
| HS code | 8536509031 |
| Country of Origin | CZ |
Documentation:
Product Variants
| Product | Model | Head Material | Lamp Module Type | Operator Material | Bezel Material | Color | Action | Basic Material | Lamp Module Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB5CW113 | Plastic | No Lamp Module Included | Plastic | Plastic | White | Momentary | Plastic | Module Not Included | - | RFQ
|
 |
ZB5CW343 | Plastic | No Lamp Module Included | Plastic | Plastic | Red | Momentary | Plastic | Module Not Included | €38.08 | |
 |
ZB5AW15 | Plastic | No Lamp Module Included | Plastic | Plastic | Yellow | Momentary | Plastic | Module Not Included | €19.23 | |
 |
ZB5CW333 | Plastic | No Lamp Module Included | Plastic | Plastic | Green | Momentary | Plastic | Module Not Included | €37.05 | |
 |
ZB5CW313 | Plastic | No Lamp Module Included | Plastic | Plastic | White | Momentary | Plastic | Module Not Included | €34.84 | |
 |
ZB4BW613 | Metal | No Lamp Module Included | Metal | Metal | Clear | Maintained | Metal | Module Not Included | €67.27 | |
 |
ZB4BW633 | Metal | No Lamp Module Included | Metal | Metal | Green | Maintained | Metal | Module Not Included | €61.88 |
