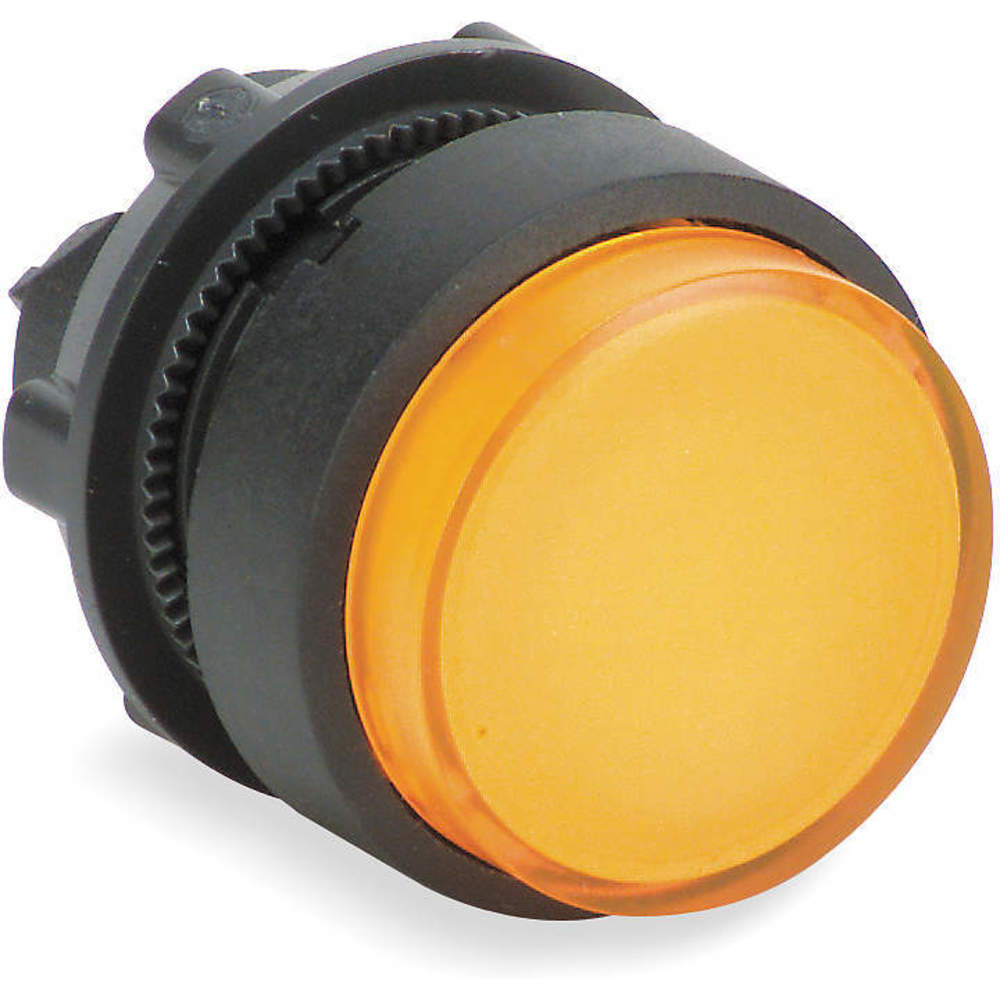

SCHNEIDER ELECTRIC ZB5AW153 Illuminated Push Button Operator 22mm Yellow
Item: AG7FHUModel: ZB5AW153Cross Ref: 6HW90
7 In Stock
Ships within 2 days via
10.00% off
€22.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Push Button |
| Action | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Cad Overall Depth | 33 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Cap/operator Or Lens Colour | Orange |
| Color | Yellow |
| Features | Snap Fit Assembly, Visually Distinct At A Distance, Withstands Harsh Environments |
| Head Material | Plastic |
| Head/lens Color | Orange |
| Ip Rating | IP66 |
| Lamp Bulb Type | No Lamp Module Included |
| Lamp Module Type | No Lamp Module Included |
| Lamp Module Voltage | Module Not Included |
| Lamp Type | LED |
| Lamp Voltage | Dependent On Module Used |
| Legend | No Legend |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 22 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 13, NEMA 4X |
| Number Of Indicator Lights | 1 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Illuminated |
| Operator Material | Plastic |
| Overall Depth | 1.3" |
| Overall Height | 1.14" |
| Overall Width | 1.14" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | Extended Button |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 5.33 |
| Ship width (cm) | 3.3 |
| HS code | 8536509031 |
| Country of Origin | FR |
Product Variants
| Product | Model | Head Material | Lamp Module Type | Basic Material | Ip Rating | Bezel Material | Bezel | Nema Rating | Lamp Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB5CW113 | Plastic | No Lamp Module Included | Plastic | IP66 | Plastic | - | NEMA 13, NEMA 4X | Dependent On Module Used | €52.71 | |
 |
ZB5CW343 | Plastic | No Lamp Module Included | Plastic | IP66 | Plastic | - | NEMA 13, NEMA 4X | Dependent On Module Used | €50.19 | |
 |
ZB5AW15 | Plastic | No Lamp Module Included | Plastic | IP66 | Plastic | - | NEMA 13, NEMA 4X | Dependent On Module Used | €26.24 | |
 |
ZB5CW333 | Plastic | No Lamp Module Included | Plastic | IP66 | Plastic | - | NEMA 13, NEMA 4X | Dependent On Module Used | €51.84 | |
 |
ZB5CW313 | Plastic | No Lamp Module Included | Plastic | IP66 | Plastic | - | NEMA 13, NEMA 4X | Dependent On Module Used | €48.42 | |
 |
ZB4BW613 | Metal | No Lamp Module Included | Metal | IP66 | Metal | Chrome Plated Metal | NEMA 13, NEMA 4X | Dependent On Module Used | €88.64 | |
 |
ZB4BW633 | Metal | No Lamp Module Included | Metal | IP66 | Metal | Chrome Plated Metal | NEMA 13, NEMA 4X | Dependent On Module Used | €86.54 |
