FREE delivery on orders over €150

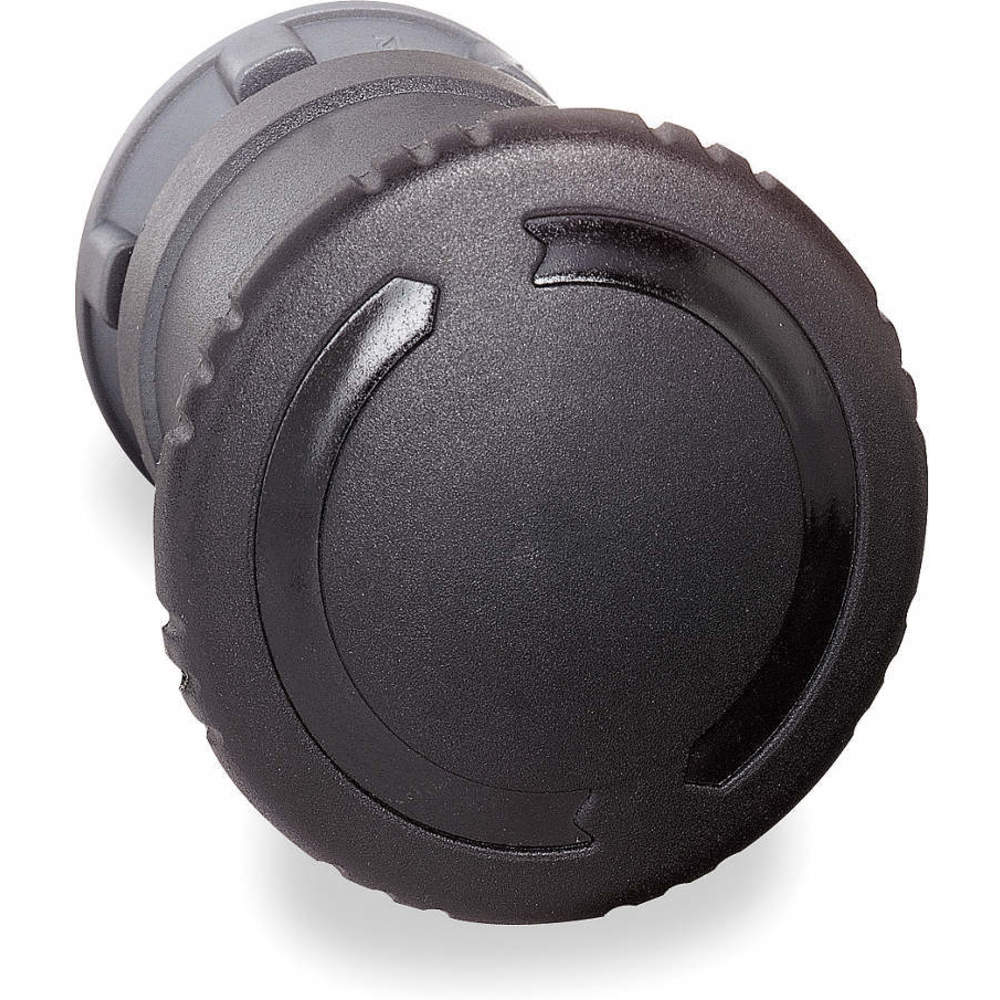

SCHNEIDER ELECTRIC ZB5AS52 Non-illuminated Push Button Operator Black
Item: AG7FGJModel: ZB5AS52Cross Ref: 6HV96
7 In Stock
Ships within 2 days via
10.00% off
€132.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Accessory Group | A |
| Action | Maintained |
| Action Type | Turn To Release |
| Basic Material | Plastic |
| Bezel Material | Double-Insulated Plastic |
| Bezel Material | Plastic |
| Cad Overall Depth | 57 mm |
| Cad Overall Height | 40 mm |
| Cad Overall Width | 40 mm |
| Color | Black |
| Device Presentation | Basic Element |
| Diameter | 40 mm |
| Features | Snap Fit Assembly, Visually Distinct At A Distance, Withstands Harsh Environments |
| Head Material | Plastic |
| Head/lens Color | Black |
| Ip Rating | IP66 |
| Legend | No Legend |
| Maintained Action Release | Twist |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 22 mm |
| Mushroom Head Diameter | 40 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.24" |
| Overall Height | 1.57" |
| Overall Width | 1.57" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 4.06 |
| Ship width (cm) | 4.06 |
| HS code | 3926909980 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Color | Ip Rating | Diameter | Basic Material | Head Material | Nema Rating | Bezel Material | Number Of Operators | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB5AS55 | Yellow | - | 40 mm | Plastic | Plastic | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | Plastic | 1 | €182.45 | |
 |
ZB5AS834 | Red | IP66 | 30 mm | Plastic | Plastic | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | Plastic | 1 | €167.81 | |
 |
ZB5AS42 | Black | IP66 | - | Plastic | Plastic | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | Plastic | 1 | €127.48 | |
 |
ZB5AS62 | Black | IP66 | 60 mm | Plastic | Plastic | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | Plastic | 1 | €208.60 | |
 |
ZB5AS844 | Red | IP66, IP69K | 40 mm | Plastic | Plastic | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | Plastic | 1 | €173.78 |
