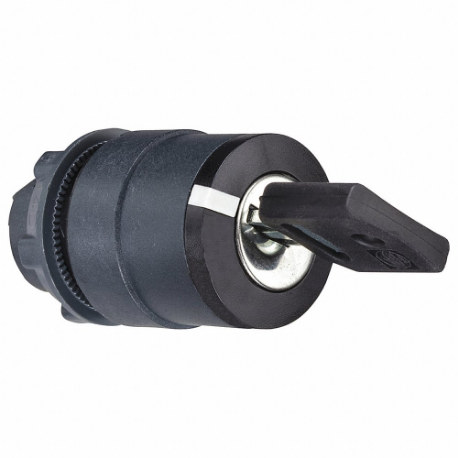

SCHNEIDER ELECTRIC ZB5AG03D Keyed Selector Switch, 3 Position, 22 mm Panel Mounting Size
Item: CU2DPBModel: ZB5AG03DCross Ref: 55WG94
7 In Stock
Ships within 2 days via
€93.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Head |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Cad Overall Depth | 72 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Color | Black |
| Device Presentation | Basic Element |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Key Number | 8D1 |
| Key Removal Position | Center, Left |
| Mounting Dia. | 22 mm |
| No. Of Positions | 3 |
| Panel Mounting Hole Dia. | 22 mm |
| Position | 3 |
| Product Datasheet | schneider-electric-zb5ag03d.pdf |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
| Switch Action | Maintained/Maintained/Maintained |
| Switch Operation @ Position D | No Fourth Position |
| Type Of Operator | Keyed |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Ip Rating | Cam | Switch Operation @ Position C | Switch Operation @ Position B | Switch Operation @ Position A | Key Number | Operator Head Material | Key Removal | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9001KQ11B | - | P | - | - | - | - | Plastic | No Key | €97.49 | |
|
9001KQ14B | - | T | - | - | - | - | Plastic | No Key | €90.82 | |
 |
9001KS52B | IP66 | B | OXXO | OXOX | XOOX | Sin Llave | Plastic | No Key | €110.86 | |
|
9001KS53B | IP66 | C | OXOX | OOOO | XOXO | No Key | Plastic | No Key | €102.76 | |
|
9001KS53FB | IP66 | C | OXOX | OOOO | XOXO | No Key | Plastic | No Key | €102.76 | |
 |
9001KS53K5 | - | C | OXOX | OOOO | XOXO | E10 | Metal | Center | €192.10 | |
 |
9001KS5 | IP65 | No Cam | - | - | - | No Key | No Operator | No Key | €105.35 |
