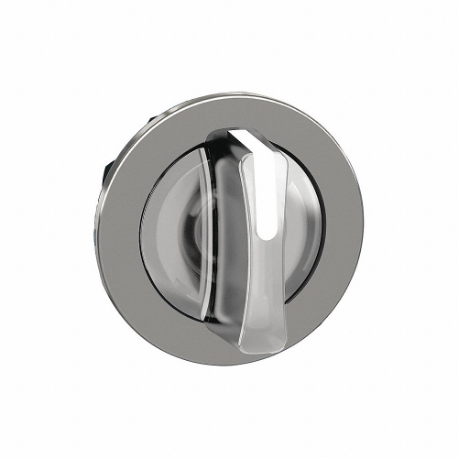

SCHNEIDER ELECTRIC ZB4FK1313 Short-Handled Selector Switch, 30 mm Panel Mount Size, 3 Positions
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€62.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Head |
| Action | Maintained/Maintained/Maintained |
| Basic Material | Metal |
| Bezel Color | Chrome |
| Bezel Finish | Chrome Plated , Metal |
| Cad Overall Depth | 47 mm |
| Cad Overall Height | 36.6 mm |
| Cad Overall Width | 36.6 mm |
| Cam | No Cam Included |
| Color | White |
| Device Presentation | Basic Element |
| Hazardous Location Specification | Not Rated |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Lamp Module Type | Module Not Included |
| Lamp Module Voltage | Module Not Included |
| Lamp Voltage | Dependant On Module Used |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 30.5 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Positions | 3 |
| Operator Head Material | Plastic |
| Operator Illumination | Illuminated |
| Panel Mounting Hole Diameter | 30 mm |
| Position | 3 |
| Product Datasheet | schneider-electric-zb4fk1313.pdf |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Color | White |
| Switch Head Type | Short Lever |
| Type Of Operator | Selector Switch |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Cam | Ip Rating | Number Of Positions | Switch Operation @ Position B | Nema Rating | Switch Operation @ Position C | Switch Operation @ Position A | Lamp Module Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BK1463 | No Cam | IP66, IP67, IP69, IP69K | 2 | XXOO | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 13 | No Third Position | - | Module Not Included | €121.37 | |
 |
ZB4BK1413 | No Cam | IP66, IP67, IP69, IP69K | 2 | XXOO | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 13 | No Third Position | - | Module Not Included | €91.68 | |
 |
ZB4BK1763 | No Cam | IP66, IP67, IP69, IP69K | 3 | OOXX | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 13 | - | XOOX | Module Not Included | €128.37 | |
 |
ZB4BK1863 | No Cam | IP66, IP67, IP69, IP69K | 3 | OOXX | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 13 | - | XOOX | Module Not Included | €117.52 | |
 |
ZB4BK1743 | No Cam | IP66, IP67, IP69, IP69K | 3 | OOXX | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 13 | - | XOOX | Module Not Included | €100.02 | |
 |
ZB4BK1713 | No Cam | IP66, IP67, IP69, IP69K | 3 | OOXX | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 13 | - | XOOX | Module Not Included | €89.20 | |
 |
ZB4BK1813 | No Cam | IP66, IP67, IP69, IP69K | 3 | OOXX | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 13 | - | XOOX | Module Not Included | €97.51 |
