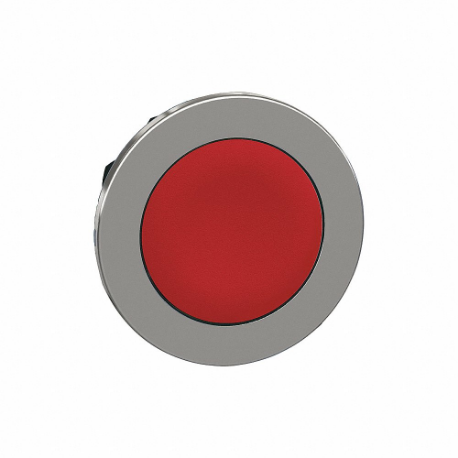

SCHNEIDER ELECTRIC ZB4FH04 Pushbutton Head, 30 mm Size, Maintained Push, Red, Flush Button
Item: CU2CGYModel: ZB4FH04Cross Ref: 55WH83
7 In Stock
Ships within 2 days via
13.00% off
€22.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Head |
| Action | Maintained |
| Action Type | Maintained Push |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Metal |
| Cad Overall Depth | 31 mm |
| Cad Overall Height | 36.6 mm |
| Cad Overall Width | 36.6 mm |
| Color | Red |
| Device Presentation | Basic Element |
| Features | 3-Function Head, Withstands Harsh Environments |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Maintained Action Release | Push |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 30.5 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 1.22" |
| Overall Height | 1 11/25" |
| Overall Width | 1 11/25" |
| Panel Mounting Hole Dia. | 30 mm |
| Product Datasheet | schneider-electric-zb4fh04.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | Flush Button |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Bezel Material | Head Material | Panel Mounting Hole Dia. | Operator Material | Color | Legend | Ip Rating | Product Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BD28 | Die Cast Aluminum | Aluminum, Zinc | 0.87" | - | Black | No Legend | IP69, IP69K | Toggle Switch | €57.97 | |
 |
ZB5AS55 | Plastic | Plastic | - | - | Yellow | No Legend | - | - | €130.48 | |
 |
ZB5AS834 | Plastic | Plastic | 22 mm | Plastic | Red | No Legend | IP66 | Multihead Operators | €120.01 | |
 |
9001KR24RM | Metal | Metal | 30 mm | Metal | Red | No Legend | IP66 | Push Button Operators | €116.98 | |
 |
9001KR25GM | Metal | Metal | 30 mm | Metal | Green | No Legend | IP66 | Push Button Operators | €141.70 | |
 |
9001K15 | Metal | Metal | 30 mm | Metal | Black | No Legend | IP66 | Emergency Stop Push Buttons | €182.88 | |
 |
9001KR131 | Metal | Metal | 30 mm | Metal | No Cap | No Legend | IP66 | Push Button Operators | €196.13 |
