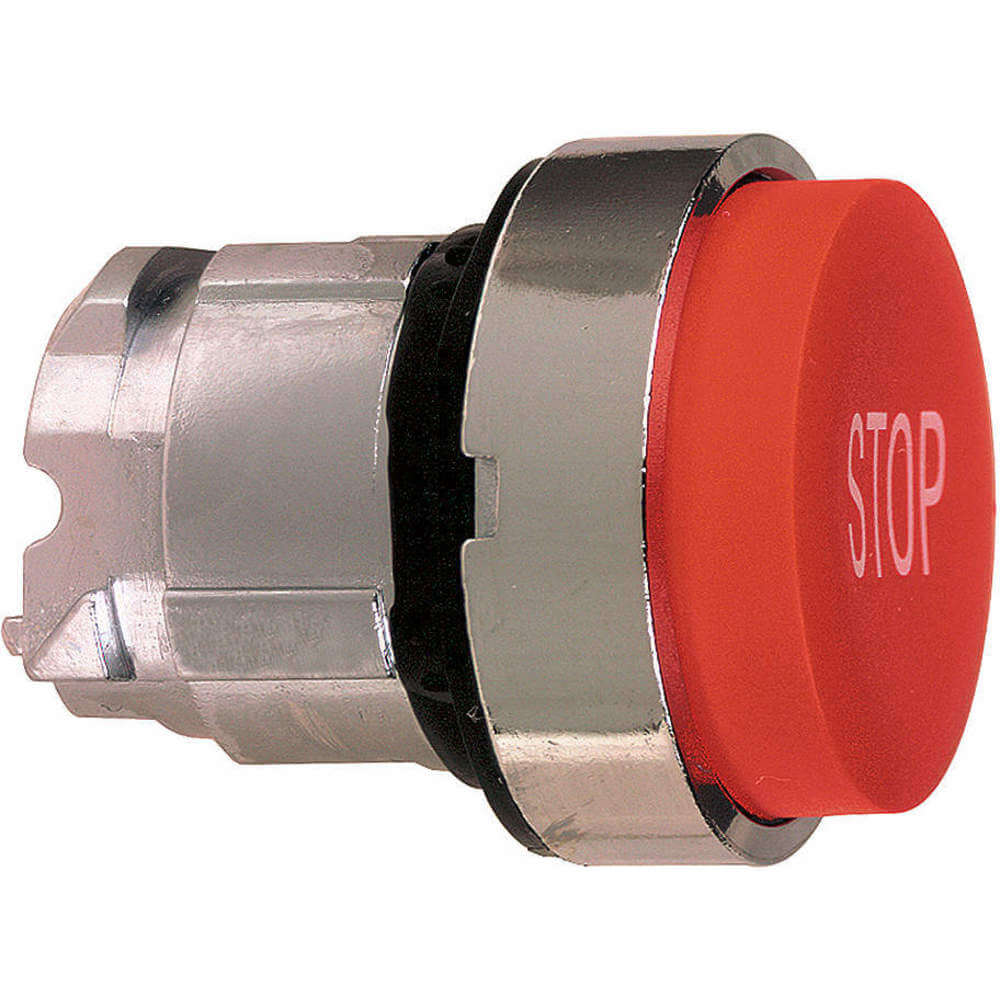

SCHNEIDER ELECTRIC ZB4BL434 Non-illuminated Push Button Operator 22mm Red
Item: AF7GZUModel: ZB4BL434Cross Ref: 21AG28
7 In Stock
Ships within 2 days via
13.00% off
€20.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Metal |
| Bezel Material | Chrome Die Cast Aluminium |
| Cad Overall Depth | 33 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Color | Red |
| Device Presentation | Basic Element |
| Features | Double Head, High Brightness, Visually Distinct At A Distance |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP66 |
| Legend | Stop |
| Legend Color | White |
| Legend/background Color | Red , White, Red |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 22 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 1.3" |
| Overall Height | 1.14" |
| Overall Width | 1.14" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Datasheet | schneider-electric-zb4bl434.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | No Guard |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 3.3 |
| HS code | 8538908060 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Head Material | Bezel Material | Color | Legend | Overall Height | Overall Width | Overall Depth | Push Button Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BPA4 | Metal | Metal | Red | No Legend | 1.18" | 1.18" | 1.46" | Flush | €34.63 | |
 |
ZB4BPA5 | Metal | Metal | Yellow | No Legend | 1.18" | 1.18" | 1.46" | Flush | €34.63 | |
 |
ZB4BPA6 | Metal | Metal | Blue | No Legend | 1.18" | 1.18" | 1.46" | Flush | €34.63 | |
 |
ZB4BPA2 | Aluminum, Zinc | Die Cast Aluminum | Black | No Legend | - | - | - | - | €34.63 | |
|
ZB4BPA3 | Metal | Metal | Green | No Legend | 1.18" | 1.18" | 1.46" | Flush | €34.63 | |
 |
ZB4BA133 | Metal | Metal | White | Start | 1.14" | 1.14" | 1.1" | Flush | €24.00 | |
 |
ZB4BC6 | Metal | Metal | Blue | No Legend | 1.57" | 1.57" | 2.05" | Mushroom Head | €40.21 |
