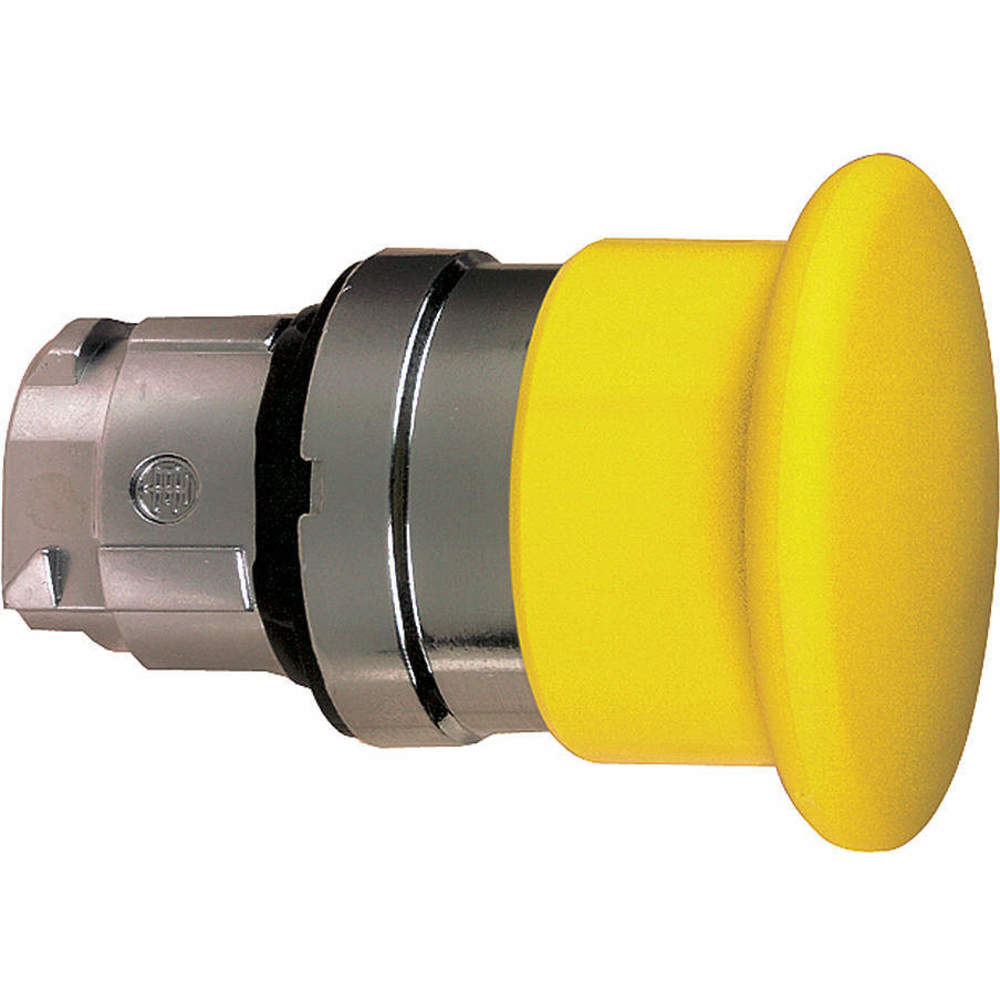

SCHNEIDER ELECTRIC ZB4BC5 Non-illuminated Push Button Operator Yellow
Item: AG6UYXModel: ZB4BC5Cross Ref: 48K761
7 In Stock
Ships within 2 days via
10.00% off
€50.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Metal |
| Bezel Material | Chrome Die Cast Aluminium |
| Cad Overall Depth | 52 mm |
| Cad Overall Height | 40 mm |
| Cad Overall Width | 40 mm |
| Color | Yellow |
| Device Presentation | Basic Element |
| Features | High Brightness, Snap Fit Assembly, Visually Distinct At A Distance |
| Head Material | Metal |
| Head/lens Color | Yellow |
| Ip Rating | IP66 |
| Legend | No Legend |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 22 mm |
| Mushroom Head Diameter | 40 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 2.05" |
| Overall Height | 1.57" |
| Overall Width | 1.57" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 5.59 |
| HS code | 8538908060 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Head Material | Type Of Operator | Color | Legend | Bezel Material | Ip Rating | Diameter | Legend/background Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BPA4 | Metal | Booted | Red | No Legend | Metal | IP66 | - | - | €47.29 | |
 |
ZB4BPA5 | Metal | Booted | Yellow | No Legend | Metal | IP66 | - | - | €47.29 | |
 |
ZB4BPA6 | Metal | Booted | Blue | No Legend | Metal | IP66 | - | - | €47.29 | |
 |
ZB4BPA2 | Aluminum, Zinc | Booted | Black | No Legend | Die Cast Aluminum | - | - | - | €47.29 | |
|
ZB4BPA3 | Metal | Booted | Green | No Legend | Metal | IP66 | - | - | €47.29 | |
 |
ZB4BA133 | Metal | Full Guard | White | Start | Metal | IP66 | - | Black, White | €32.77 | |
 |
ZB4BC6 | Metal | - | Blue | No Legend | Metal | IP66, IP67, IP69, IP69K | 40 mm | - | €56.22 |
